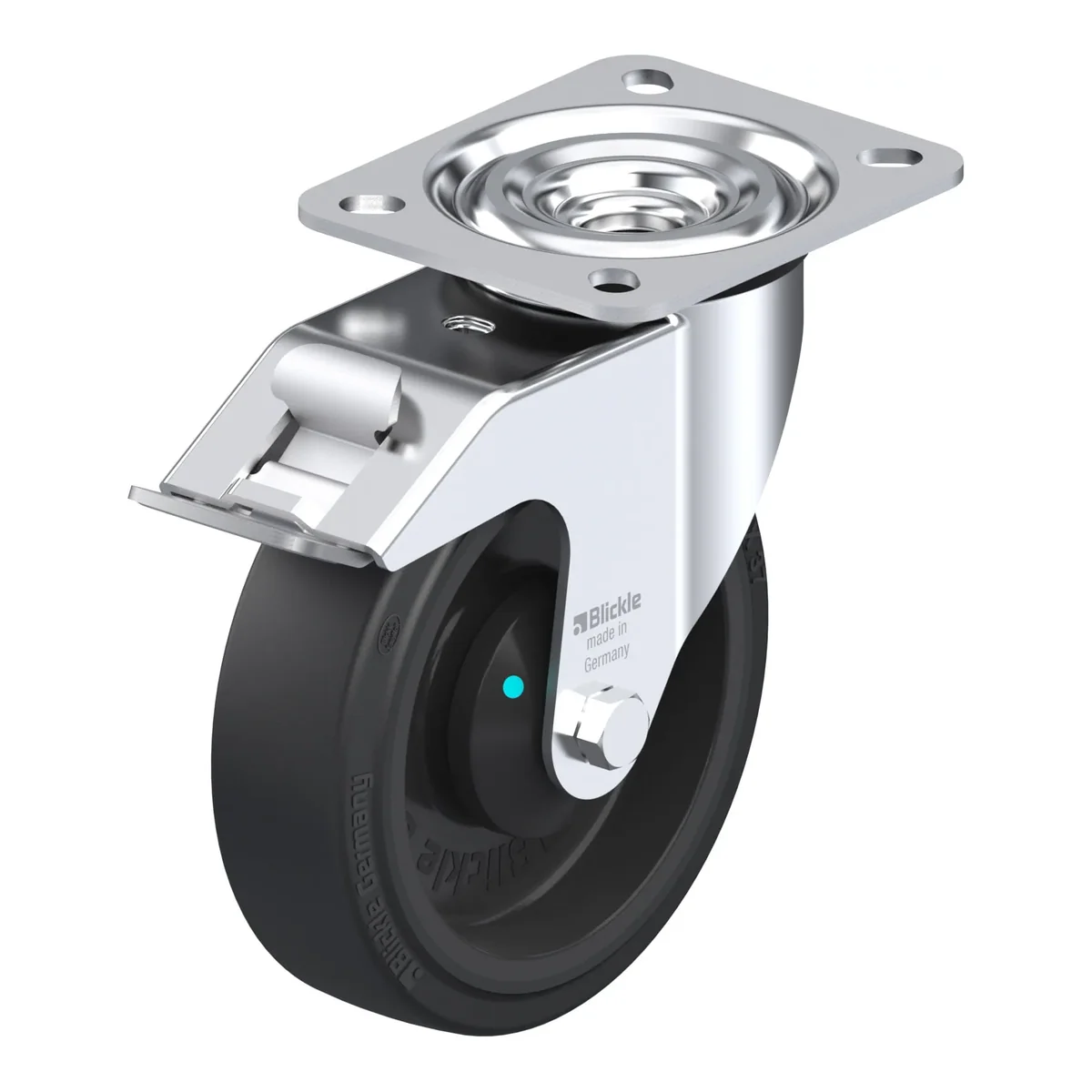

L-POEV 125KAD-FI – okretni točkić Blickle

Šifra 850567

L-POEV 125KAD-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: L-POEV 125KAD-FI je okretni točkić Blickle promjera 125 mm, širine 37 mm, nosivosti 250 kg pri 4 km/h (statički 625 kg). Ukupna visina je 150 mm. Cijena je 79.92 KM s PDV-om.

Pressed steel swivel castor, medium duty design, with top plate fitting, with brake system 'stop-fix', heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, with synthetic thread guard, small, w ith additionals ball bearing seals

79.92 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla850567
EAN4047526168032
Promjer točka125 mm
Širina točka37 mm
Ukupna visina150 mm
Nosivost pri 4 km/h250 kg
Statička nosivost625 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset40 mm

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
  • wheel centre: high-quality nylon 6, impact resistant, colour black

Dodatne karakteristike

  • small thread guard, with additional, ball bearing seal
  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
