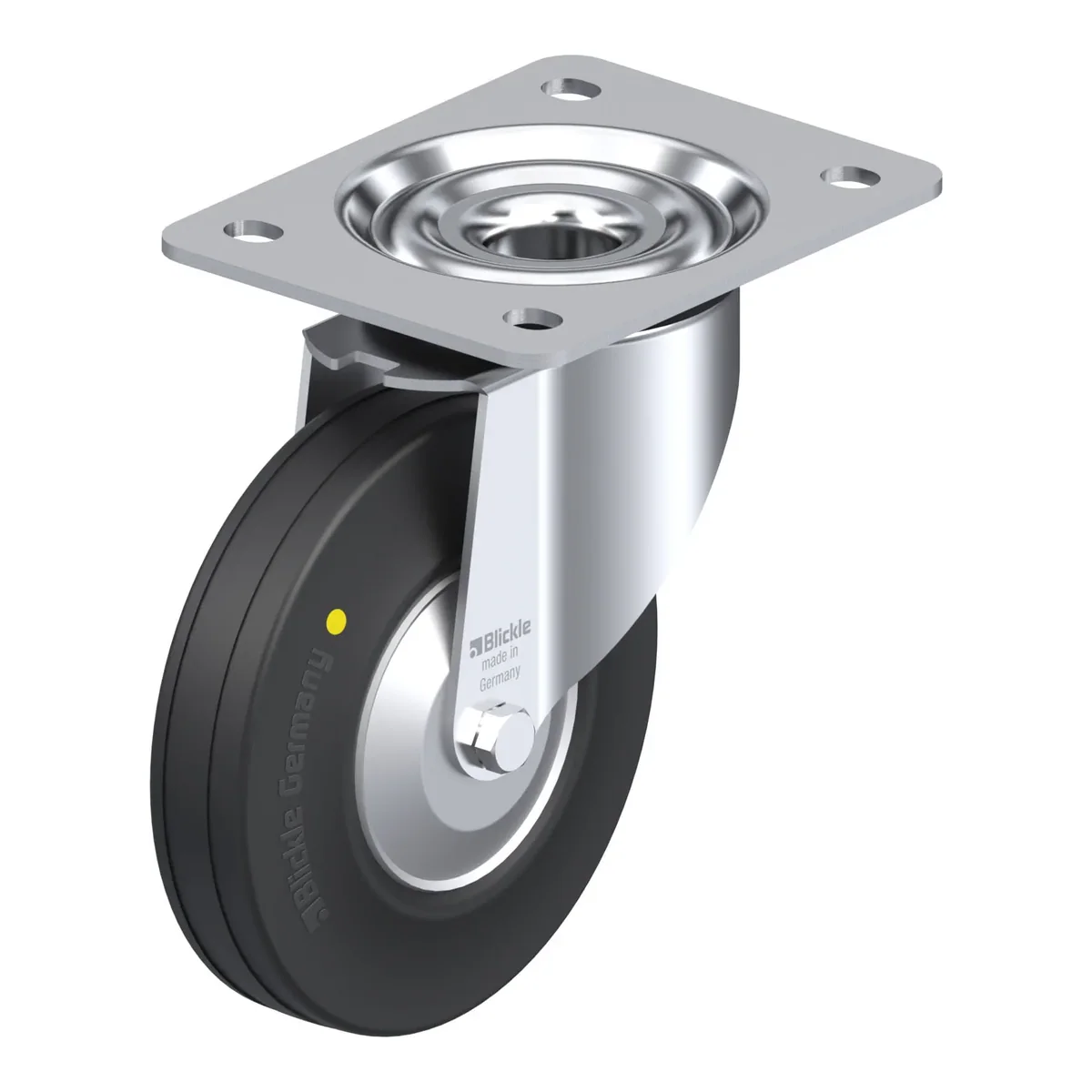

L-V 140R-EL-FA – okretni točkić Blickle

Šifra 434191

L-V 140R-EL-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: L-V 140R-EL-FA je okretni točkić Blickle promjera 140 mm, širine 37.5 mm, nosivosti 115 kg pri 4 km/h (statički 287.5 kg). Ukupna visina je 170 mm. Cijena je 91.01 KM s PDV-om.

Pressed steel swivel castor, medium duty design, with top plate fitting, wheel, with standard solid rubber tyre, with pressed steel rim, reinforced design, with steel thread guard, electrically conductive

91.01 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla434191
EAN4047526108014
Promjer točka140 mm
Širina točka37.5 mm
Ukupna visina170 mm
Nosivost pri 4 km/h115 kg
Statička nosivost287.5 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset50 mm
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: standard solid rubber, hardness 80 Shore A, colour black
  • rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
