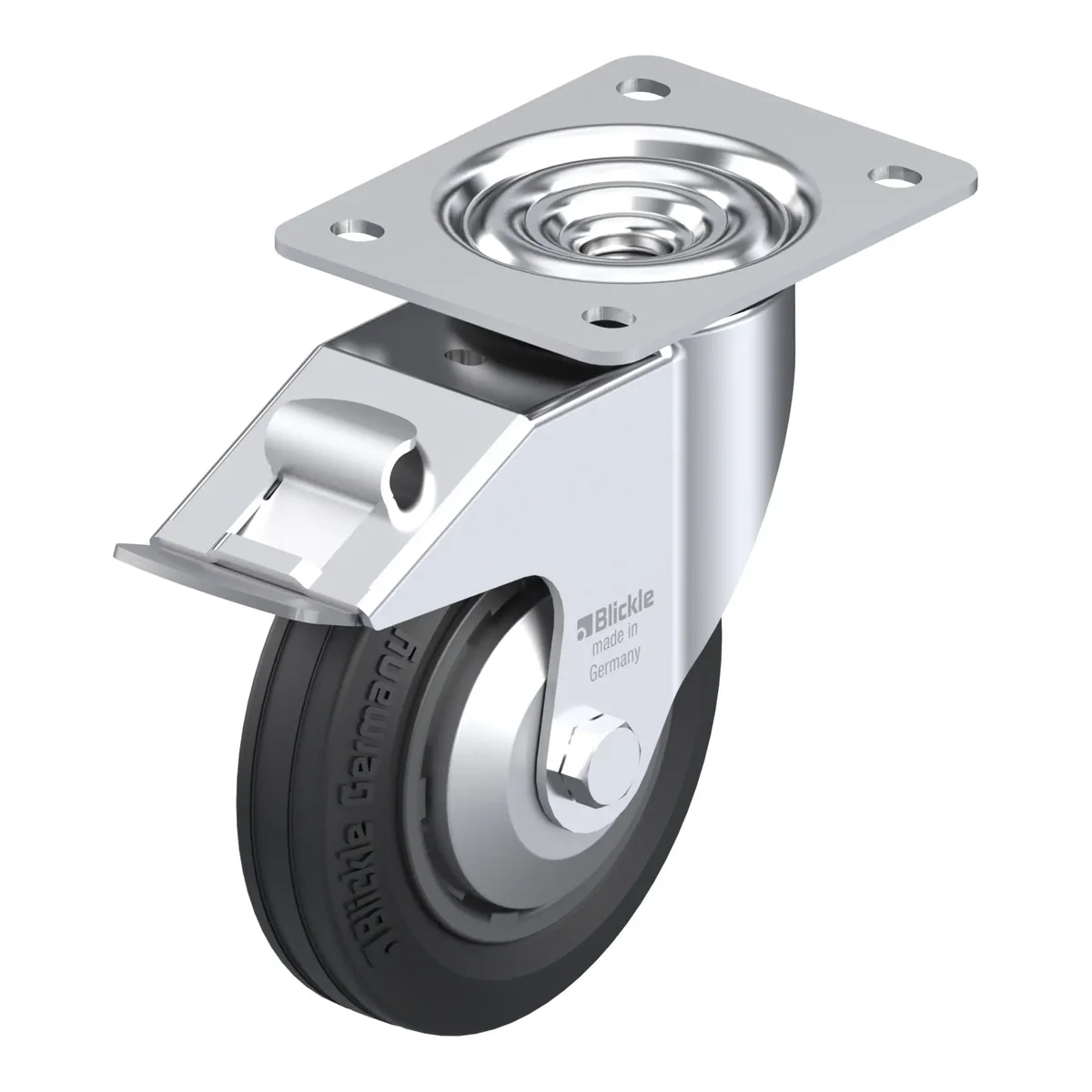

LE-VPP 150G-FI-FA – okretni točkić Blickle

Šifra 749721

LE-VPP 150G-FI-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LE-VPP 150G-FI-FA je okretni točkić Blickle promjera 150 mm, širine 40 mm, nosivosti 135 kg pri 4 km/h (statički 340 kg). Ukupna visina je 190 mm. Radi na temperaturi od -20 °C do 60 °C. Cijena je 91.37 KM s PDV-om.

Pressed steel swivel castor, with top plate fitting, with brake system 'stop-fix', wheel, with standard solid rubber tyre, with synthetic rim, with steel thread guard

91.37 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla749721
EAN4047526015961
Promjer točka150 mm
Širina točka40 mm
Ukupna visina190 mm
Nosivost pri 4 km/h135 kg
Statička nosivost340 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset56 mm
Tvrdoća gazišta80 Shore A
Radna temperatura-20 °C do 60 °C
Težina2.2 kg

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: standard solid rubber, hardness 80 Shore A, colour black
  • rim: high-quality polypropylene, impact resistant, colour black

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
