Šifra 64071

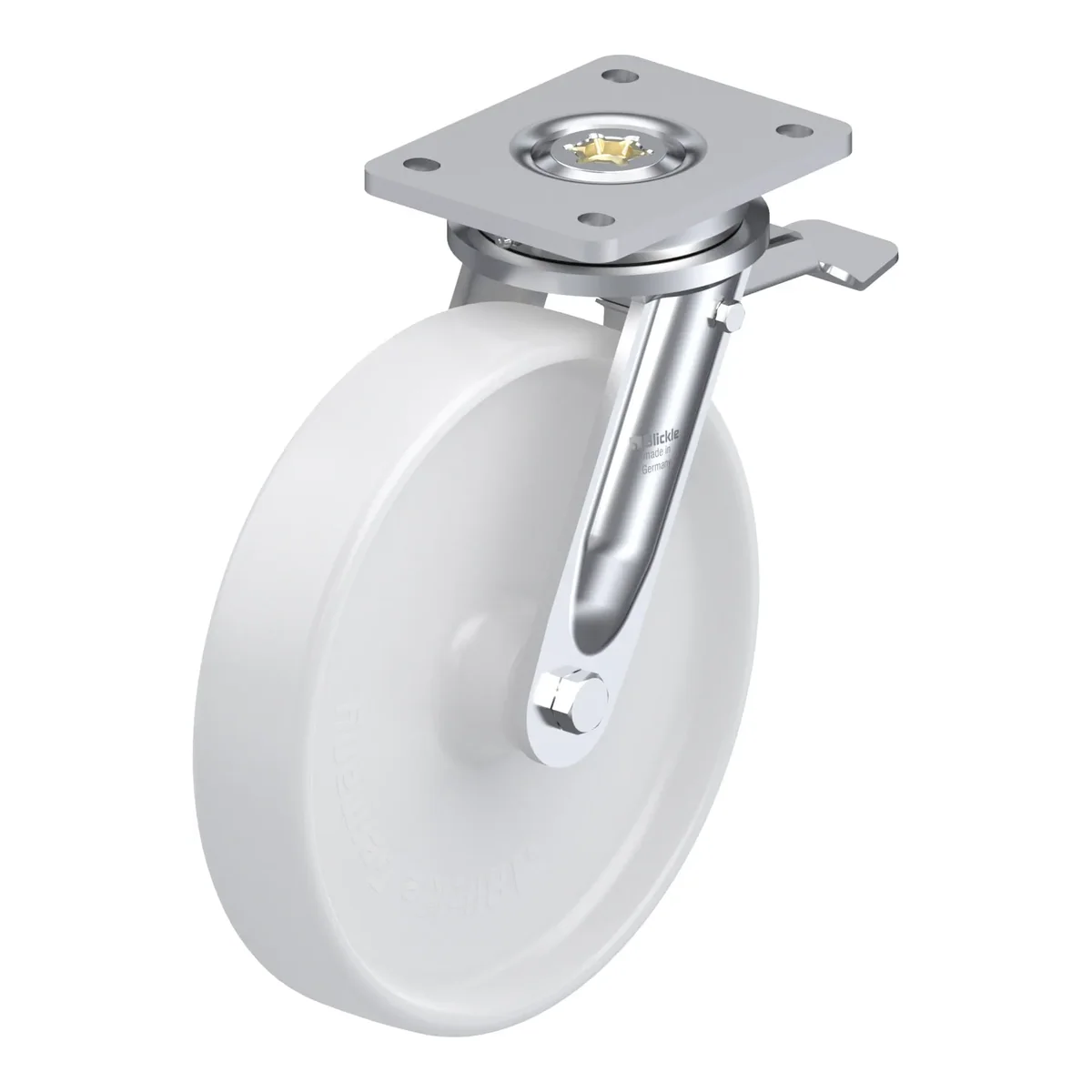

LO-PO 250G-ST
Okretni točkić, Blickle, Made in Germany
Ukratko: LO-PO 250G-ST je okretni točkić Blickle promjera 250 mm, širine 50 mm, nosivosti 1000 kg pri 4 km/h (statički 2500 kg). Ukupna visina je 295 mm. Radi na temperaturi od -25 °C do 80 °C. Cijena je 399.54 KM s PDV-om.
Heavy duty welded steel swivel castor, with brake system 'stop-top', nylon wheel
399.54 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 64071 |
|---|---|
| EAN | 4047526064075 |
| Promjer točka | 250 mm |
| Širina točka | 50 mm |
| Ukupna visina | 295 mm |
| Nosivost pri 4 km/h | 1000 kg |
| Statička nosivost | 2500 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 70 mm |
| Tvrdoća gazišta | 70 Shore A |
| Radna temperatura | -25 °C do 80 °C |
| Težina | 5 kg |
| Ne ostavlja tragove | da |
Nosač
- solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- four specially-shaped, hardened bearing seatsfor additional strength
- bolted and secured welded central kingpin, extremely strong
- swivel head seal with labyrinth design
- grease nipple
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
