Šifra 935480
LPA-POA 35G-RA

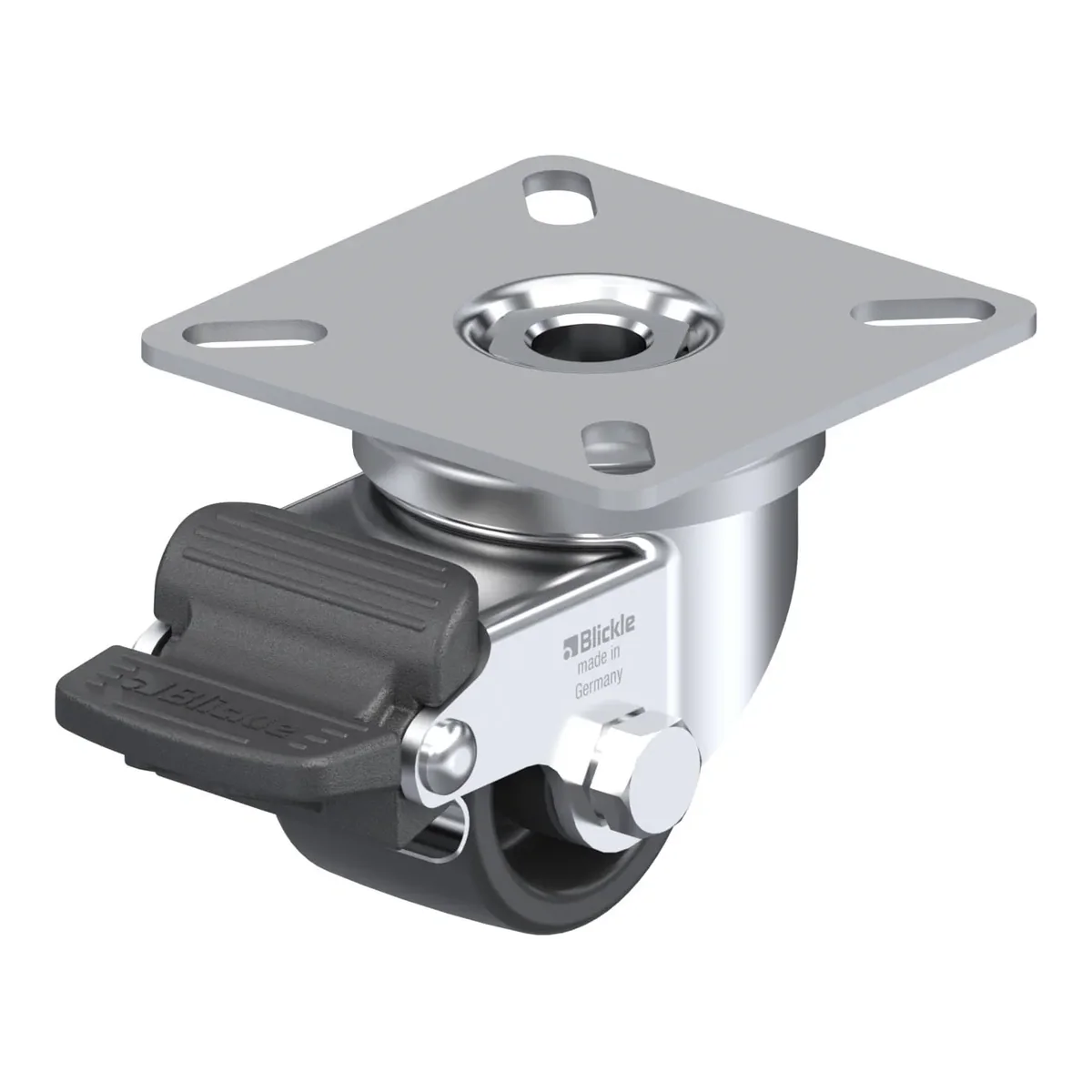

Okretni točkić, Blickle, Made in Germany
Ukratko: LPA-POA 35G-RA je okretni točkić Blickle promjera 35 mm, širine 25 mm, nosivosti 75 kg pri 4 km/h (statički 187.5 kg). Ukupna visina je 52 mm. Cijena je 14.71 KM s PDV-om.
Light duty swivel castor, with top plate fitting, with brake system 'Radstop', nylon wheel
14.71 KM
Redovna cijena 16.34 KM, akcija −10%
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 935480 |
|---|---|
| EAN | 4047526362324 |
| Promjer točka | 35 mm |
| Širina točka | 25 mm |
| Ukupna visina | 52 mm |
| Nosivost pri 4 km/h | 75 kg |
| Statička nosivost | 187.5 kg |
| Veličina ploče | 60 x 60 mm |
| Razmak rupa | 25.0 x 30.0 mm |
| Offset | 15 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
