Šifra 607754

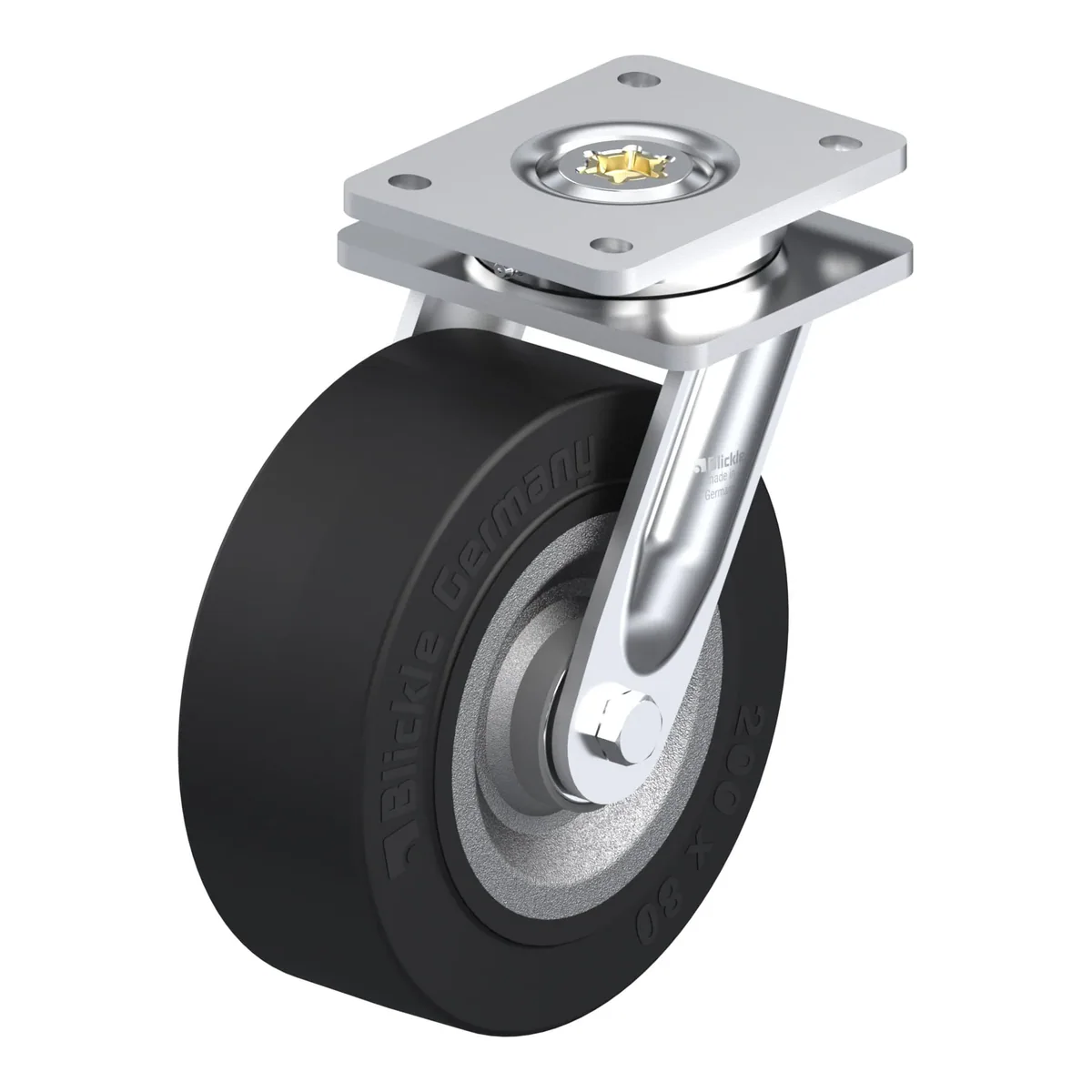

LO-SE 202K
Okretni točkić, Blickle, Made in Germany
Ukratko: LO-SE 202K je okretni točkić Blickle promjera 200 mm, širine 80 mm, nosivosti 850 kg pri 4 km/h (statički 2125 kg). Ukupna visina je 245 mm. Cijena je 467.20 KM s PDV-om.
Heavy duty welded steel swivel castor, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with steel wheel centre
467.20 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 607754 |
|---|---|
| EAN | 4047526607753 |
| Promjer točka | 200 mm |
| Širina točka | 80 mm |
| Ukupna visina | 245 mm |
| Nosivost pri 4 km/h | 850 kg |
| Statička nosivost | 2125 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 65 mm |
Nosač
- solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- four specially-shaped, hardened bearing seatsfor additional strength
- bolted and secured welded central kingpin, extremely strong
- swivel head seal with labyrinth design
- grease nipple
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: thick-walled pressed steel, with tubular steel hub, lacquered, colour anthracite
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
