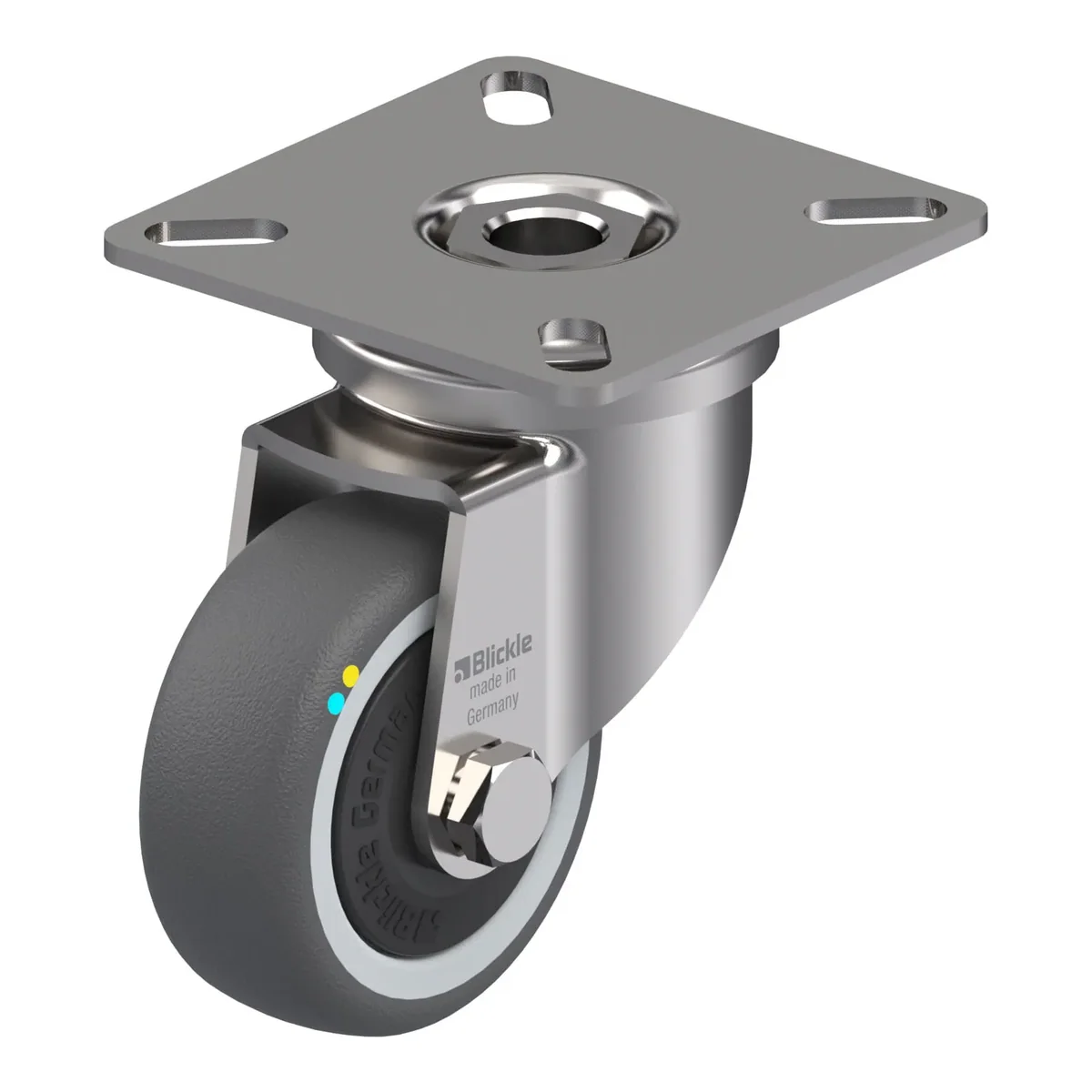

LPXA-PATH 50KFD-ELS – okretni točkić Blickle

Šifra 853512

LPXA-PATH 50KFD-ELS

Okretni točkić, Blickle, Made in Germany

Ukratko: LPXA-PATH 50KFD-ELS je okretni točkić Blickle promjera 50 mm, širine 19 mm, nosivosti 50 kg pri 4 km/h (statički 125 kg). Ukupna visina je 71 mm. Cijena je 71.03 KM s PDV-om.

Stainless steel light duty swivel castor, with top plate fitting, wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, large, with additionals ball bea ring seals, electrically conductive, non-marking

71.03 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla853512
EAN4047526207076
Promjer točka50 mm
Širina točka19 mm
Ukupna visina71 mm
Nosivost pri 4 km/h50 kg
Statička nosivost125 kg
Veličina ploče60 x 60 mm
Razmak rupa25.0 x 30.0 mm
Offset23 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • large thread guard, with additional, ball bearing seals
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
