MHC Tradetočkići.ba

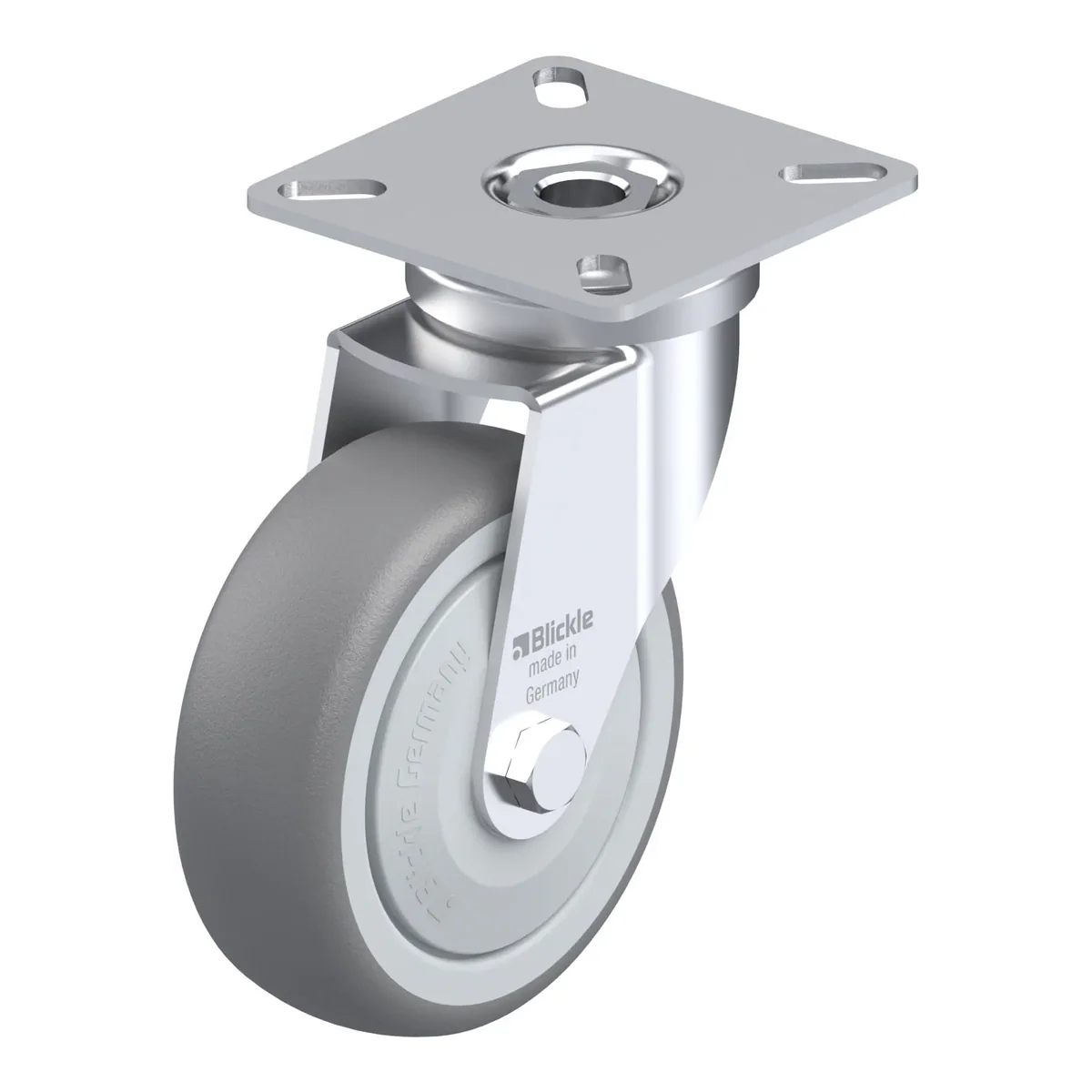

LPA-TPA 75KF – okretni točkić Blickle

Šifra 356394

LPA-TPA 75KF

Okretni točkić, Blickle, Made in Germany

Ukratko: LPA-TPA 75KF je okretni točkić Blickle promjera 75 mm, širine 25 mm, nosivosti 75 kg pri 4 km/h (statički 190 kg). Ukupna visina je 100 mm. Radi na temperaturi od -20 °C do 60 °C. Cijena je 20.01 KM s PDV-om.

Light duty swivel castor, with top plate fitting, wheel, with thermoplastic rubber tread, with polypropylene wheel centre, with synthetic thread guard, large

20.01 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla356394
EAN4047526356392
Promjer točka75 mm
Širina točka25 mm
Ukupna visina100 mm
Nosivost pri 4 km/h75 kg
Statička nosivost190 kg
Veličina ploče60 x 60 mm
Razmak rupa25.0 x 30.0 mm
Offset29 mm
Tvrdoća gazišta85 Shore A
Radna temperatura-20 °C do 60 °C
Težina0.3 kg
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
  • wheel centre: high-quality polypropylene, impact resistant, colour silver grey

Dodatne karakteristike

  • with synthetic thread guard, large
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • tread contains oil, may stain sensitive surfaces. alternatives: series VPA, VPP, POES, POEV, PATH
