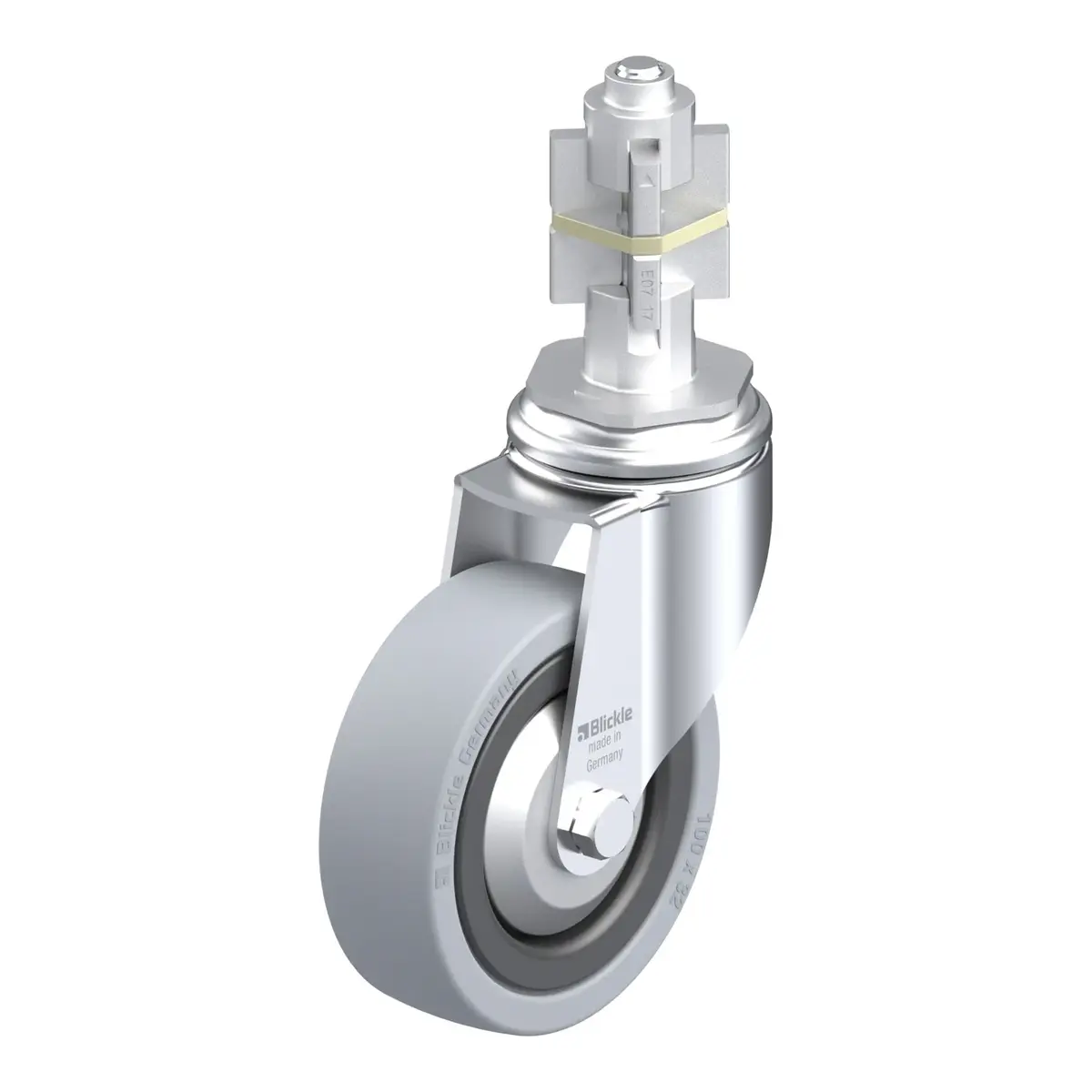

LKRA-VPA 101K-11-FA-E17 – okretni točkić Blickle

Šifra 744126

LKRA-VPA 101K-11-FA-E17

Okretni točkić, Blickle, Made in Germany

Ukratko: LKRA-VPA 101K-11-FA-E17 je okretni točkić Blickle promjera 100 mm, širine 32 mm, nosivosti 110 kg pri 4 km/h (statički 275 kg). Ukupna visina je 135 mm. Radi na temperaturi od -20 °C do 60 °C. Cijena je 67.67 KM s PDV-om.

Light duty swivel castor, with bolt hole fitting, with metal expander, wheel, with solid rubber tyres, with synthetic rim, with steel thread guard

67.67 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla744126
EAN4047526034719
Promjer točka100 mm
Širina točka32 mm
Ukupna visina135 mm
Nosivost pri 4 km/h110 kg
Statička nosivost275 kg
Offset40 mm
Tvrdoća gazišta80 Shore A
Radna temperatura-20 °C do 60 °C
Težina0.9 kg
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality solid rubber, hardness 80 Shore A, colour grey, non-marking, non-staining
  • rim: high-quality nylon 6 or polypropylene in the electrically conductive version "-EL", impact resistant, colour black

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
