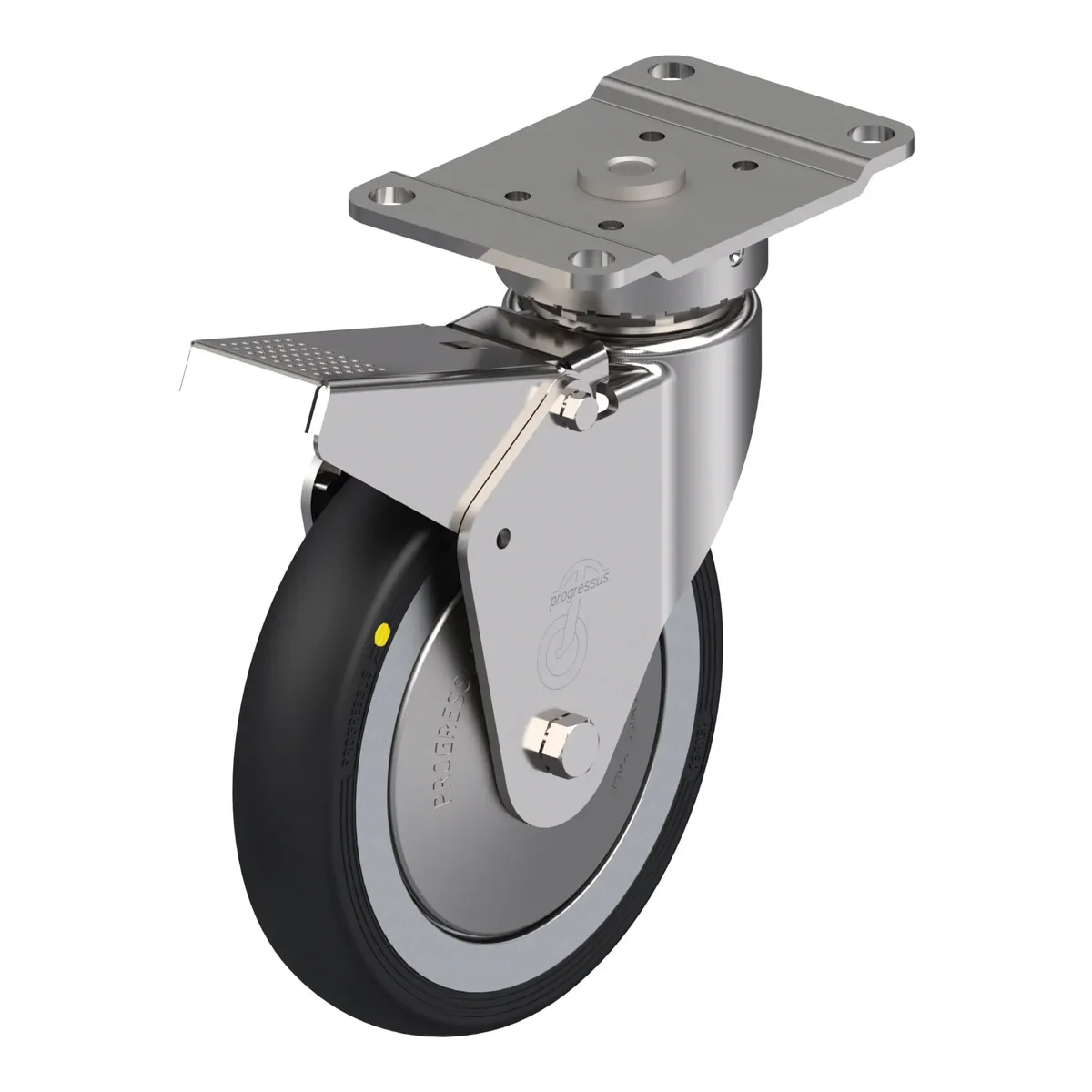

LPX-PGV 150XK-PG2-FI-EL-FA – okretni točkić Blickle

Šifra 889373

LPX-PGV 150XK-PG2-FI-EL-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LPX-PGV 150XK-PG2-FI-EL-FA je okretni točkić Blickle promjera 150 mm, širine 30 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 195 mm. Cijena je 850.17 KM s PDV-om.

Stainless steel swivel castor, with top plate fitting, with brake system 'stop-fix', wheel, with elastic solid rubber tyres, with aluminium wheel centre, with steel thread guard, electrically conductive

850.17 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla889373
EAN4047526302757
Promjer točka150 mm
Širina točka30 mm
Ukupna visina195 mm
Nosivost pri 4 km/h200 kg
Statička nosivost500 kg
Veličina ploče120 x 80 mm
Razmak rupa85.0 x 50.0 mm
Offset55 mm
Otporan na korozijuda
ESD zaštitada

Nosač

  • high-quality chromium-nickel steel (1.4301 / AISI304), corrosion-resistant, vibration-ground finished
  • all parts including axle material are corrosion-resistant
  • four-point ball bearing for optimal absorption of vertical and horizontal forces
  • hardened precision fork head made from corrosion-resistant steel (1.4034 / AISI420)
  • excellent swivel characteristics, particularly resistant to impact and shocks
  • grease nipple

Točak

  • tread: high-quality elastic solid rubber in smooth rolling quality, hardness 80 Shore A, colour black
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +134 °C, reduced load capacity over +35 °C
  • suitable for autoclaves
  • electrical conductivity (ohmic resistance) ≤ 104Ω
