MHC Tradetočkići.ba

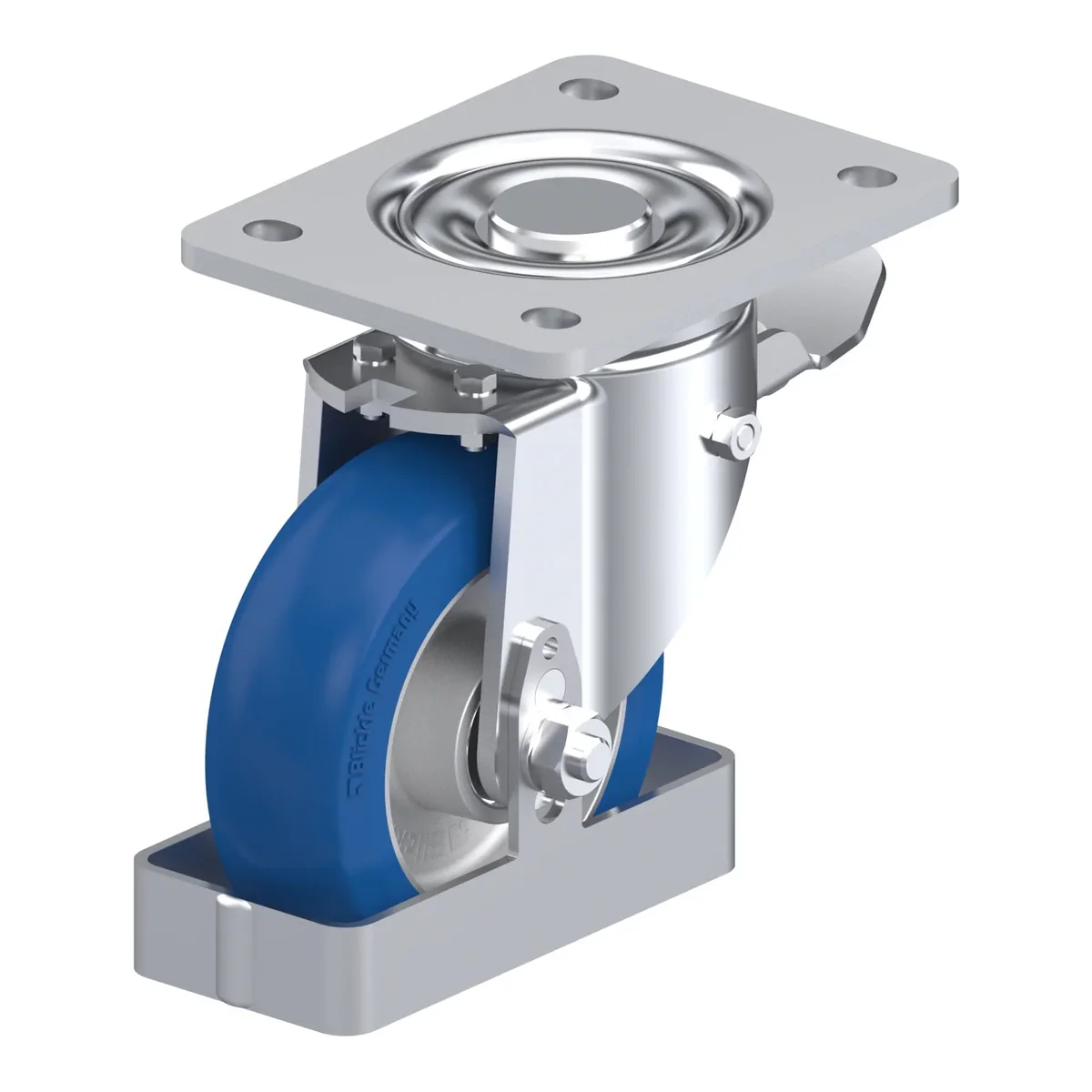

LH-ALBS 125K-3-ST-CO-FS – okretni točkić Blickle

Šifra 939290

LH-ALBS 125K-3-ST-CO-FS

Okretni točkić, Blickle, Made in Germany

Ukratko: LH-ALBS 125K-3-ST-CO-FS je okretni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 370 kg pri 4 km/h (statički 925 kg). Ukupna visina je 165 mm. Radi na temperaturi od -20 °C do 70 °C. Cijena je 282.22 KM s PDV-om.

Pressed steel swivel castor, heavy duty design, with top plate fitting, with brake system 'stop-top', steel foot guard, heavy duty wheel, with Blickle Besthane® Soft polyurethane tread, with aluminium wheel centre, with extra crowned running tread

282.22 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla939290
EAN4047526402457
Promjer točka125 mm
Širina točka40 mm
Ukupna visina165 mm
Nosivost pri 4 km/h370 kg
Statička nosivost925 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset45 mm
Tvrdoća gazišta75 Shore A
Radna temperatura-20 °C do 70 °C
Težina2.8 kg
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • heavy fork and top plate
  • double ball bearing in the swivel head
  • bolted and secured central kingpin, extremely strong
  • particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats

Točak

  • tread: high-quality polyurethane elastomer Blickle Besthane® Soft, hardness 75 Shore A, colour blue, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
