Šifra 913530
LH-ALST 125K-1-ST-AS

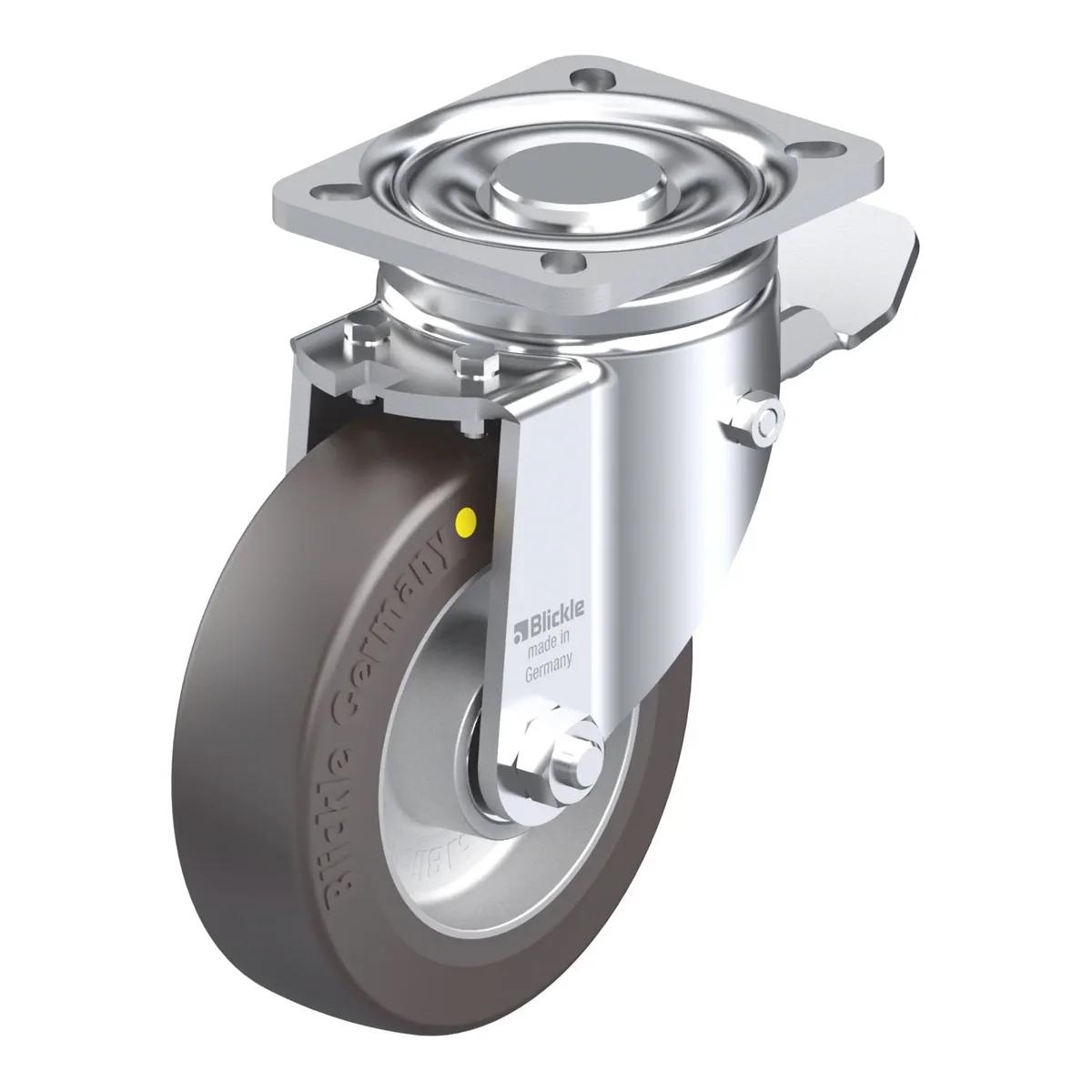

Okretni točkić, Blickle, Made in Germany
Ukratko: LH-ALST 125K-1-ST-AS je okretni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 370 kg pri 4 km/h (statički 925 kg). Ukupna visina je 165 mm. Cijena je 227.02 KM s PDV-om.
Pressed steel swivel castor, heavy duty design, with top plate fitting, with brake system 'stop-top', heavy duty wheel, with Blickle Softhane® polyurethane tread, with aluminium wheel centre, antistatic
227.02 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 913530 |
|---|---|
| EAN | 4047526379858 |
| Promjer točka | 125 mm |
| Širina točka | 40 mm |
| Ukupna visina | 165 mm |
| Nosivost pri 4 km/h | 370 kg |
| Statička nosivost | 925 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 45 mm |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats
Točak
- tread: high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: die-cast aluminium, colour silver grey
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
- electrical conductivity (ohmic resistance) ≤ 107Ω
