Šifra 693895
LS-G 250G-FS
Okretni točkić, Blickle, Made in Germany
Ukratko: LS-G 250G-FS je okretni točkić Blickle promjera 250 mm, širine 60 mm, nosivosti 1400 kg pri 4 km/h (statički 3500 kg). Ukupna visina je 305 mm. Cijena je 677.30 KM s PDV-om.

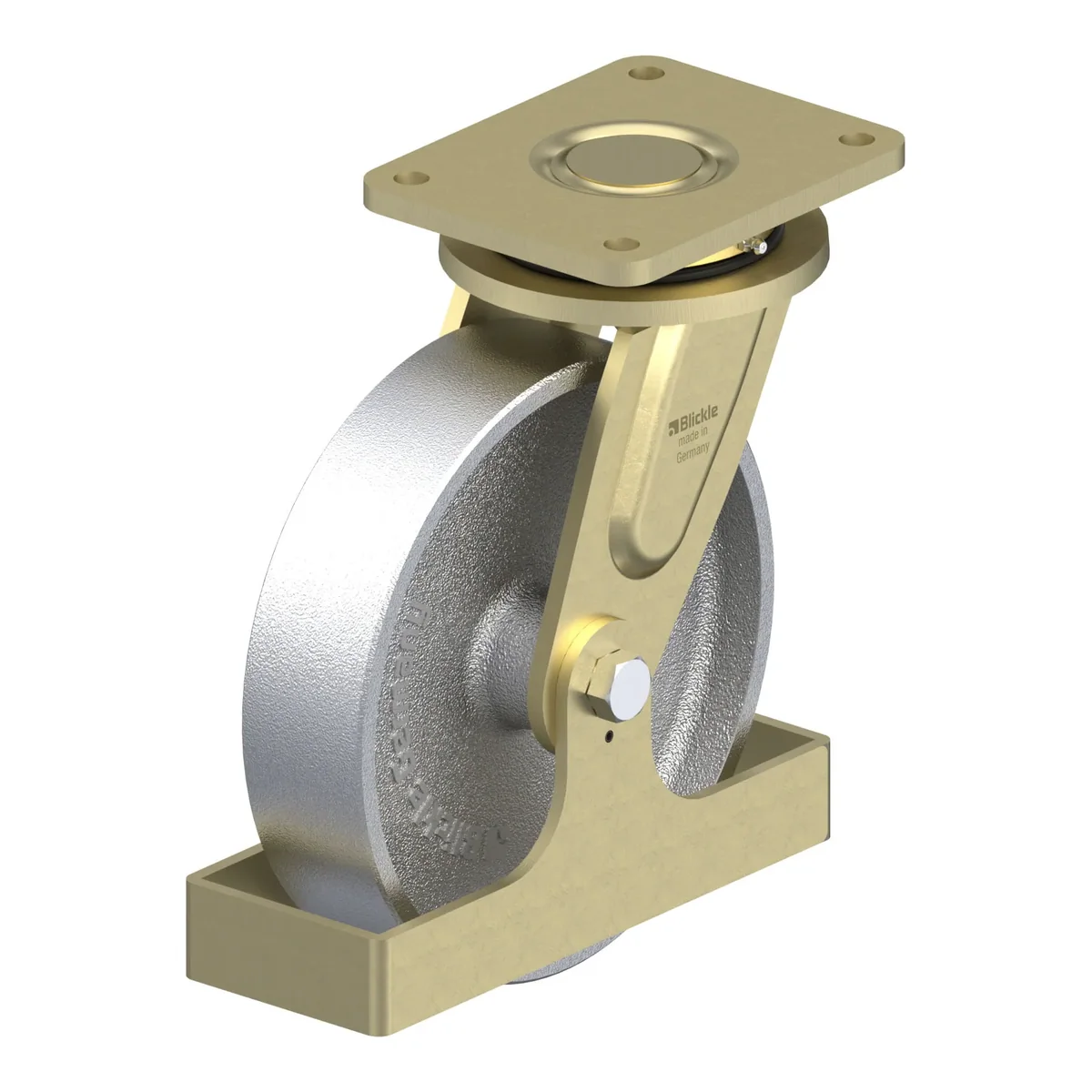

Heavy duty welded steel swivel castor, heavy duty swivel head, steel foot guard, cast iron wheel
677.30 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 693895 |
|---|---|
| EAN | 4047526693893 |
| Promjer točka | 250 mm |
| Širina točka | 60 mm |
| Ukupna visina | 305 mm |
| Nosivost pri 4 km/h | 1400 kg |
| Statička nosivost | 3500 kg |
| Veličina ploče | 175 x 140 mm |
| Razmak rupa | 140.0 x 110.0 mm |
| Offset | 75 mm |
| ESD zaštita | da |
Nosač
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
- bolted and secured welded central kingpin, extremely strong
- dust and splash-proof
- grease nipple
Točak
- rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver
Dodatne karakteristike
- chemical resistance to many aggressive substances
- consider the surface pressure on sensitive floors due to high point loads
- provide adequate lubrication on a regular basis for plain bore version
- to be lubricated according to the application temperature
