MHC Tradetočkići.ba

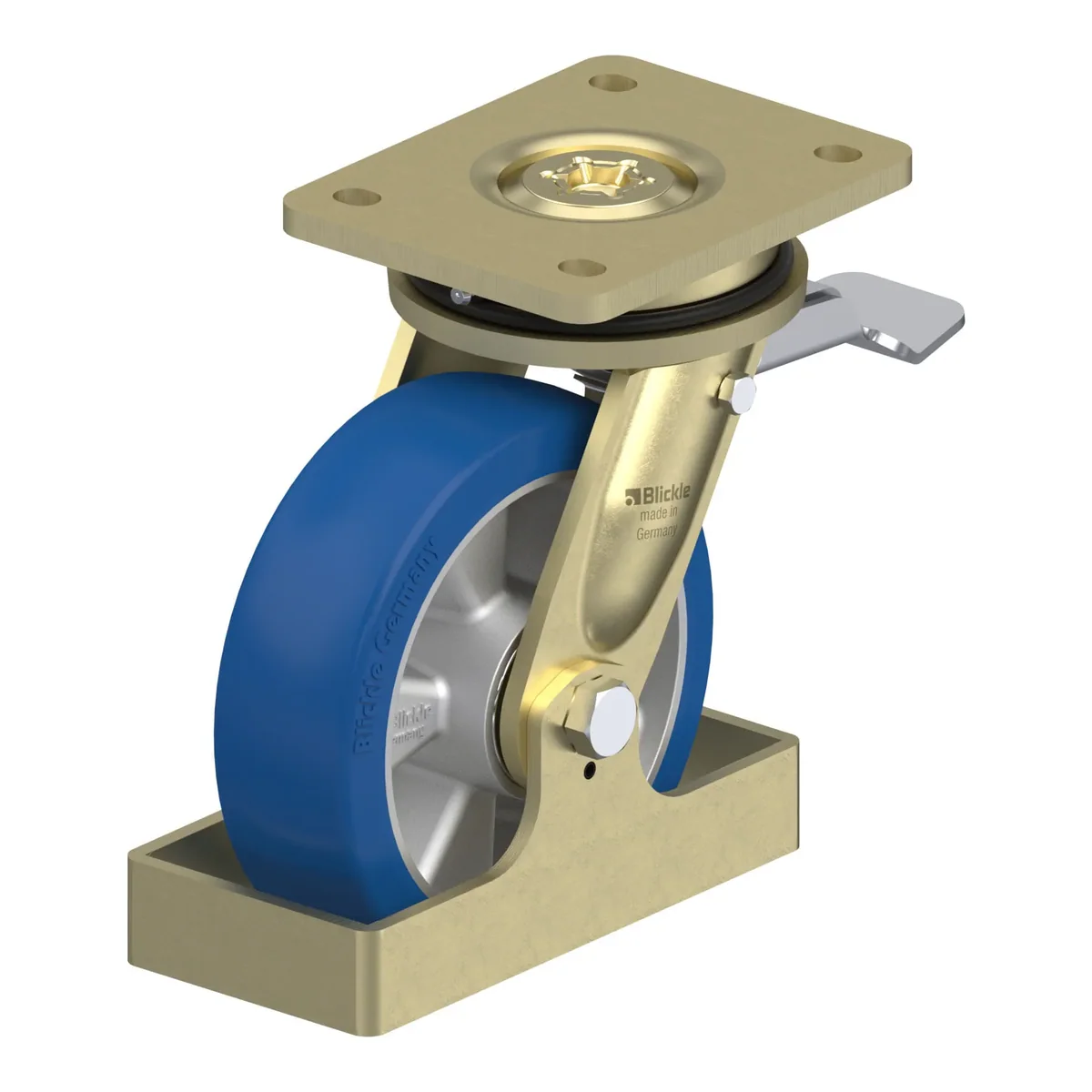

LS-ALBS 160K-ST-FS – okretni točkić Blickle

Šifra 906812

LS-ALBS 160K-ST-FS

Okretni točkić, Blickle, Made in Germany

Ukratko: LS-ALBS 160K-ST-FS je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 580 kg pri 4 km/h (statički 1450 kg). Ukupna visina je 205 mm. Cijena je 508.60 KM s PDV-om.

Heavy duty welded steel swivel castor, heavy duty swivel head, with brake system 'stop-top', steel foot guard, heavy duty wheel, with Blickle Besthane® Soft polyurethane tread, with aluminium wheel centre

508.60 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla906812
EAN4047526323561
Promjer točka160 mm
Širina točka50 mm
Ukupna visina205 mm
Nosivost pri 4 km/h580 kg
Statička nosivost1450 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset55 mm
Ne ostavlja tragoveda

Nosač

  • particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
  • axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
  • bolted and secured welded central kingpin, extremely strong
  • dust and splash-proof
  • grease nipple

Točak

  • tread: high-quality polyurethane elastomer Blickle Besthane® Soft, hardness 75 Shore A, colour blue, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
