MHC Tradetočkići.ba

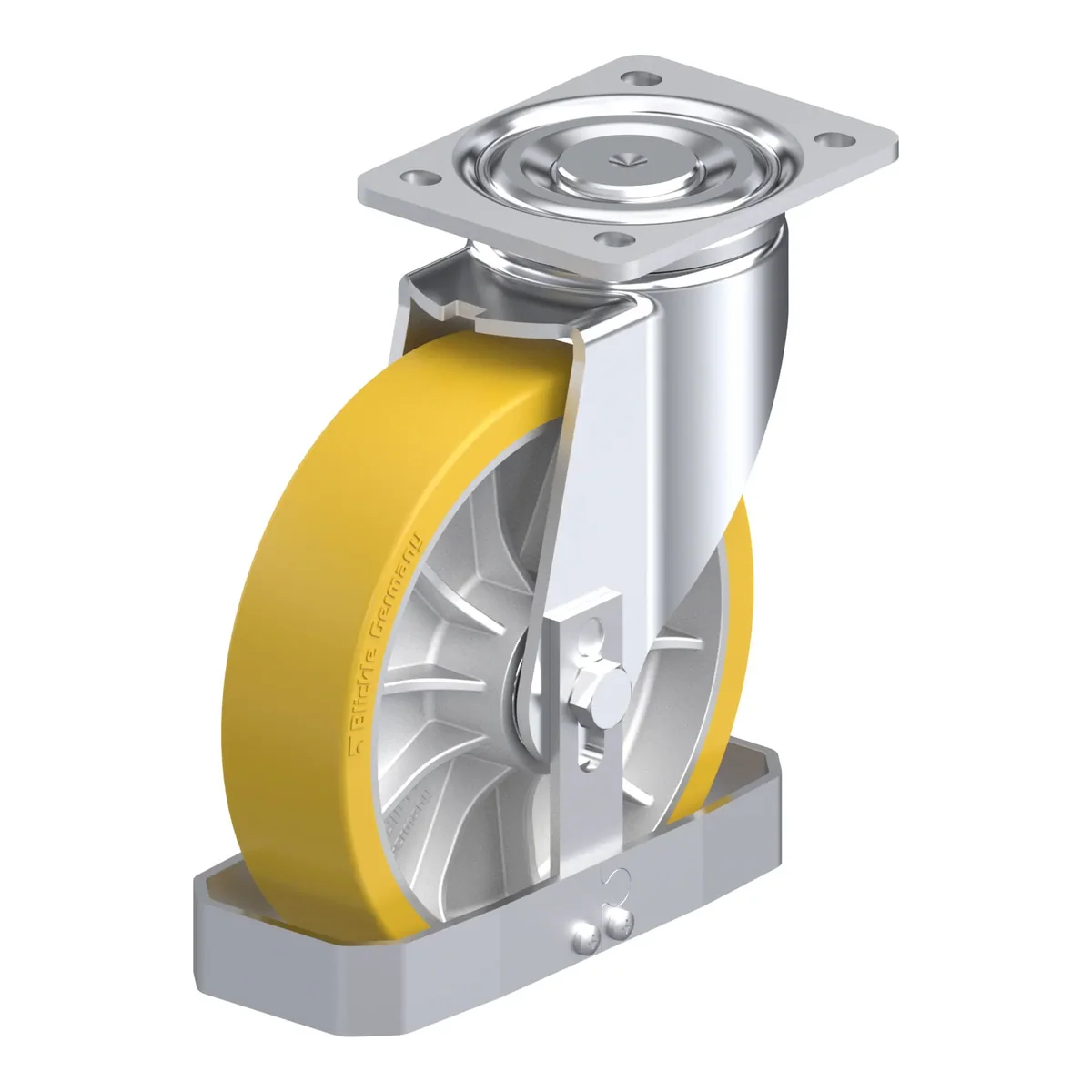

LH-ALTH 202K-FS – okretni točkić Blickle

Šifra 939470

LH-ALTH 202K-FS

Okretni točkić, Blickle, Made in Germany

Ukratko: LH-ALTH 202K-FS je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 900 kg pri 4 km/h (statički 2250 kg). Ukupna visina je 245 mm. Cijena je 330.45 KM s PDV-om.

Pressed steel swivel castor, heavy duty design, with top plate fitting, steel foot guard, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with aluminium wheel centre

330.45 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla939470
EAN4047526360276
Promjer točka200 mm
Širina točka50 mm
Ukupna visina245 mm
Nosivost pri 4 km/h900 kg
Statička nosivost2250 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset70 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • heavy fork and top plate
  • double ball bearing in the swivel head
  • bolted and secured central kingpin, extremely strong
  • particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats

Točak

  • tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
