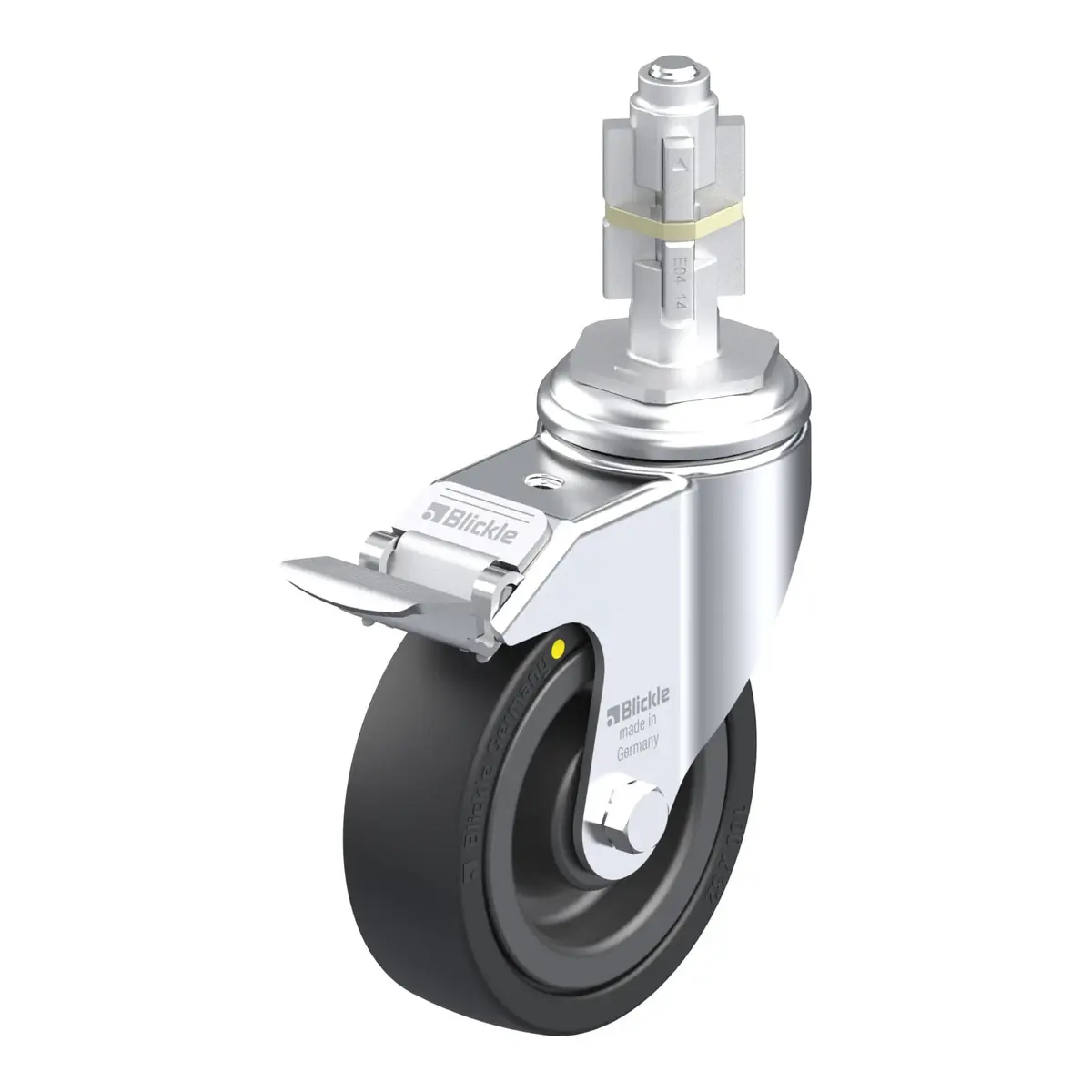

LKRA-VPA 101K-11-FI-EL-E14 – okretni točkić Blickle

Šifra 750780

LKRA-VPA 101K-11-FI-EL-E14

Okretni točkić, Blickle, Made in Germany

Ukratko: LKRA-VPA 101K-11-FI-EL-E14 je okretni točkić Blickle promjera 100 mm, širine 32 mm, nosivosti 80 kg pri 4 km/h (statički 200 kg). Ukupna visina je 135 mm. Cijena je 77.07 KM s PDV-om.

Light duty swivel castor, with bolt hole fitting, with metal expander, with brake system 'stop-fix', wheel, with solid rubber tyres, with synthetic rim, electrically conductive

77.07 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla750780
EAN4047526034986
Promjer točka100 mm
Širina točka32 mm
Ukupna visina135 mm
Nosivost pri 4 km/h80 kg
Statička nosivost200 kg
Offset40 mm
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality solid rubber, hardness 80 Shore A, colour black
  • rim: high-quality polypropylene, impact resistant, colour black, Electrically conductive, colour black, marking

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
