Šifra 54262
LS-SPO 200K-ST

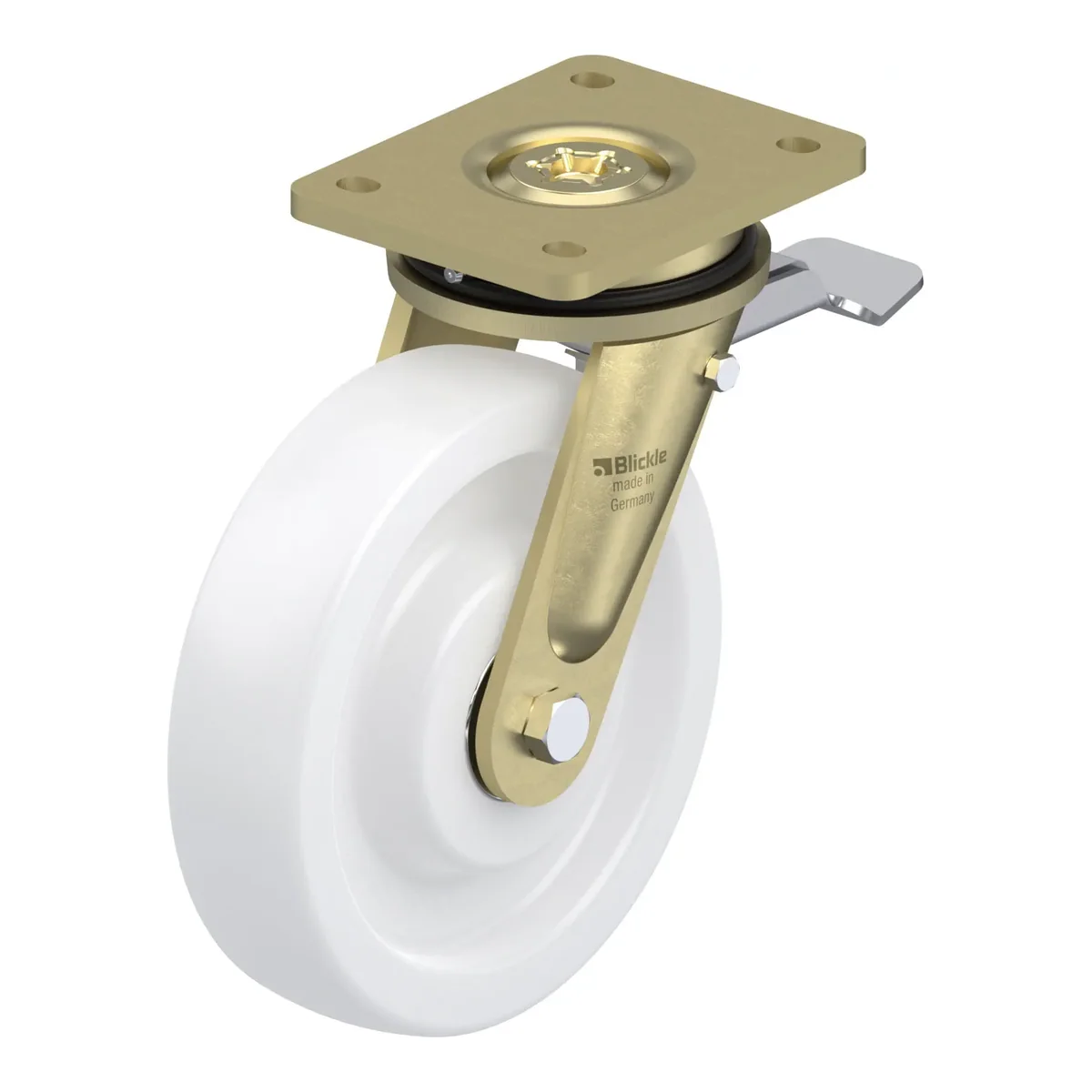

Okretni točkić, Blickle, Made in Germany
Ukratko: LS-SPO 200K-ST je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 1500 kg pri 4 km/h (statički 3750 kg). Ukupna visina je 245 mm. Cijena je 424.46 KM s PDV-om.
Heavy duty welded steel swivel castor, heavy duty swivel head, with brake system 'stop-top', nylon heavy duty wheel
424.46 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 54262 |
|---|---|
| EAN | 4047526054267 |
| Promjer točka | 200 mm |
| Širina točka | 50 mm |
| Ukupna visina | 245 mm |
| Nosivost pri 4 km/h | 1500 kg |
| Statička nosivost | 3750 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 60 mm |
| Ne ostavlja tragove | da |
Nosač
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
- bolted and secured welded central kingpin, extremely strong
- dust and splash-proof
- grease nipple
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
