Šifra 740504

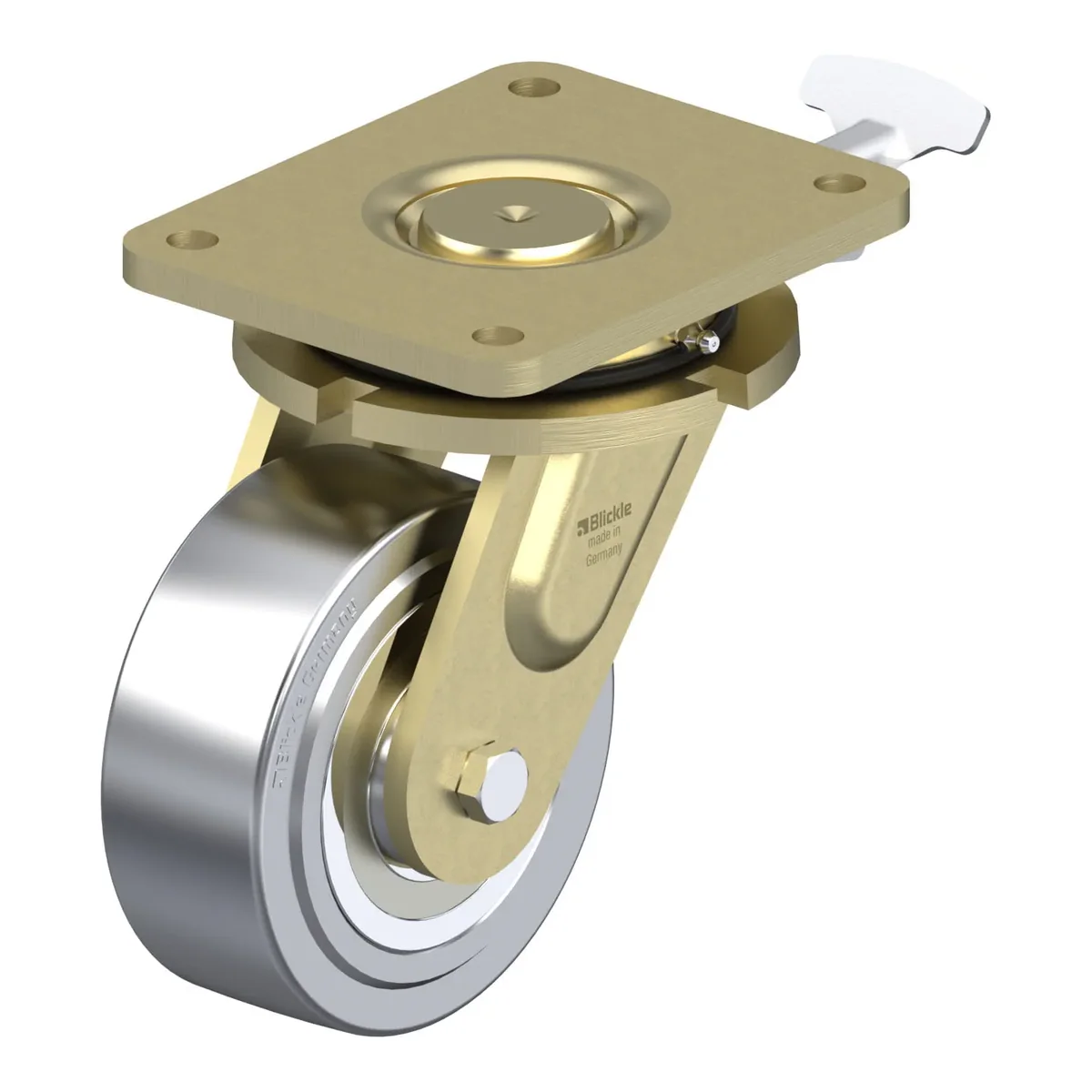

LS-SVS 150K-35-RI4
Okretni točkić, Blickle, Made in Germany
Ukratko: LS-SVS 150K-35-RI4 je okretni točkić Blickle promjera 150 mm, širine 55 mm, nosivosti 3000 kg pri 4 km/h (statički 7500 kg). Ukupna visina je 205 mm. Cijena je 816.04 KM s PDV-om.
Heavy duty welded steel swivel castor, heavy duty swivel head, with directional lock, extra heavy duty solid steel wheel
816.04 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 740504 |
|---|---|
| EAN | 4047526109493 |
| Promjer točka | 150 mm |
| Širina točka | 55 mm |
| Ukupna visina | 205 mm |
| Nosivost pri 4 km/h | 3000 kg |
| Statička nosivost | 7500 kg |
| Veličina ploče | 175 x 140 mm |
| Razmak rupa | 140.0 x 110.0 mm |
| Offset | 65 mm |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Nosač
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
- bolted and secured welded central kingpin, extremely strong
- dust and splash-proof
- grease nipple
Točak
- heat-treatable steel, hardness 190–230 HB, slightly crowned tread
Dodatne karakteristike
- chemical resistance to many aggressive substances
- operating temperature: -20 °C to +120 °C
- consider the surface pressure on sensitive floors due to high point loads
