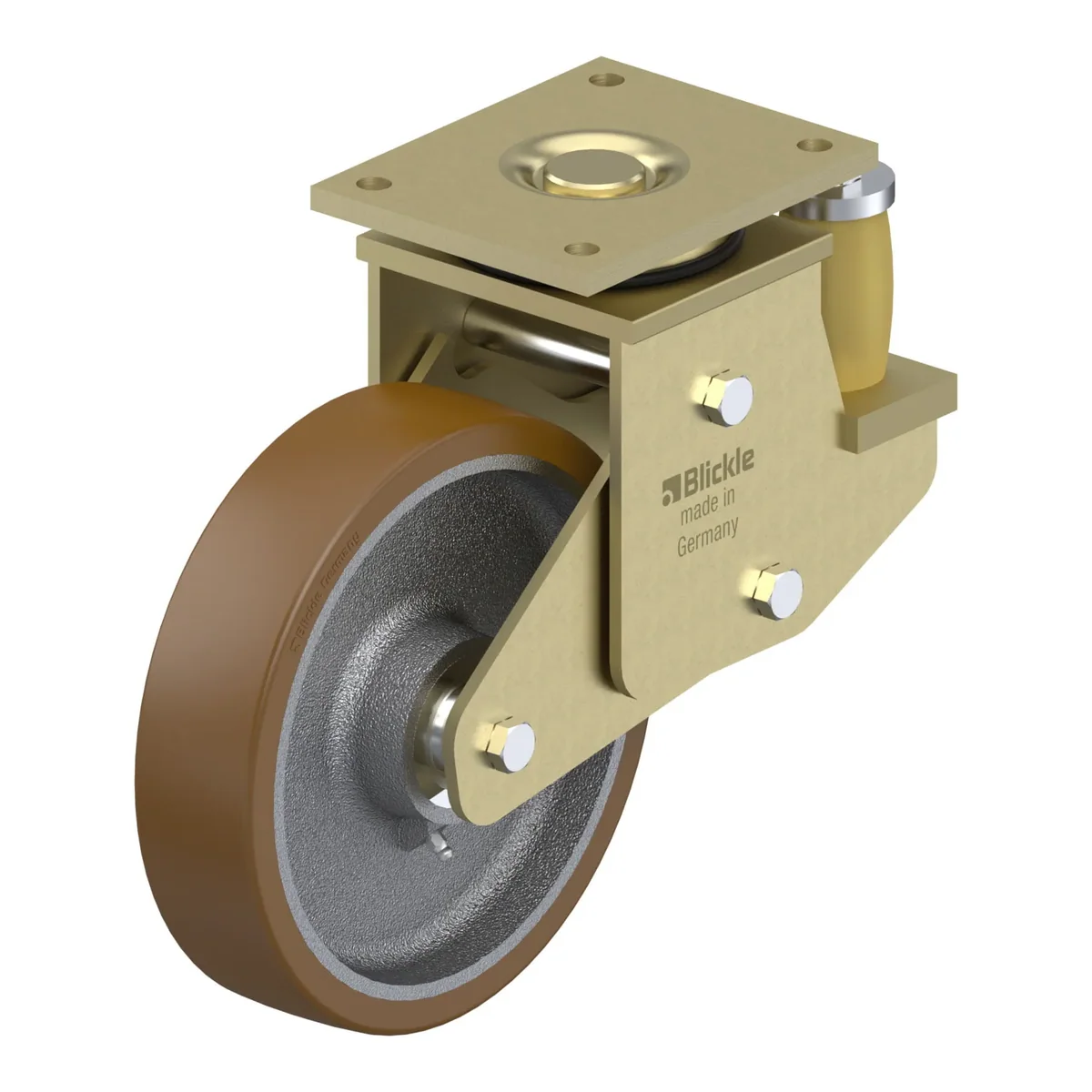

LSFE-GB 250K – okretni točkić Blickle

Šifra 755413

LSFE-GB 250K

Okretni točkić, Blickle, Made in Germany

Ukratko: LSFE-GB 250K je okretni točkić Blickle promjera 250 mm, širine 60 mm, nosivosti 1500 kg pri 4 km/h (statički 3750 kg). Ukupna visina je 315 mm. Cijena je 1219.49 KM s PDV-om.

Heavy duty welded steel swivel castor, with polyurethane spring, heavy duty wheel, with Blickle Besthane® polyurethane tread, with cast iron wheel centre

1219.49 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla755413
EAN4047526079079
Promjer točka250 mm
Širina točka60 mm
Ukupna visina315 mm
Nosivost pri 4 km/h1500 kg
Statička nosivost3750 kg
Veličina ploče175 x 140 mm
Razmak rupa140.0 x 110.0 mm
Offset120 mm
Ne ostavlja tragoveda

Nosač

  • particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
  • elastomer spring for excellent damping properties
  • maintenance-free spring mechanism
  • axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
  • bolted and secured welded central kingpin, extremely strong
  • dust and splash-proof
  • grease nipple

Točak

  • tread: high-quality polyurethane elastomer Blickle Besthane®, hardness 92 Shore A, colour brown, non-marking, non-staining
  • wheel centre: rugged grey cast iron, with grease nipple from wheel Ø 150 mm, lacquered, colour silver

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
