Šifra 853062

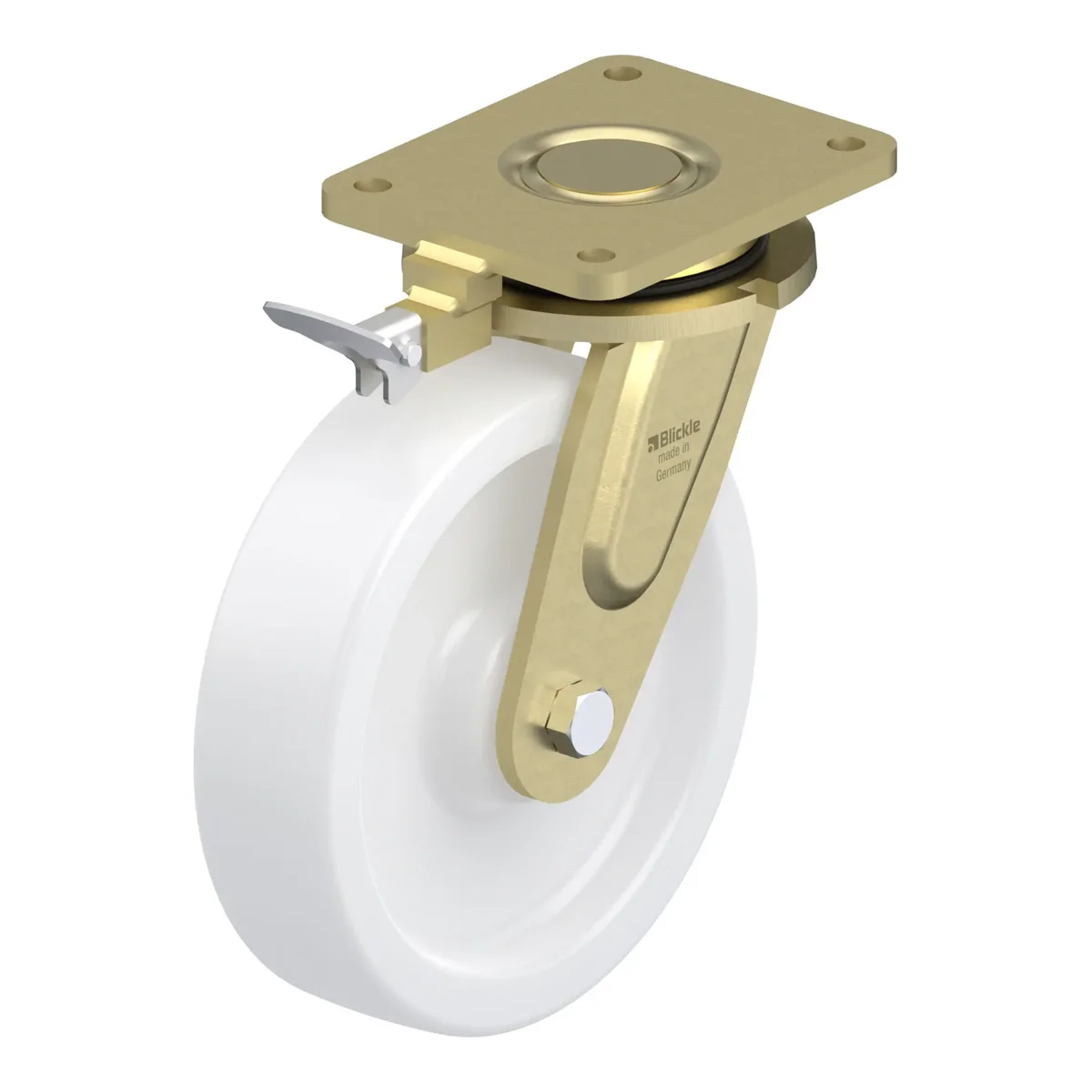

LS-SPO 250G-RI4
Okretni točkić, Blickle, Made in Germany
Ukratko: LS-SPO 250G-RI4 je okretni točkić Blickle promjera 250 mm, širine 65 mm, nosivosti 2000 kg pri 4 km/h (statički 5000 kg). Ukupna visina je 305 mm. Cijena je 674.13 KM s PDV-om.
Heavy duty welded steel swivel castor, heavy duty swivel head, with directional lock, nylon heavy duty wheel
674.13 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 853062 |
|---|---|
| EAN | 4047526200589 |
| Promjer točka | 250 mm |
| Širina točka | 65 mm |
| Ukupna visina | 305 mm |
| Nosivost pri 4 km/h | 2000 kg |
| Statička nosivost | 5000 kg |
| Veličina ploče | 175 x 140 mm |
| Razmak rupa | 140.0 x 110.0 mm |
| Offset | 75 mm |
| Ne ostavlja tragove | da |
Nosač
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
- bolted and secured welded central kingpin, extremely strong
- dust and splash-proof
- grease nipple
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
