Šifra 45302
LH-SETH 125K

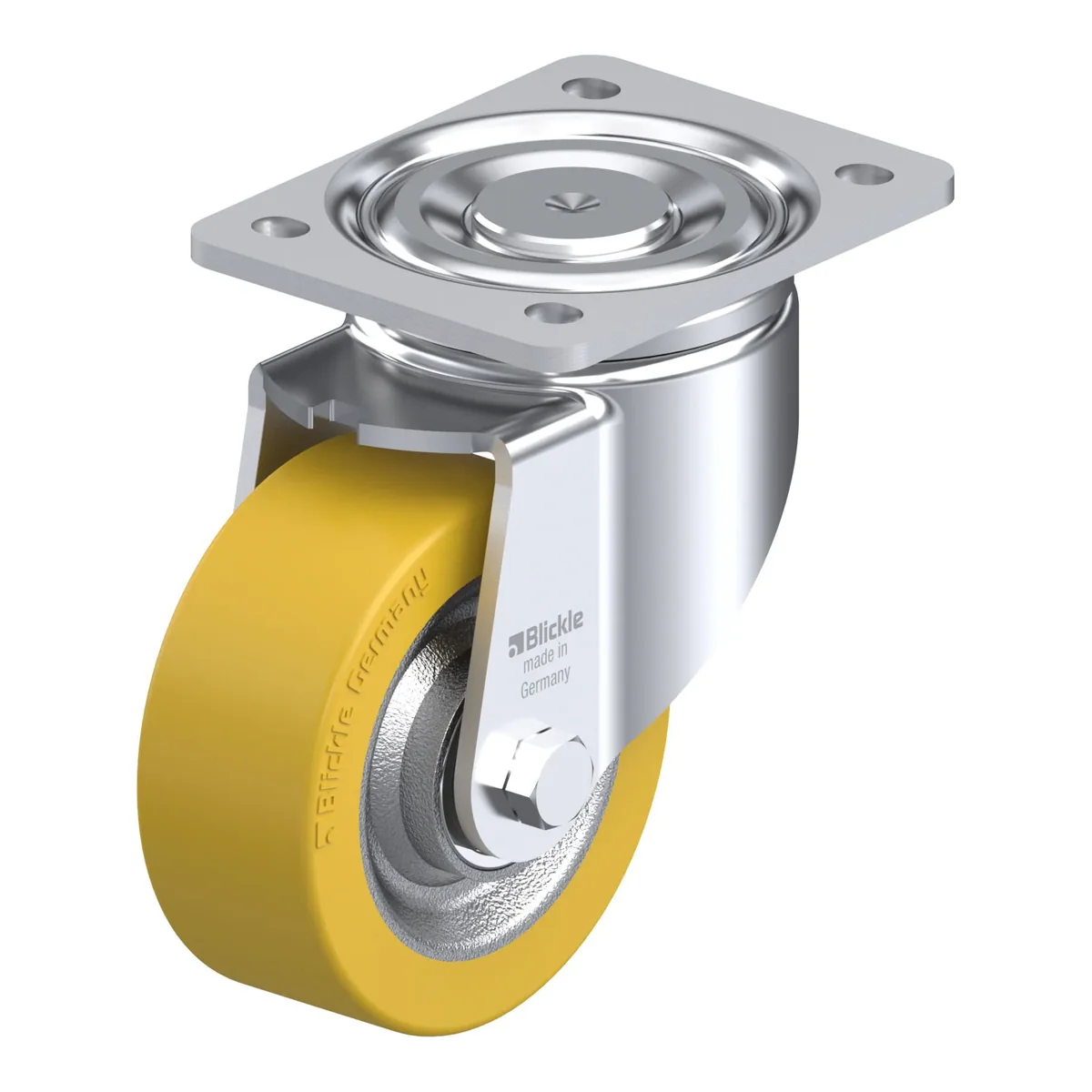

Okretni točkić, Blickle, Made in Germany
Ukratko: LH-SETH 125K je okretni točkić Blickle promjera 125 mm, širine 50 mm, nosivosti 500 kg pri 4 km/h (statički 1250 kg). Ukupna visina je 170 mm. Cijena je 274.05 KM s PDV-om.
Pressed steel swivel castor, heavy duty design, with top plate fitting, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with welded steel wheel centre
274.05 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 45302 |
|---|---|
| EAN | 4047526045302 |
| Promjer točka | 125 mm |
| Širina točka | 50 mm |
| Ukupna visina | 170 mm |
| Nosivost pri 4 km/h | 500 kg |
| Statička nosivost | 1250 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 55 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats
Točak
- tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
- wheel centre: thick-walled pressed steel, triple welded, with tubular steel hub, lacquered, colour silver
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
