Šifra 627182
LH-SVS 100K-3

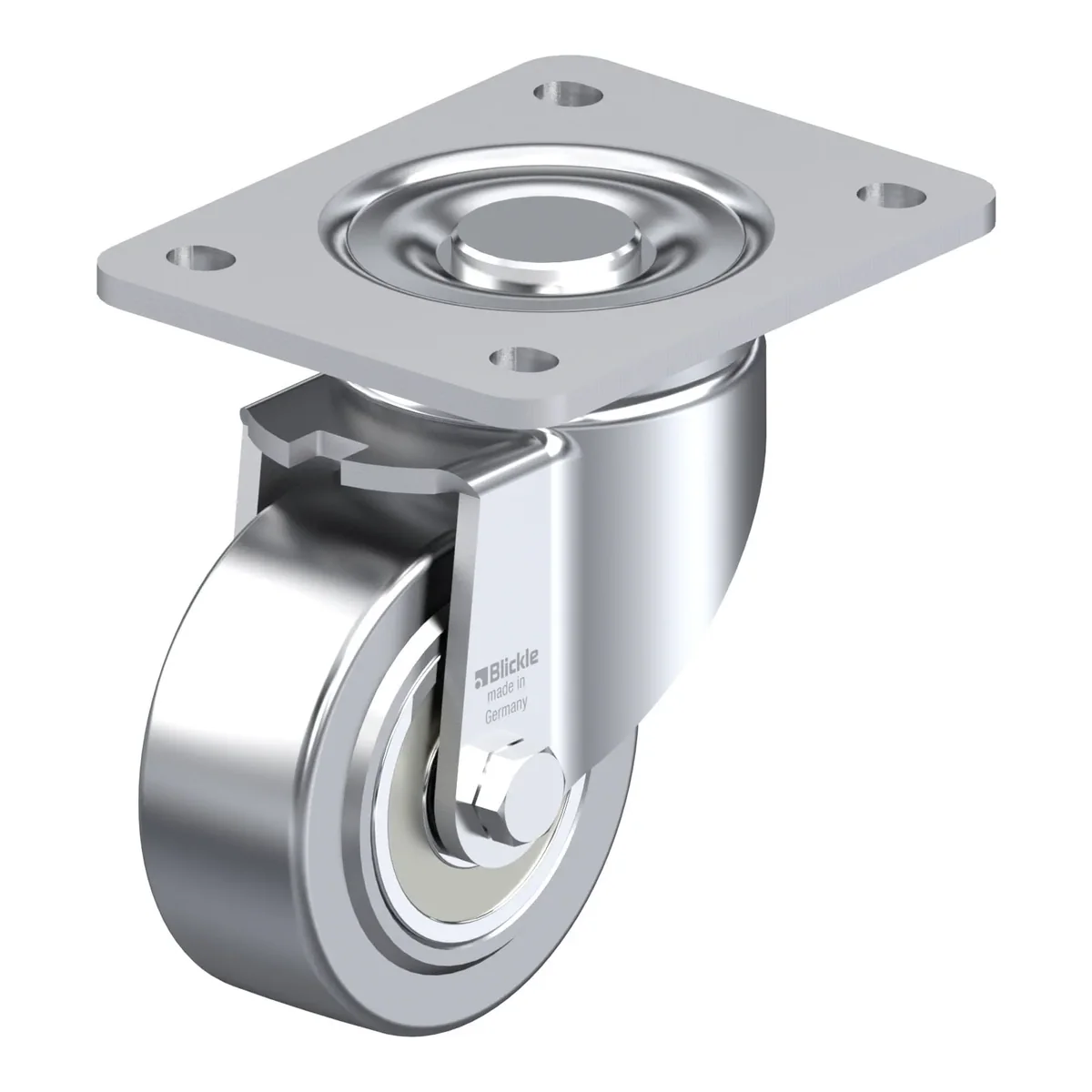

Okretni točkić, Blickle, Made in Germany
Ukratko: LH-SVS 100K-3 je okretni točkić Blickle promjera 100 mm, širine 40 mm, nosivosti 700 kg pri 4 km/h (statički 1750 kg). Ukupna visina je 140 mm. Cijena je 209.97 KM s PDV-om.
Pressed steel swivel castor, heavy duty design, with top plate fitting, extra heavy duty solid steel wheel
209.97 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 627182 |
|---|---|
| EAN | 4047526627188 |
| Promjer točka | 100 mm |
| Širina točka | 40 mm |
| Ukupna visina | 140 mm |
| Nosivost pri 4 km/h | 700 kg |
| Statička nosivost | 1750 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 45 mm |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats
Točak
- heat-treatable steel, hardness 190–230 HB, slightly crowned tread
Dodatne karakteristike
- chemical resistance to many aggressive substances
- operating temperature: -20 °C to +120 °C
- consider the surface pressure on sensitive floors due to high point loads
