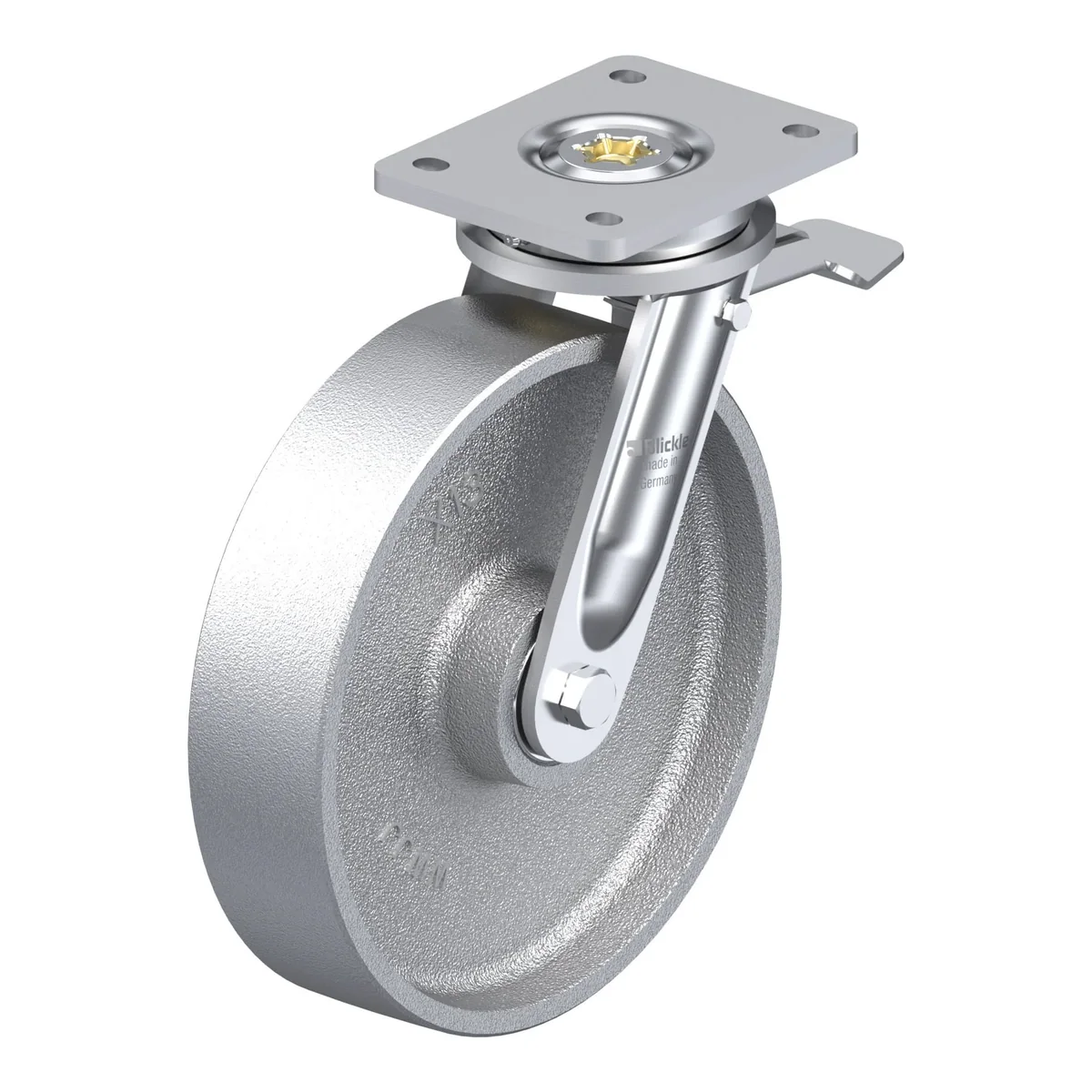

LIO-G 250IK-ST – okretni točkić Blickle

Šifra 937344

LIO-G 250IK-ST

Okretni točkić, Blickle, Made in Germany

Ukratko: LIO-G 250IK-ST je okretni točkić Blickle promjera 250 mm, širine 60 mm, nosivosti 1250 kg pri 4 km/h (statički 3125 kg). Ukupna visina je 295 mm. Cijena je 666.46 KM s PDV-om.

Heavy duty welded steel swivel castor, heat-resistant, with brake system 'stop-top', cast iron wheel

666.46 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla937344
EAN4047526392086
Promjer točka250 mm
Širina točka60 mm
Ukupna visina295 mm
Nosivost pri 4 km/h1250 kg
Statička nosivost3125 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset70 mm
ESD zaštitada

Nosač

  • solid welded steel construction
  • passivation may be altered slightly in high temperatures, corrosion protection will remain unaffected
  • double ball bearing in the swivel head
  • particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats
  • bolted and secured welded central kingpin, extremely strong
  • swivel head seal with labyrinth design
  • grease nipple
  • highly heat-resistant grease

Točak

  • rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver

Dodatne karakteristike

  • chemical resistance to many aggressive substances
  • consider the surface pressure on sensitive floors due to high point loads
  • to be lubricated according to the application temperature
