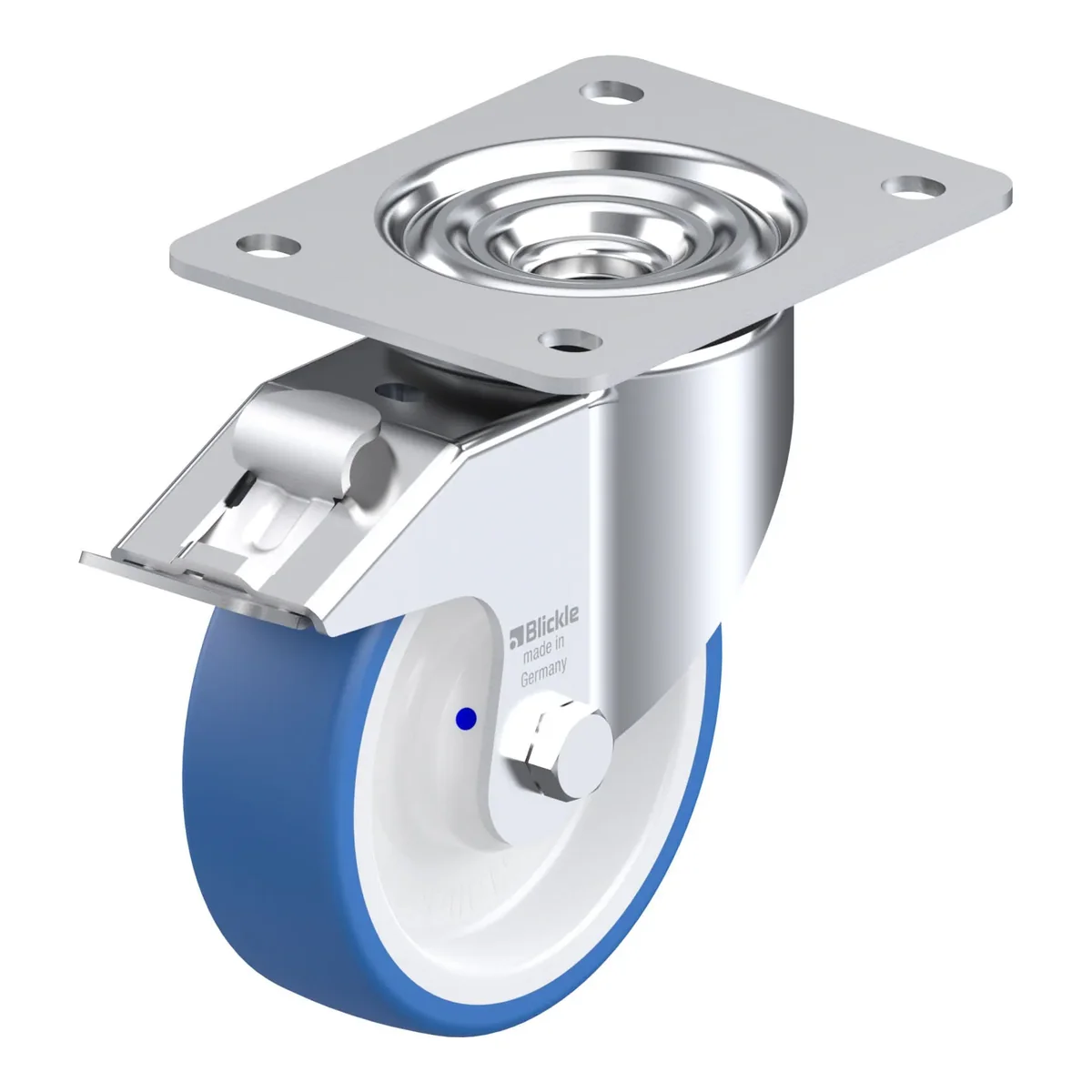

LK-POTHS 125XKA-3-FI – okretni točkić Blickle

Šifra 947962

LK-POTHS 125XKA-3-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: LK-POTHS 125XKA-3-FI je okretni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 275 kg pri 4 km/h (statički 687.5 kg). Ukupna visina je 155 mm. Cijena je 119.28 KM s PDV-om.

Pressed steel swivel castor, Heavy duty design, with brake system 'stop-fix', wheel, with soft thermoplastic polyurethane tread, with heavy duty nylon wheel centre, with synthetic thread guard, small

119.28 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla947962
EAN4047526419370
Promjer točka125 mm
Širina točka40 mm
Ukupna visina155 mm
Nosivost pri 4 km/h275 kg
Statička nosivost687.5 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset46 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 125x50 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 80 Shore A, colour blue, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour natural white

Dodatne karakteristike

  • with synthetic thread guard, small
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
