Šifra 848074
LKRA-VPA 80G-11-FI-ER15

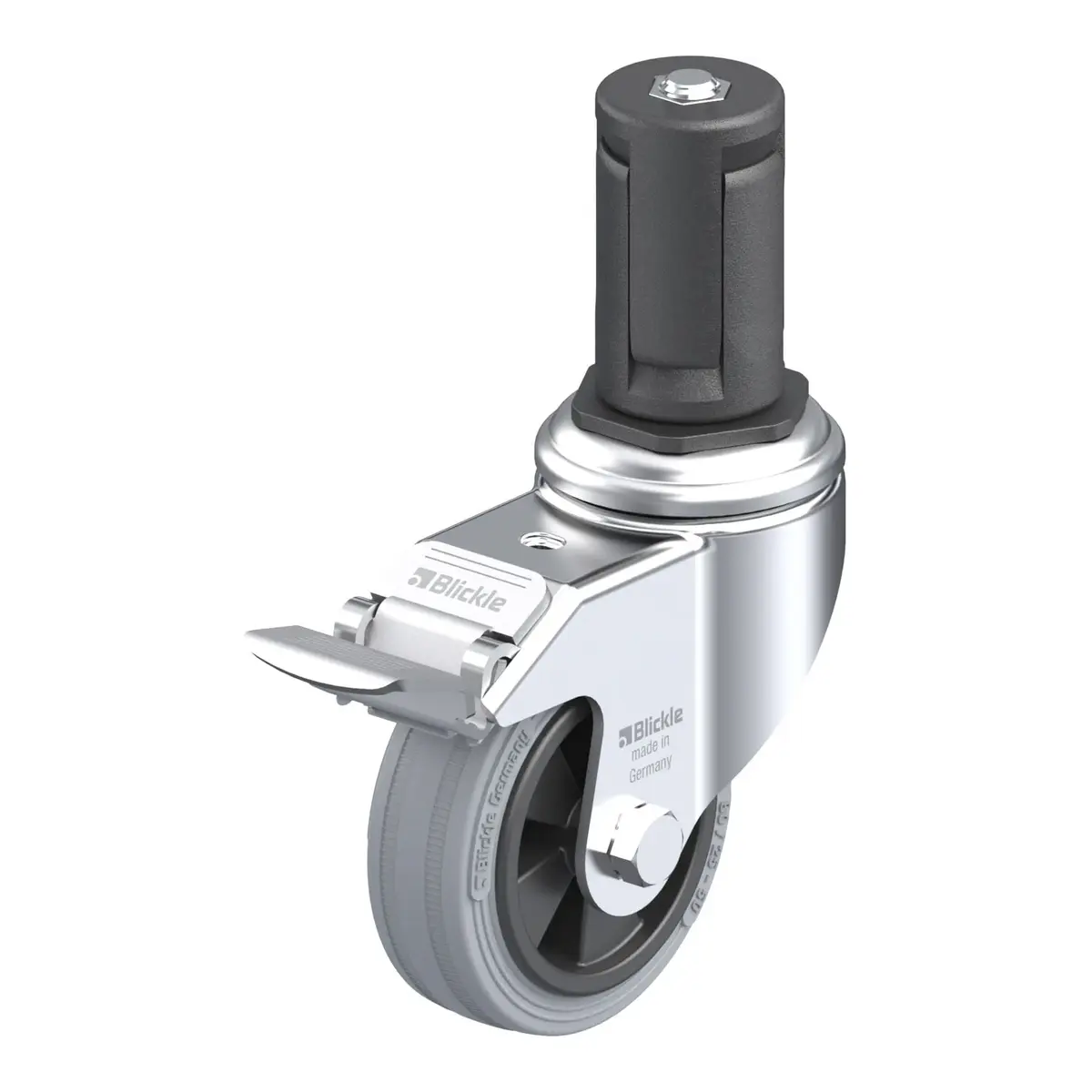

Okretni točkić, Blickle, Made in Germany
Ukratko: LKRA-VPA 80G-11-FI-ER15 je okretni točkić Blickle promjera 80 mm, širine 25 mm, nosivosti 80 kg pri 4 km/h (statički 200 kg). Ukupna visina je 111 mm. Cijena je 58.69 KM s PDV-om.
Light duty swivel castor, with bolt hole fitting, with synthetic expander, with brake system 'stop-fix', wheel, with solid rubber tyres, with synthetic rim
58.69 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 848074 |
|---|---|
| EAN | 4047526131401 |
| Promjer točka | 80 mm |
| Širina točka | 25 mm |
| Ukupna visina | 111 mm |
| Nosivost pri 4 km/h | 80 kg |
| Statička nosivost | 200 kg |
| Offset | 40 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: high-quality solid rubber, hardness 80 Shore A, colour grey, non-marking, non-staining
- rim: high-quality nylon 6 or polypropylene in the electrically conductive version "-EL", impact resistant, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
