Šifra 750859

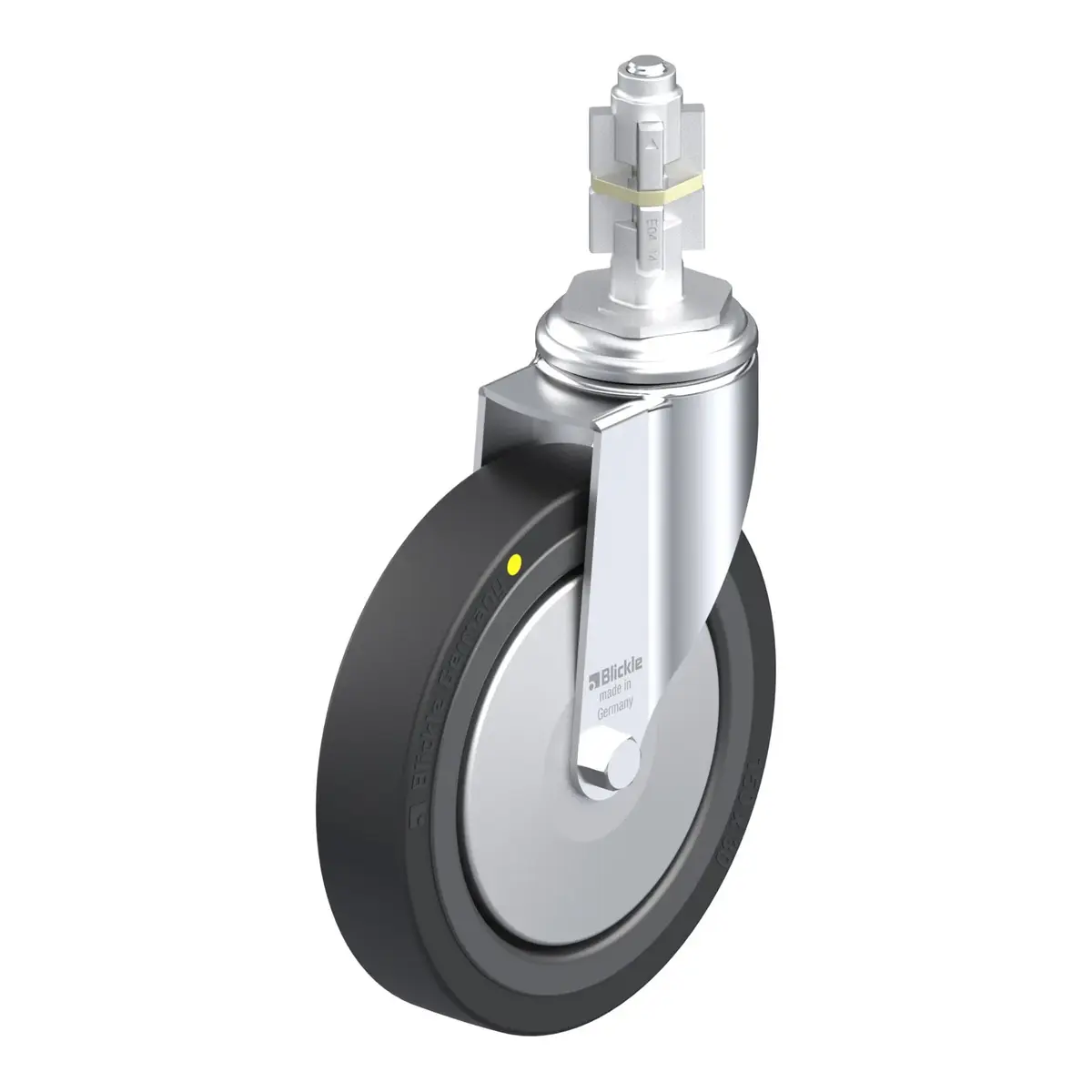

LKRA-VPA 150K-11-EL-FA-E14
Okretni točkić, Blickle, Made in Germany
Ukratko: LKRA-VPA 150K-11-EL-FA-E14 je okretni točkić Blickle promjera 150 mm, širine 30 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 185 mm. Cijena je 124.00 KM s PDV-om.
Light duty swivel castor, with bolt hole fitting, with metal expander, wheel, with solid rubber tyres, with synthetic rim, with steel thread guard, electrically conductive
124.00 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 750859 |
|---|---|
| EAN | 4047526036973 |
| Promjer točka | 150 mm |
| Širina točka | 30 mm |
| Ukupna visina | 185 mm |
| Nosivost pri 4 km/h | 100 kg |
| Statička nosivost | 250 kg |
| Offset | 40 mm |
| ESD zaštita | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: high-quality solid rubber, hardness 80 Shore A, colour black
- rim: high-quality polypropylene, impact resistant, colour black, Electrically conductive, colour black, marking
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
