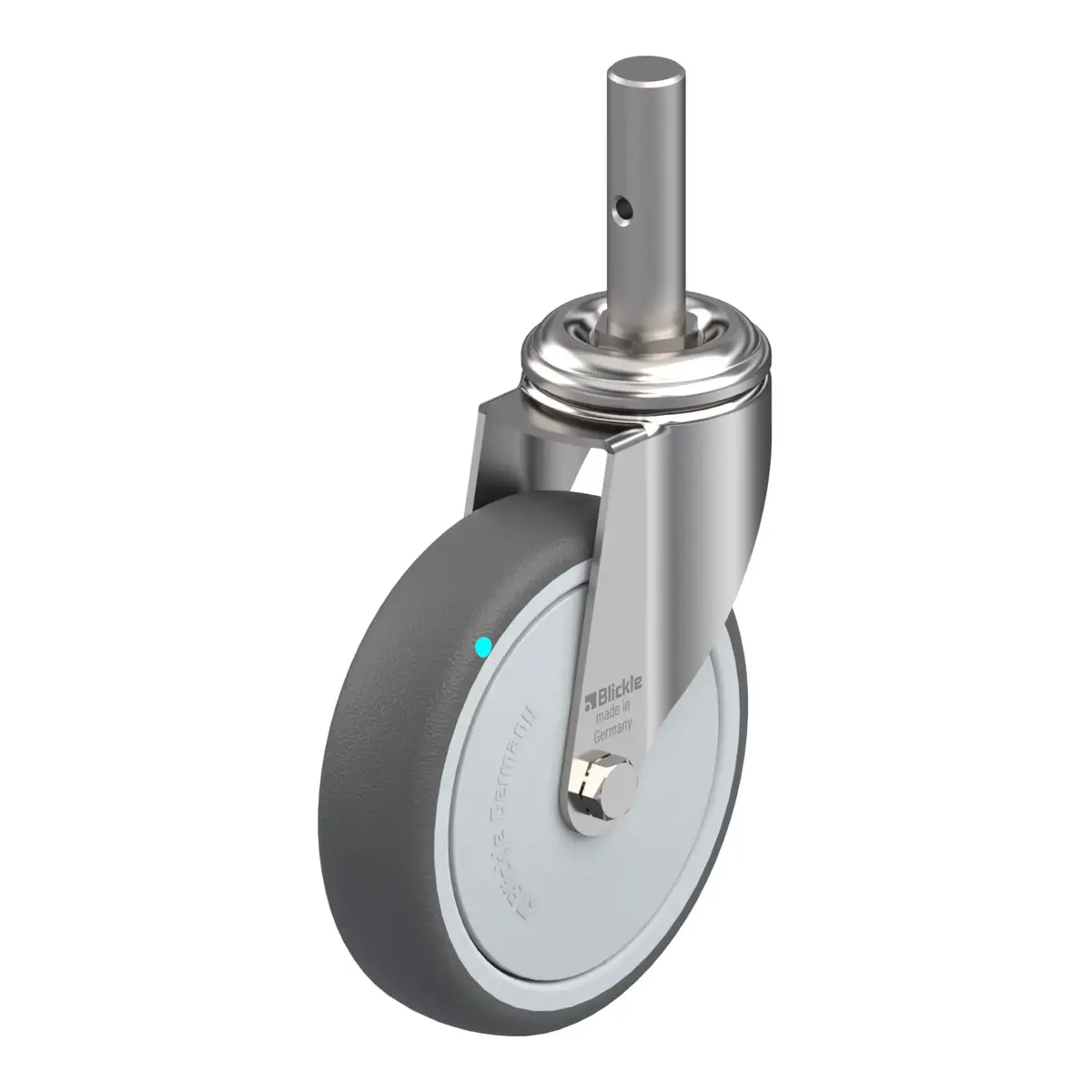

LKRXA-PATH 126KFD-ZAX51 – okretni točkić Blickle

Šifra 856445

LKRXA-PATH 126KFD-ZAX51

Okretni točkić, Blickle, Made in Germany

Ukratko: LKRXA-PATH 126KFD-ZAX51 je okretni točkić Blickle promjera 125 mm, širine 32 mm, nosivosti 120 kg pri 4 km/h (statički 300 kg). Ukupna visina je 158 mm. Cijena je 110.51 KM s PDV-om.

Stainless steel light duty swivel castor, with bolt hole, with stem fitting, wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, large, with additionals ball bea ring seals

110.51 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla856445
EAN4047526212919
Promjer točka125 mm
Širina točka32 mm
Ukupna visina158 mm
Nosivost pri 4 km/h120 kg
Statička nosivost300 kg
Offset40 mm
Ne ostavlja tragoveda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • large thread guard, with additional, ball bearing seals
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
