Šifra 607671
LER-VE 125R-FI-SG

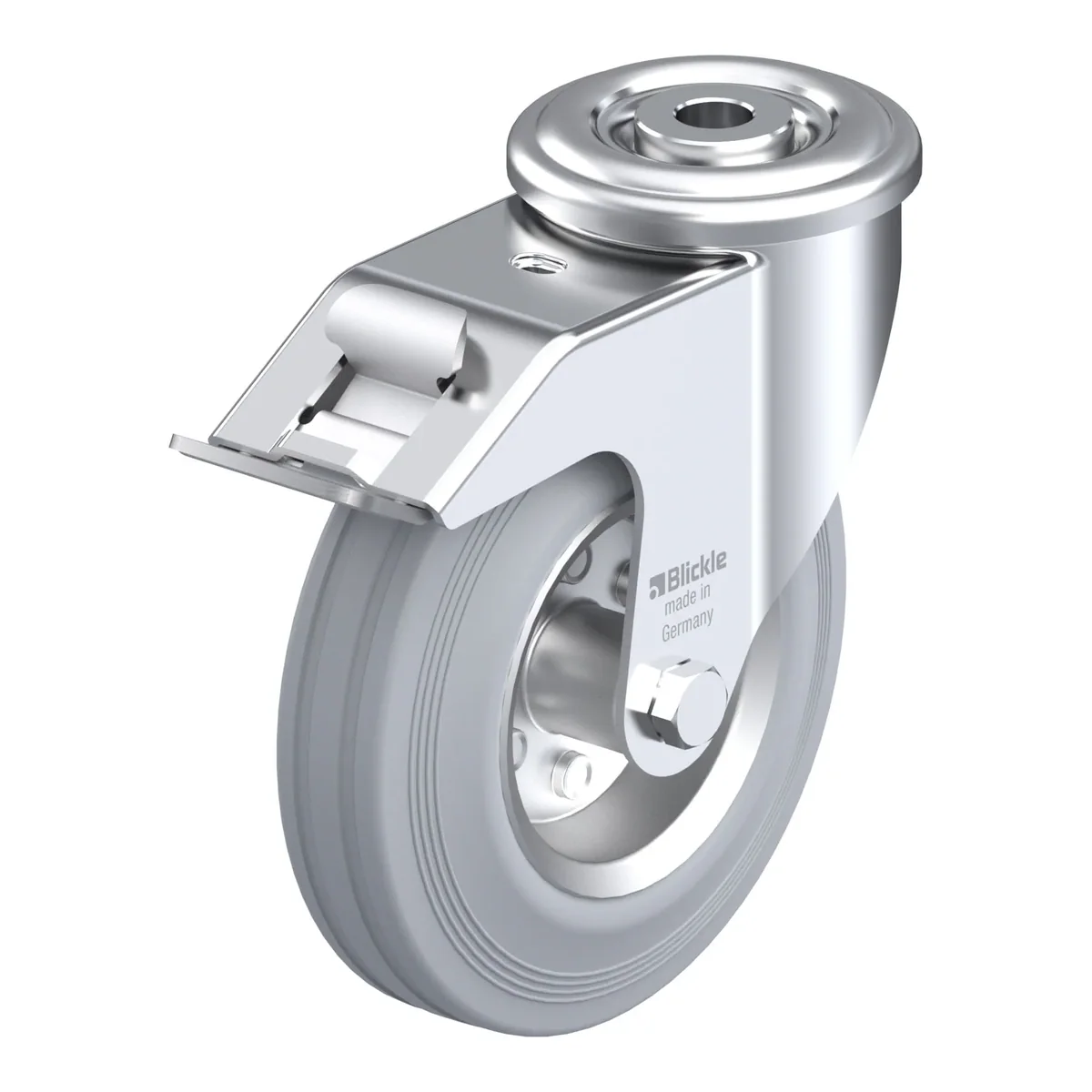

Okretni točkić, Blickle, Made in Germany
Ukratko: LER-VE 125R-FI-SG je okretni točkić Blickle promjera 125 mm, širine 37.5 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 150 mm. Cijena je 65.36 KM s PDV-om.
Pressed steel swivel castor, with bolt hole, with brake system 'stop-fix', wheel, with standard solid rubber tyre, with pressed steel rim, non-marking, grey
65.36 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 607671 |
|---|---|
| EAN | 4047526607678 |
| Promjer točka | 125 mm |
| Širina točka | 37.5 mm |
| Ukupna visina | 150 mm |
| Nosivost pri 4 km/h | 100 kg |
| Statička nosivost | 250 kg |
| Offset | 40 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour grey, non-marking
- rim: pressed steel, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
