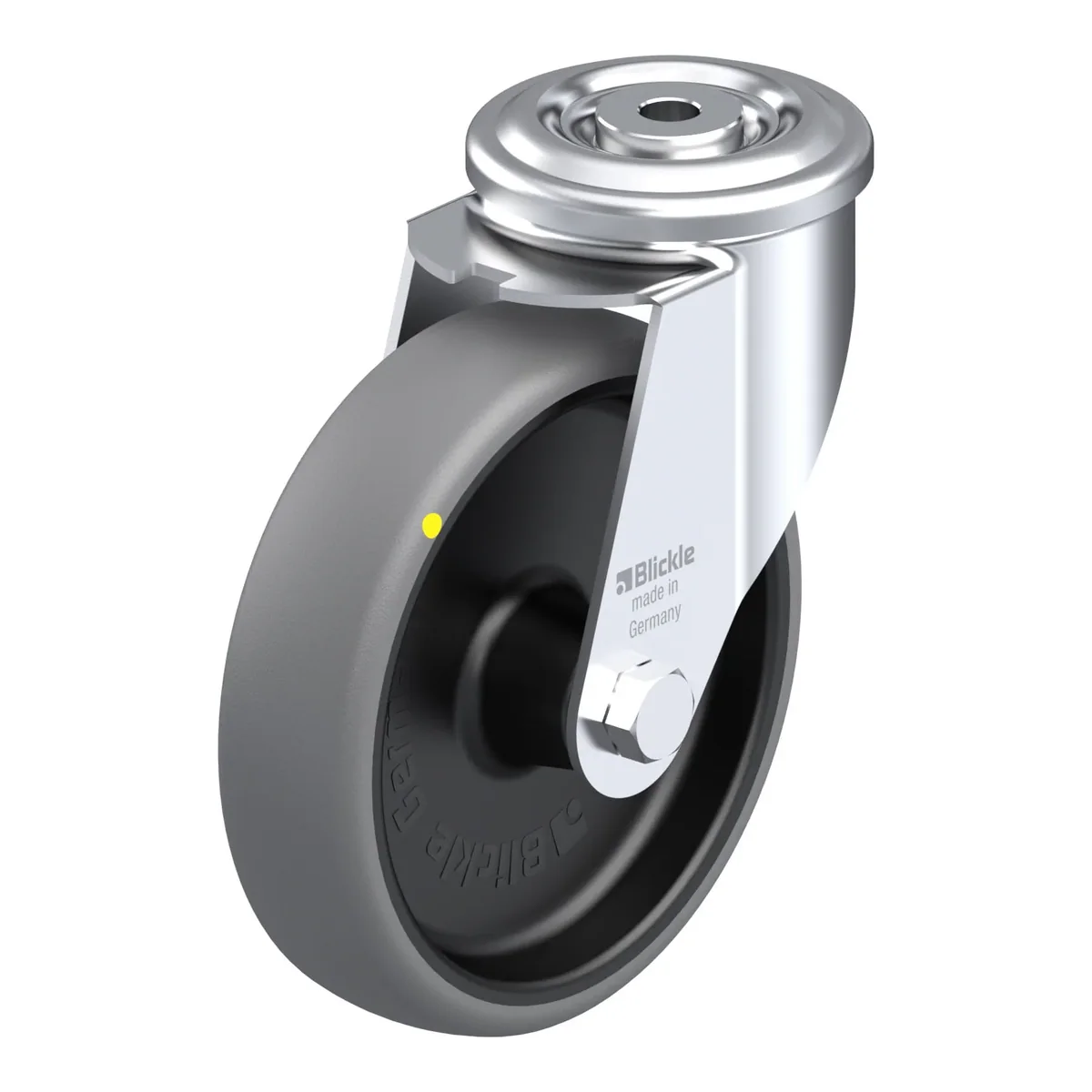

LER-TPA 160G-ELS – okretni točkić Blickle

Šifra 849899

LER-TPA 160G-ELS

Okretni točkić, Blickle, Made in Germany

Ukratko: LER-TPA 160G-ELS je okretni točkić Blickle promjera 160 mm, širine 40 mm, nosivosti 130 kg pri 4 km/h (statički 325 kg). Ukupna visina je 195 mm. Cijena je 119.82 KM s PDV-om.

Pressed steel swivel castor, with bolt hole, wheel, with thermoplastic rubber tread, with polypropylene wheel centre, electrically conductive, non-marking

119.82 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla849899
EAN4047526157296
Promjer točka160 mm
Širina točka40 mm
Ukupna visina195 mm
Nosivost pri 4 km/h130 kg
Statička nosivost325 kg
Offset54 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
  • wheel centre: high-quality polypropylene, impact resistant, colour black

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • tread contains oil, may stain sensitive surfaces. alternatives: series VPA, PATH
  • electrical conductivity (ohmic resistance) ≤ 104Ω
