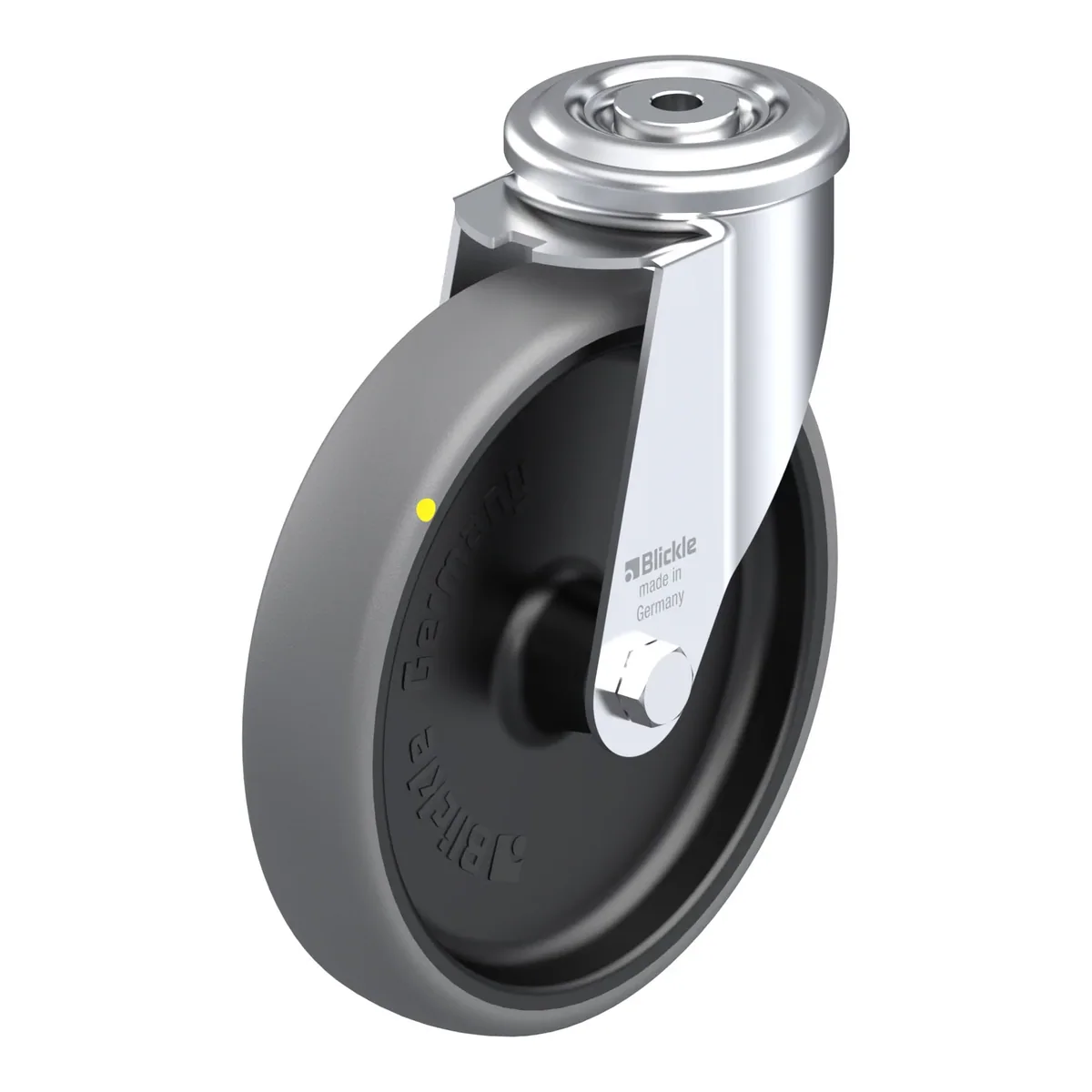

LER-TPA 200G-ELS – okretni točkić Blickle

Šifra 849907

LER-TPA 200G-ELS

Okretni točkić, Blickle, Made in Germany

Ukratko: LER-TPA 200G-ELS je okretni točkić Blickle promjera 200 mm, širine 40 mm, nosivosti 160 kg pri 4 km/h (statički 400 kg). Ukupna visina je 235 mm. Cijena je 134.51 KM s PDV-om.

Pressed steel swivel castor, with bolt hole, wheel, with thermoplastic rubber tread, with polypropylene wheel centre, electrically conductive, non-marking

134.51 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla849907
EAN4047526157388
Promjer točka200 mm
Širina točka40 mm
Ukupna visina235 mm
Nosivost pri 4 km/h160 kg
Statička nosivost400 kg
Offset54 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
  • wheel centre: high-quality polypropylene, impact resistant, colour black

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • tread contains oil, may stain sensitive surfaces. alternatives: series VPA, PATH
  • electrical conductivity (ohmic resistance) ≤ 104Ω
