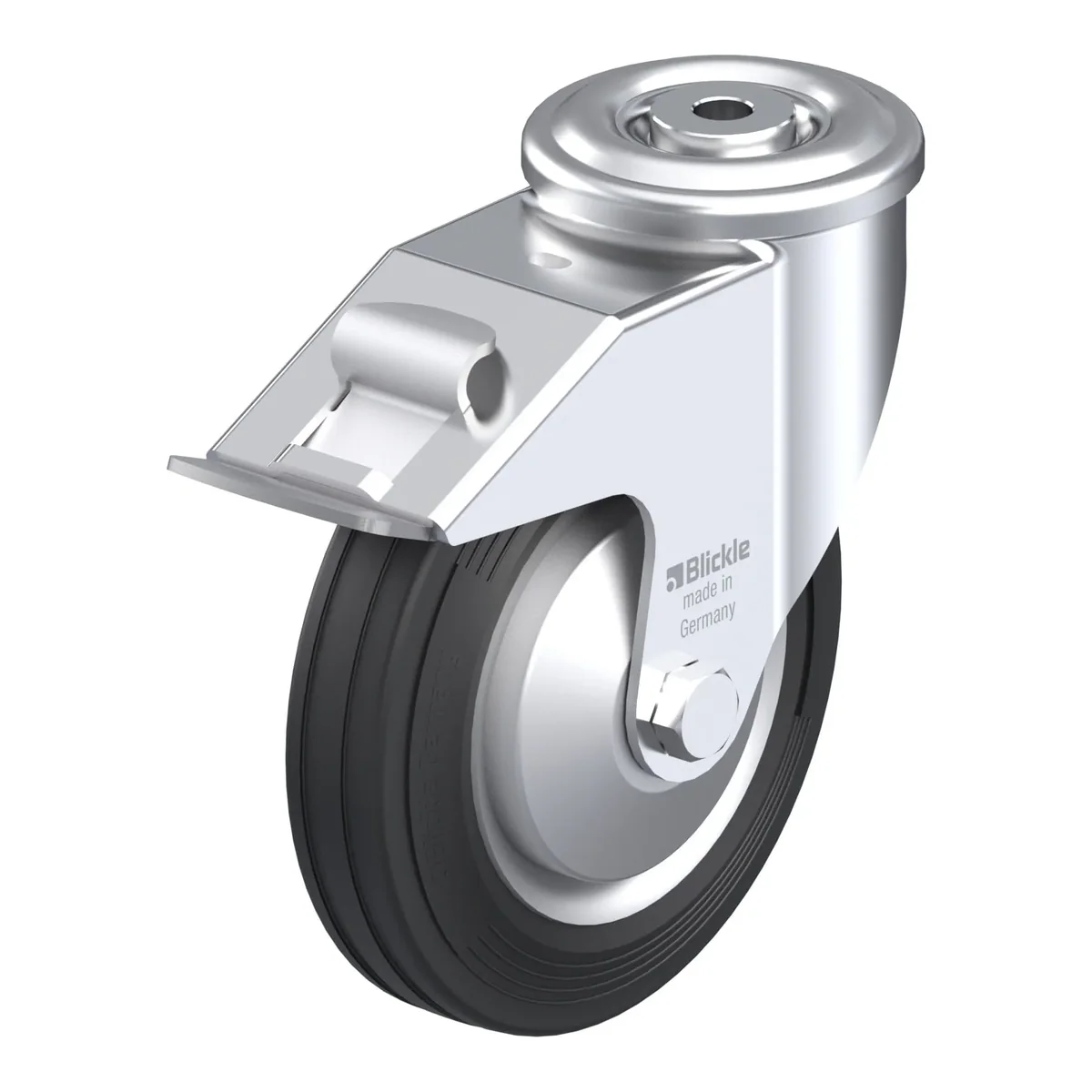

LER-VE 160R-FI-FA – okretni točkić Blickle

Šifra 749802

LER-VE 160R-FI-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LER-VE 160R-FI-FA je okretni točkić Blickle promjera 160 mm, širine 40 mm, nosivosti 135 kg pri 4 km/h (statički 337.5 kg). Ukupna visina je 195 mm. Cijena je 113.37 KM s PDV-om.

Pressed steel swivel castor, with bolt hole, with brake system 'stop-fix', wheel, with standard solid rubber tyre, with pressed steel rim, with steel thread guard

113.37 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla749802
EAN4047526017682
Promjer točka160 mm
Širina točka40 mm
Ukupna visina195 mm
Nosivost pri 4 km/h135 kg
Statička nosivost337.5 kg
Offset48 mm

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: standard solid rubber, hardness 80 Shore A, colour black
  • rim: pressed steel, zinc-plated, blue-passivated, Cr6-free

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
