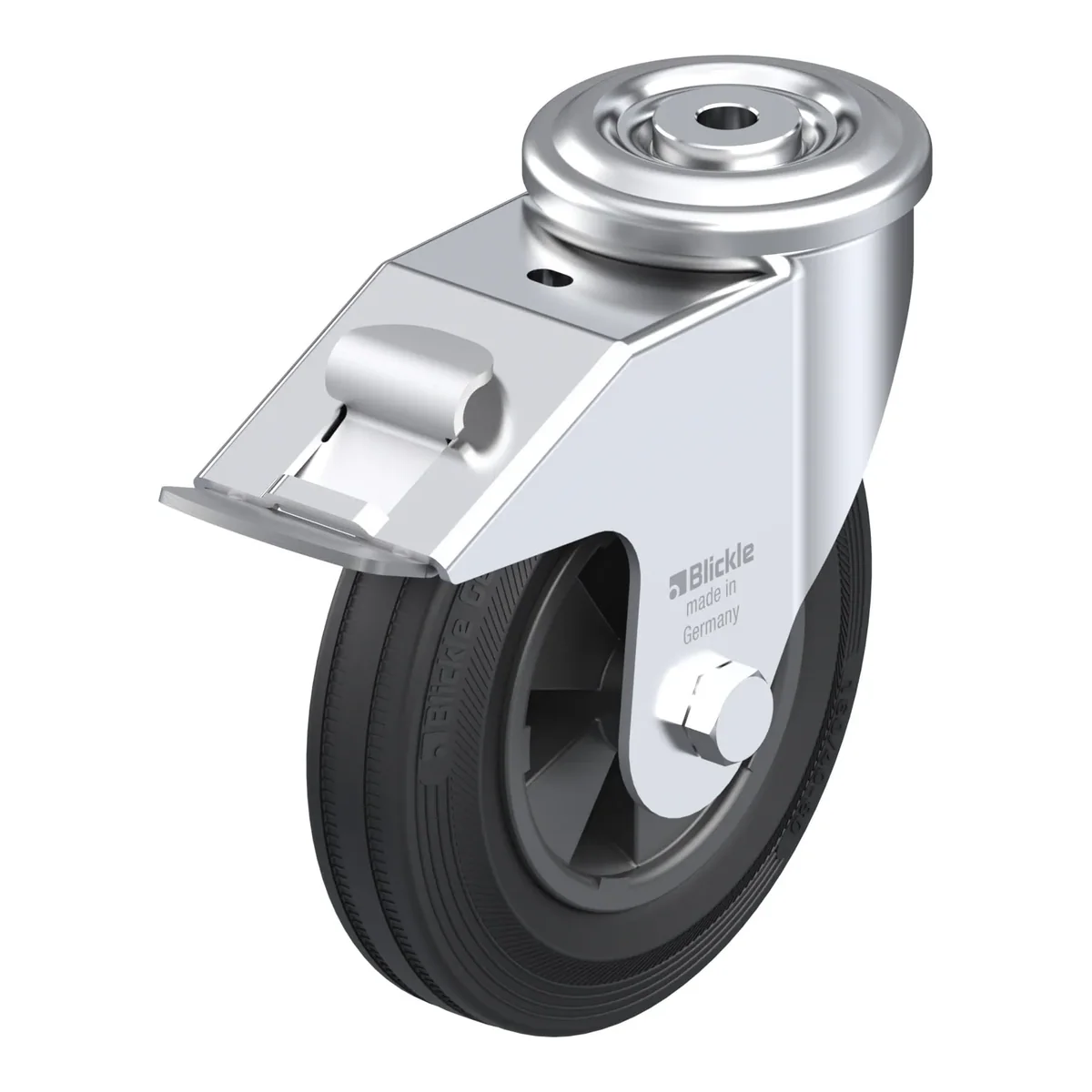

LER-VPP 160G-FI – okretni točkić Blickle

Šifra 554196

LER-VPP 160G-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: LER-VPP 160G-FI je okretni točkić Blickle promjera 160 mm, širine 40 mm, nosivosti 135 kg pri 4 km/h (statički 340 kg). Ukupna visina je 195 mm. Radi na temperaturi od -20 °C do 60 °C. Cijena je 93.12 KM s PDV-om.

Pressed steel swivel castor, with bolt hole, with brake system 'stop-fix', wheel, with standard solid rubber tyre, with synthetic rim

93.12 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla554196
EAN4047526554194
Promjer točka160 mm
Širina točka40 mm
Ukupna visina195 mm
Nosivost pri 4 km/h135 kg
Statička nosivost340 kg
Offset48 mm
Tvrdoća gazišta80 Shore A
Radna temperatura-20 °C do 60 °C
Težina2 kg

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: standard solid rubber, hardness 80 Shore A, colour black
  • rim: high-quality polypropylene, impact resistant, colour black

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
