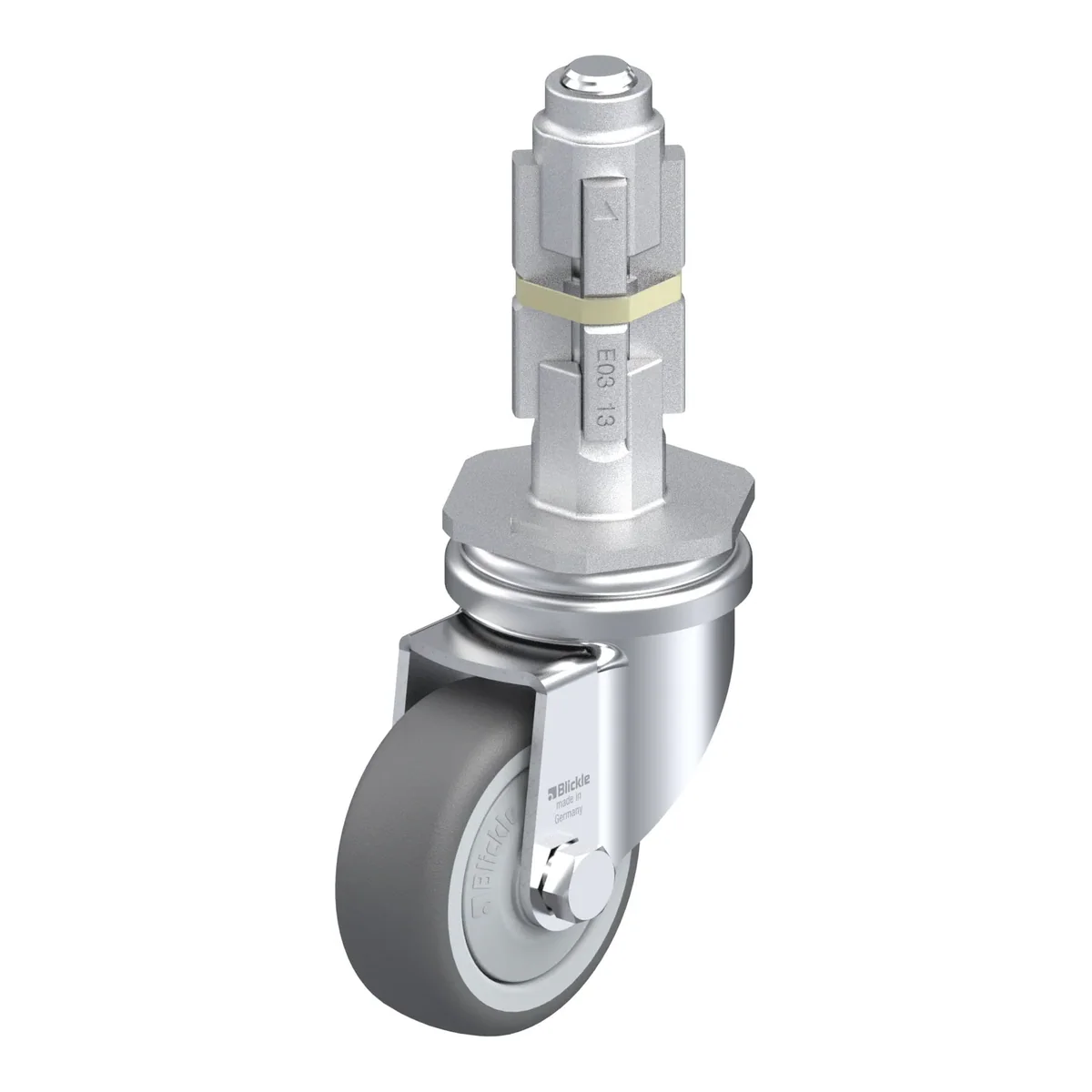

LRA-PATH 50KF-E03 – okretni točkić Blickle

Šifra 848575

LRA-PATH 50KF-E03

Okretni točkić, Blickle, Made in Germany

Ukratko: LRA-PATH 50KF-E03 je okretni točkić Blickle promjera 50 mm, širine 19 mm, nosivosti 75 kg pri 4 km/h (statički 190 kg). Ukupna visina je 72 mm. Radi na temperaturi od -20 °C do 70 °C. Cijena je 37.39 KM s PDV-om.

Light duty swivel castor, with bolt hole fitting, with metal expander, wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, large

37.39 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla848575
EAN4047526138868
Promjer točka50 mm
Širina točka19 mm
Ukupna visina72 mm
Nosivost pri 4 km/h75 kg
Statička nosivost190 kg
Offset23 mm
Tvrdoća gazišta94 Shore A
Radna temperatura-20 °C do 70 °C
Težina0.3 kg
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • with synthetic thread guard, large
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
