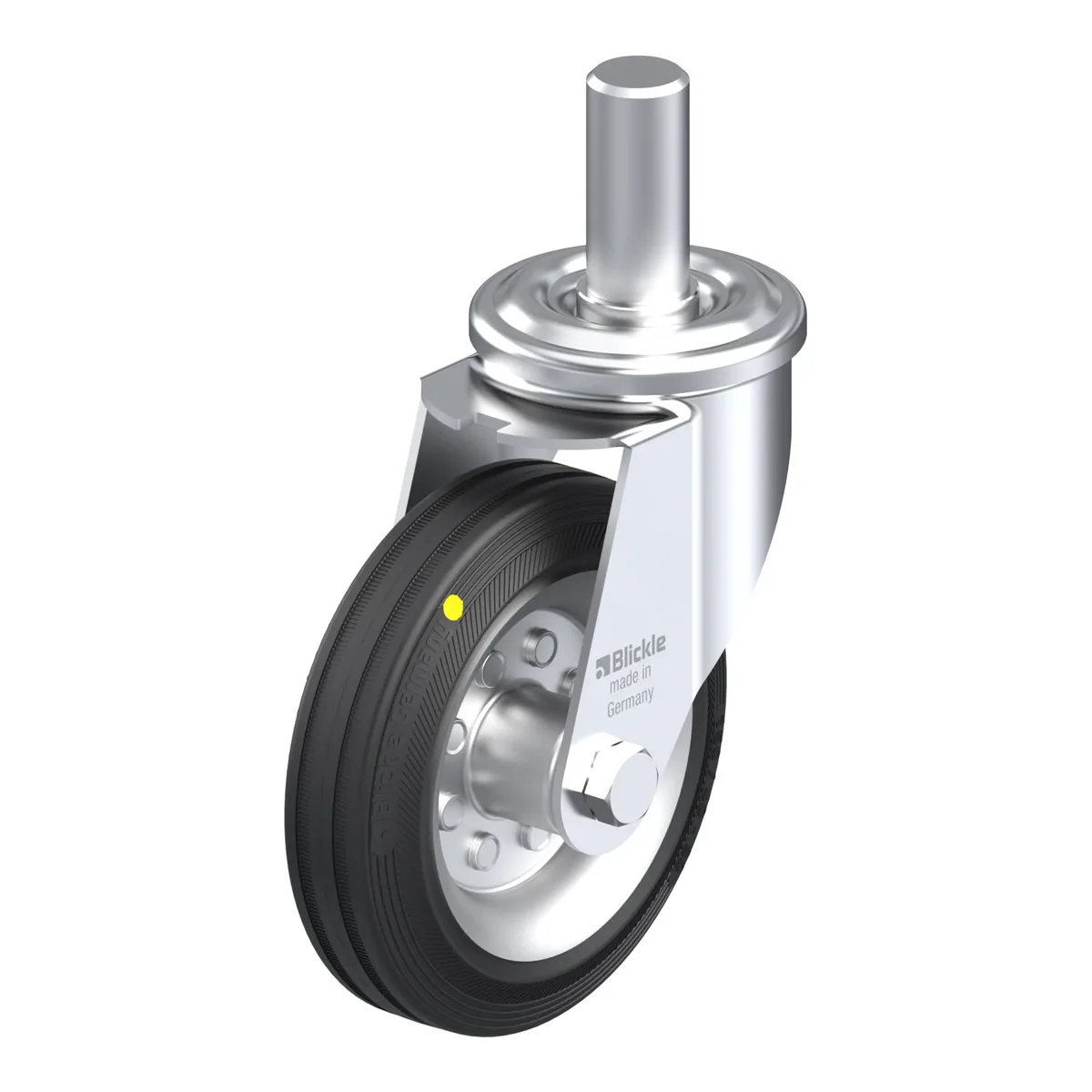

LEZ-VE 150R-27-EL – okretni točkić Blickle

Šifra 749860

LEZ-VE 150R-27-EL

Okretni točkić, Blickle, Made in Germany

Ukratko: LEZ-VE 150R-27-EL je okretni točkić Blickle promjera 150 mm, širine 40 mm, nosivosti 135 kg pri 4 km/h (statički 340 kg). Ukupna visina je 190 mm. Radi na temperaturi od -25 °C do 80 °C. Cijena je 105.05 KM s PDV-om.

Pressed steel swivel castor, with stem fitting, wheel, with standard solid rubber tyre, with pressed steel rim, electrically conductive

105.05 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla749860
EAN4047526018818
Promjer točka150 mm
Širina točka40 mm
Ukupna visina190 mm
Nosivost pri 4 km/h135 kg
Statička nosivost340 kg
Offset54 mm
Tvrdoća gazišta80 Shore A
Radna temperatura-25 °C do 80 °C
Težina2 kg
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
  • steel plug-in stem and central kingpin bolted and secured

Točak

  • tyre: standard solid rubber, hardness 80 Shore A, colour black
  • rim: pressed steel, zinc-plated, blue-passivated, Cr6-free

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
