Šifra 300012

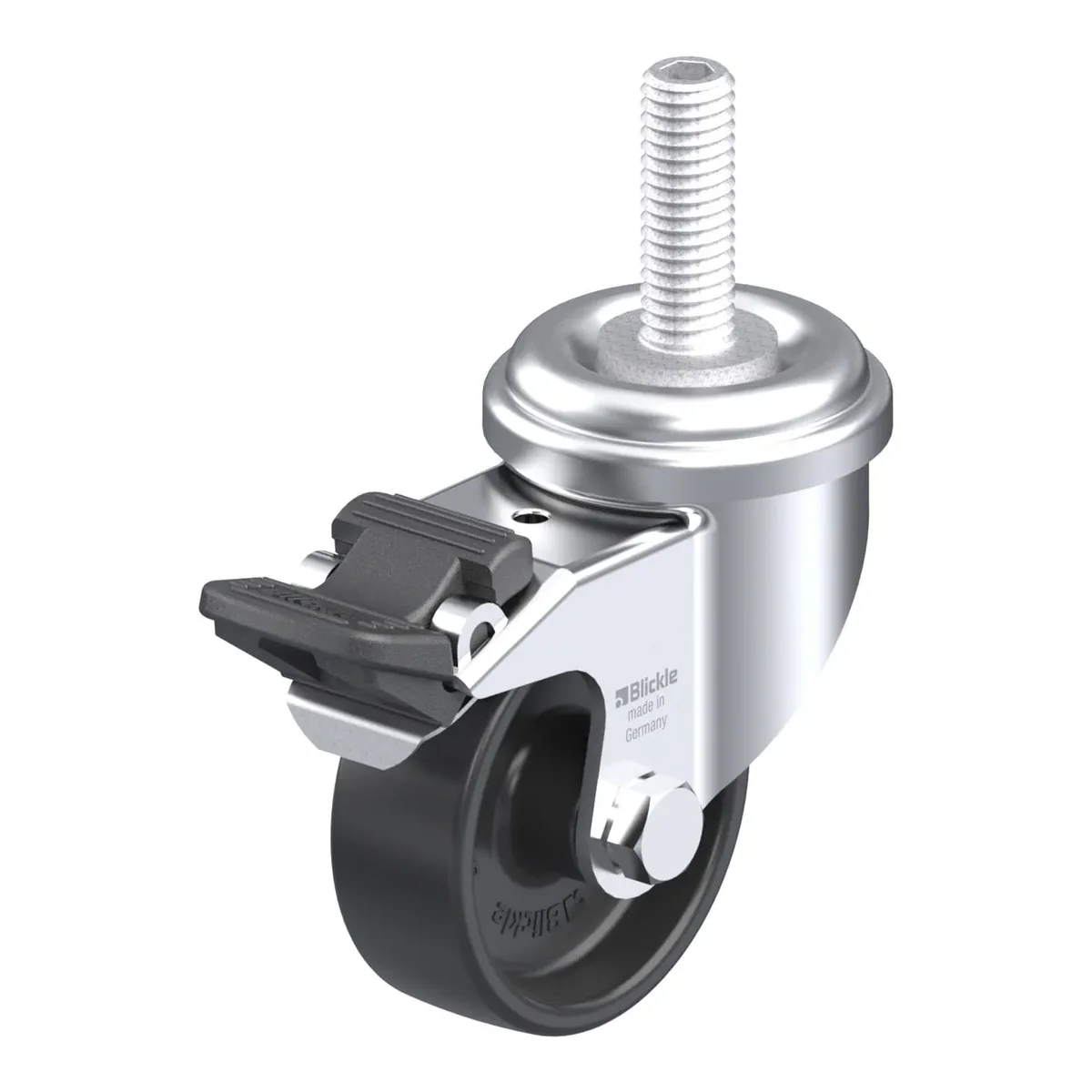

LRA-POA 50G-FI-GS10
Okretni točkić, Blickle, Made in Germany
Ukratko: LRA-POA 50G-FI-GS10 je okretni točkić Blickle promjera 50 mm, širine 18 mm, nosivosti 75 kg pri 4 km/h (statički 190 kg). Ukupna visina je 69 mm. Radi na temperaturi od -25 °C do 80 °C. Cijena je 16.60 KM s PDV-om.
Light duty swivel castor, with bolt hole fitting, with threaded pin, with brake system 'stop-fix', nylon wheel
16.60 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 300012 |
|---|---|
| EAN | 4047526300012 |
| Promjer točka | 50 mm |
| Širina točka | 18 mm |
| Ukupna visina | 69 mm |
| Nosivost pri 4 km/h | 75 kg |
| Statička nosivost | 190 kg |
| Offset | 24 mm |
| Tvrdoća gazišta | 70 Shore A |
| Radna temperatura | -25 °C do 80 °C |
| Težina | 0.2 kg |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
