MHC Tradetočkići.ba

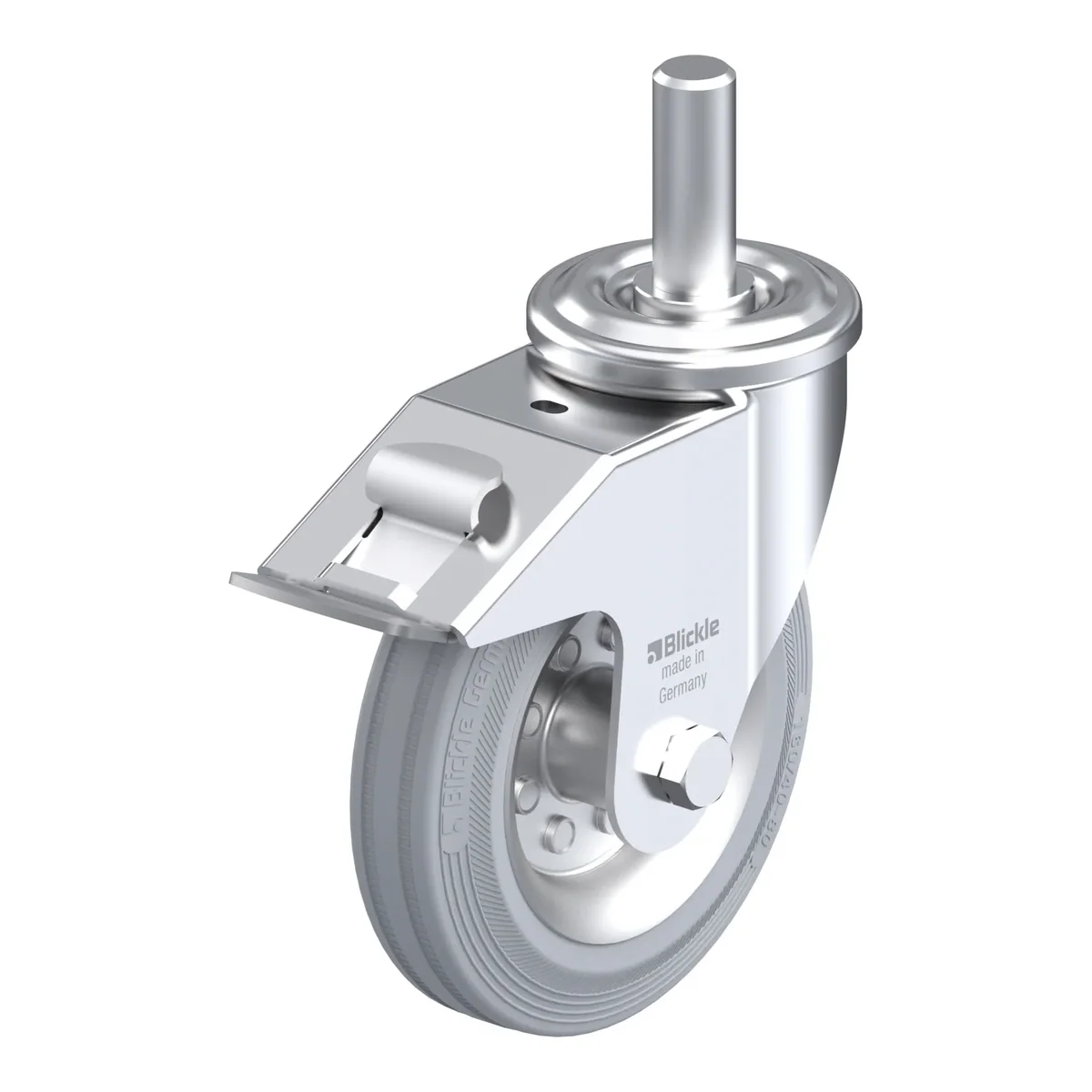

LEZ-VE 160R-22-FI-SG – okretni točkić Blickle

Šifra 739135

LEZ-VE 160R-22-FI-SG

Okretni točkić, Blickle, Made in Germany

Ukratko: LEZ-VE 160R-22-FI-SG je okretni točkić Blickle promjera 160 mm, širine 40 mm, nosivosti 135 kg pri 4 km/h (statički 340 kg). Ukupna visina je 195 mm. Radi na temperaturi od -25 °C do 80 °C. Cijena je 124.44 KM s PDV-om.

Pressed steel swivel castor, with stem fitting, with brake system 'stop-fix', wheel, with standard solid rubber tyre, with pressed steel rim, non-marking, grey

124.44 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla739135
EAN4047526018436
Promjer točka160 mm
Širina točka40 mm
Ukupna visina195 mm
Nosivost pri 4 km/h135 kg
Statička nosivost340 kg
Offset48 mm
Tvrdoća gazišta80 Shore A
Radna temperatura-25 °C do 80 °C
Težina2.7 kg
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
  • steel plug-in stem and central kingpin bolted and secured

Točak

  • tyre: standard solid rubber, hardness 80 Shore A, colour grey, non-marking
  • rim: pressed steel, zinc-plated, blue-passivated, Cr6-free

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
