Šifra 755355
LEXR-PO 75XR-FI

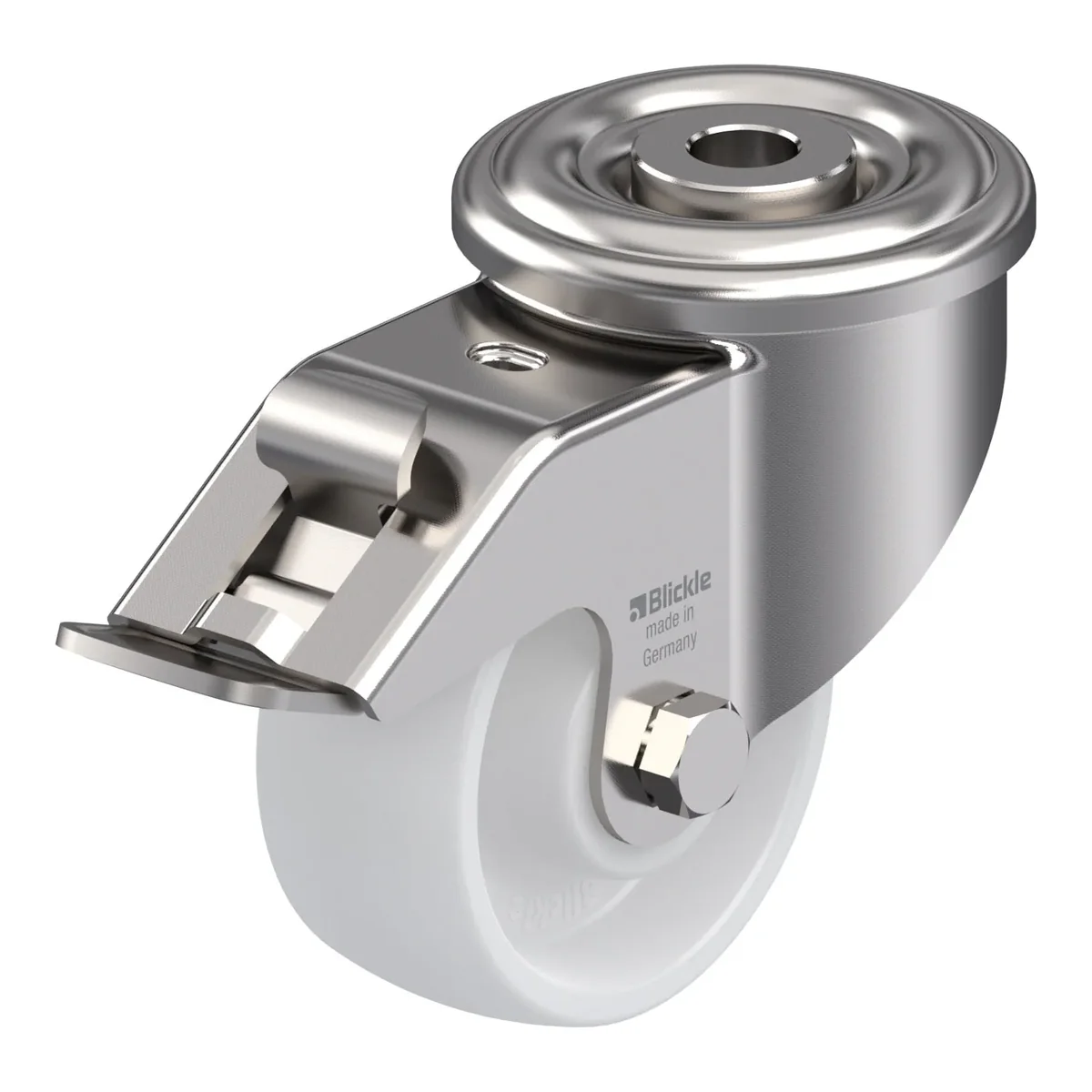

Okretni točkić, Blickle, Made in Germany
Ukratko: LEXR-PO 75XR-FI je okretni točkić Blickle promjera 75 mm, širine 32 mm, nosivosti 150 kg pri 4 km/h (statički 375 kg). Ukupna visina je 100 mm. Cijena je 103.44 KM s PDV-om.
Stainless steel swivel castor, with bolt hole fitting, with brake system 'stop-fix', nylon wheel
103.44 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 755355 |
|---|---|
| EAN | 4047526078539 |
| Promjer točka | 75 mm |
| Širina točka | 32 mm |
| Ukupna visina | 100 mm |
| Nosivost pri 4 km/h | 150 kg |
| Statička nosivost | 375 kg |
| Offset | 41 mm |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
Nosač
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
- all parts including axle material are corrosion-resistant
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
