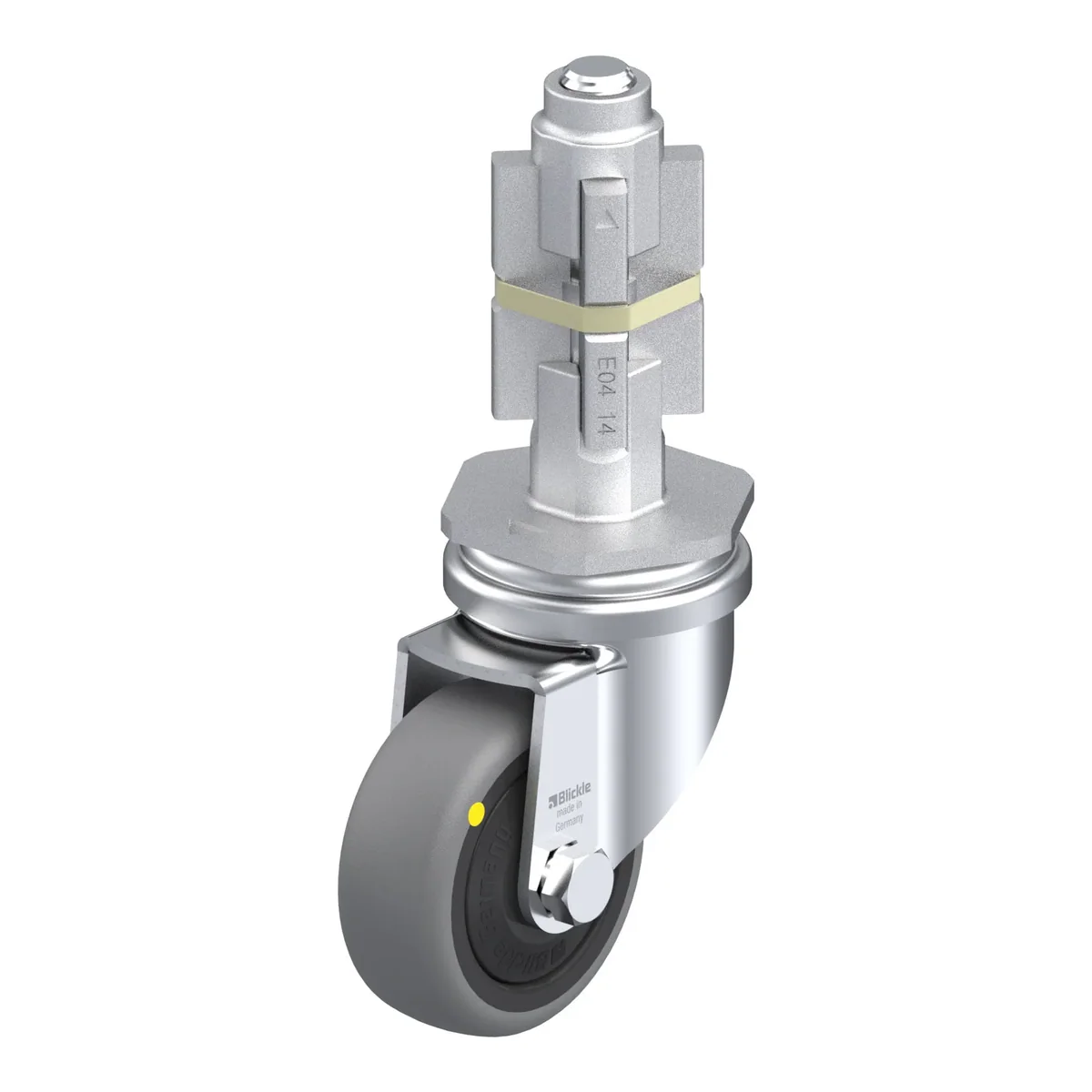

LRA-TPA 50KF-ELS-E04 – okretni točkić Blickle

Šifra 751101

LRA-TPA 50KF-ELS-E04

Okretni točkić, Blickle, Made in Germany

Ukratko: LRA-TPA 50KF-ELS-E04 je okretni točkić Blickle promjera 50 mm, širine 19 mm, nosivosti 30 kg pri 4 km/h (statički 75 kg). Ukupna visina je 72 mm. Radi na temperaturi od -20 °C do 60 °C. Cijena je 40.90 KM s PDV-om.

Light duty swivel castor, with bolt hole fitting, with metal expander, wheel, with thermoplastic rubber tread, with polypropylene wheel centre, with synthetic thread guard, large, electrically conductive , non-marking

40.90 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla751101
EAN4047526042738
Promjer točka50 mm
Širina točka19 mm
Ukupna visina72 mm
Nosivost pri 4 km/h30 kg
Statička nosivost75 kg
Offset23 mm
Tvrdoća gazišta85 Shore A
Radna temperatura-20 °C do 60 °C
Težina0.3 kg
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
  • wheel centre: high-quality polypropylene, impact resistant, colour black

Dodatne karakteristike

  • with synthetic thread guard, large
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • tread contains oil, may stain sensitive surfaces. alternatives: series VPA, PATH
  • electrical conductivity (ohmic resistance) ≤ 104Ω
