Šifra 848525

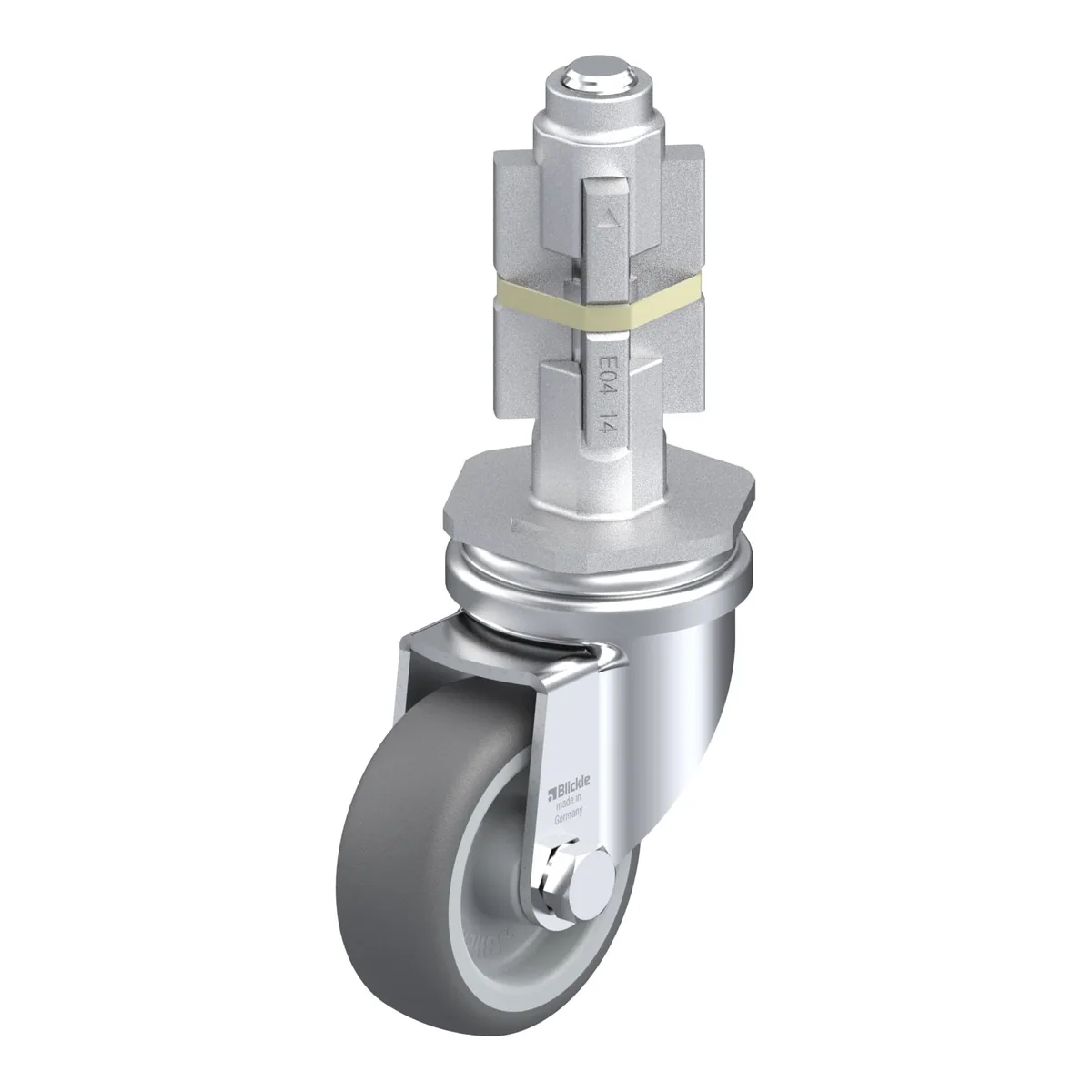

LRA-PATH 50G-E04
Okretni točkić, Blickle, Made in Germany
Ukratko: LRA-PATH 50G-E04 je okretni točkić Blickle promjera 50 mm, širine 19 mm, nosivosti 75 kg pri 4 km/h (statički 187.5 kg). Ukupna visina je 72 mm. Cijena je 32.85 KM s PDV-om.
Light duty swivel castor, with bolt hole fitting, with metal expander, wheel, with thermoplastic polyurethane tread, with nylon wheel centre
32.85 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 848525 |
|---|---|
| EAN | 4047526138073 |
| Promjer točka | 50 mm |
| Širina točka | 19 mm |
| Ukupna visina | 72 mm |
| Nosivost pri 4 km/h | 75 kg |
| Statička nosivost | 187.5 kg |
| Offset | 23 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour silver grey
Dodatne karakteristike
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
