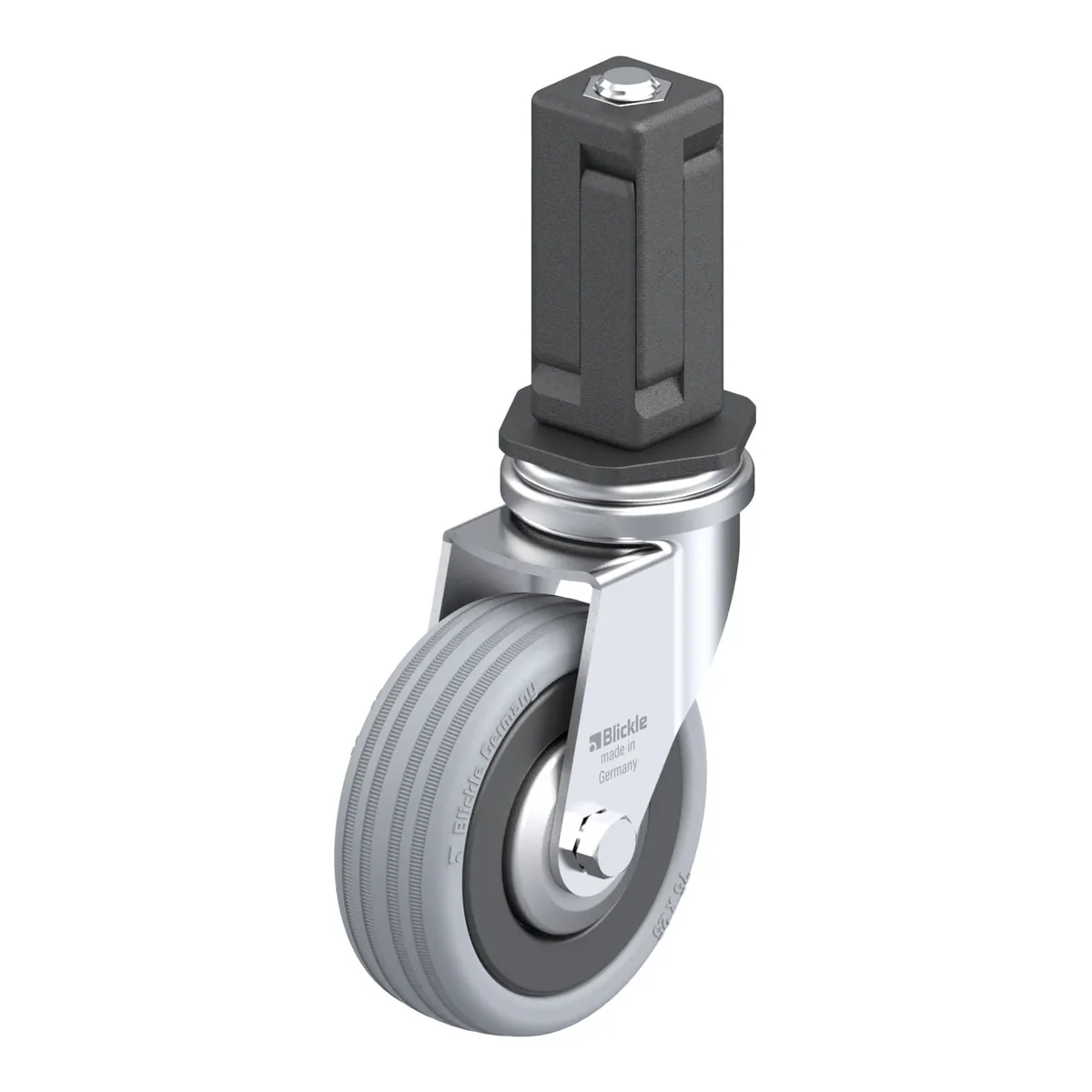

Šifra 848049
LRA-VPA 75K-FA-EV04
Okretni točkić, Blickle, Made in Germany
Ukratko: LRA-VPA 75K-FA-EV04 je okretni točkić Blickle promjera 75 mm, širine 25 mm, nosivosti 60 kg pri 4 km/h (statički 150 kg). Ukupna visina je 101 mm. Cijena je 46.06 KM s PDV-om.
Light duty swivel castor, with bolt hole fitting, with synthetic expander, wheel, with solid rubber tyres, with synthetic rim, with steel thread guard
46.06 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 848049 |
|---|---|
| EAN | 4047526131159 |
| Promjer točka | 75 mm |
| Širina točka | 25 mm |
| Ukupna visina | 101 mm |
| Nosivost pri 4 km/h | 60 kg |
| Statička nosivost | 150 kg |
| Offset | 29 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: high-quality solid rubber, hardness 80 Shore A, colour grey, non-marking, non-staining
- rim: high-quality nylon 6 or polypropylene in the electrically conductive version "-EL", impact resistant, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
