Šifra 314666
LRA-VPA 75K-EL-ES

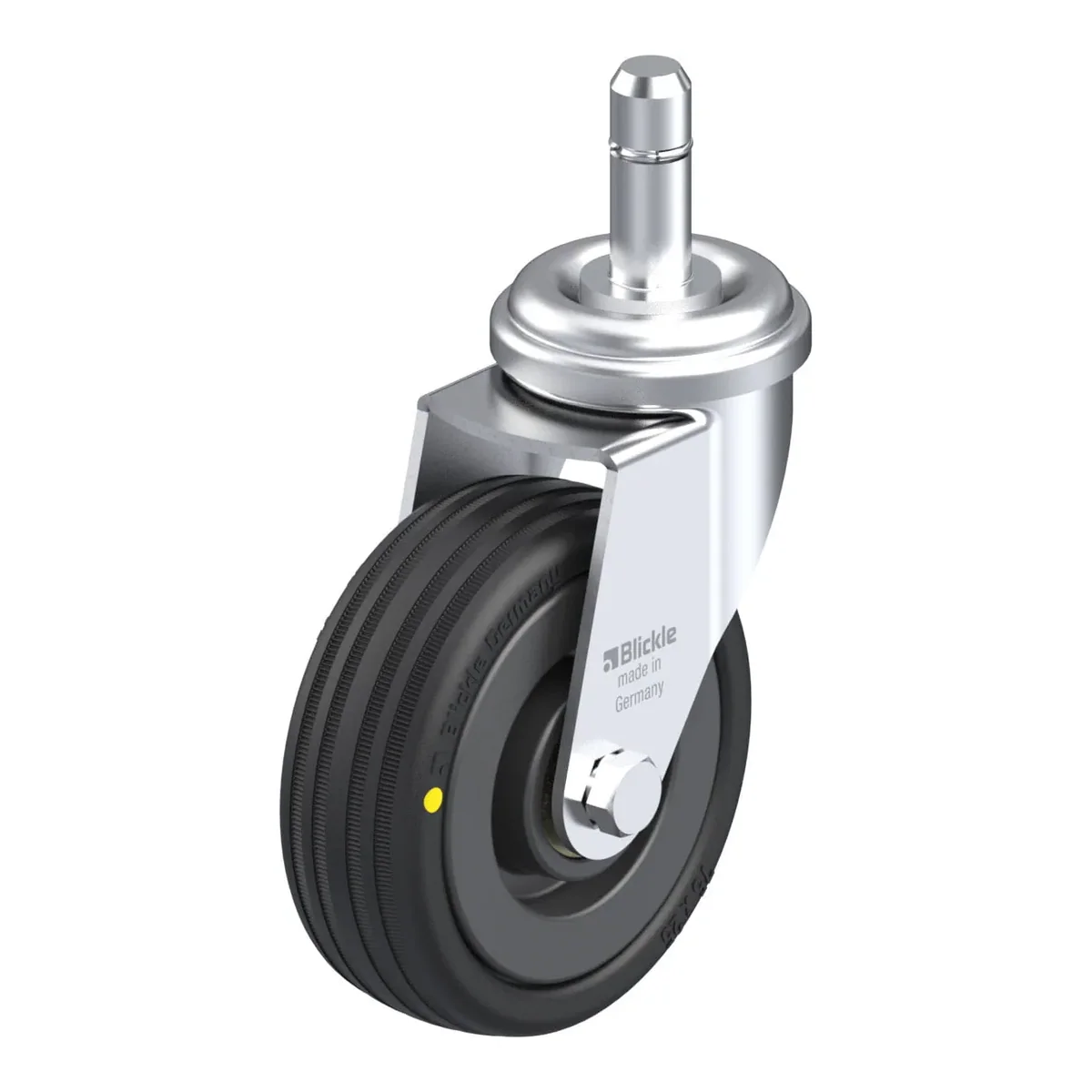

Okretni točkić, Blickle, Made in Germany
Ukratko: LRA-VPA 75K-EL-ES je okretni točkić Blickle promjera 75 mm, širine 25 mm, nosivosti 45 kg pri 4 km/h (statički 112.5 kg). Ukupna visina je 98 mm. Cijena je 31.41 KM s PDV-om.
Light duty swivel castor, with bolt hole fitting, with plug-in pin, wheel, with solid rubber tyres, with synthetic rim, electrically conductive
31.41 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 314666 |
|---|---|
| EAN | 4047526043636 |
| Promjer točka | 75 mm |
| Širina točka | 25 mm |
| Ukupna visina | 98 mm |
| Nosivost pri 4 km/h | 45 kg |
| Statička nosivost | 112.5 kg |
| Offset | 29 mm |
| ESD zaštita | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: high-quality solid rubber, hardness 80 Shore A, colour black
- rim: high-quality polypropylene, impact resistant, colour black, Electrically conductive, colour black, marking
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
