Šifra 856466

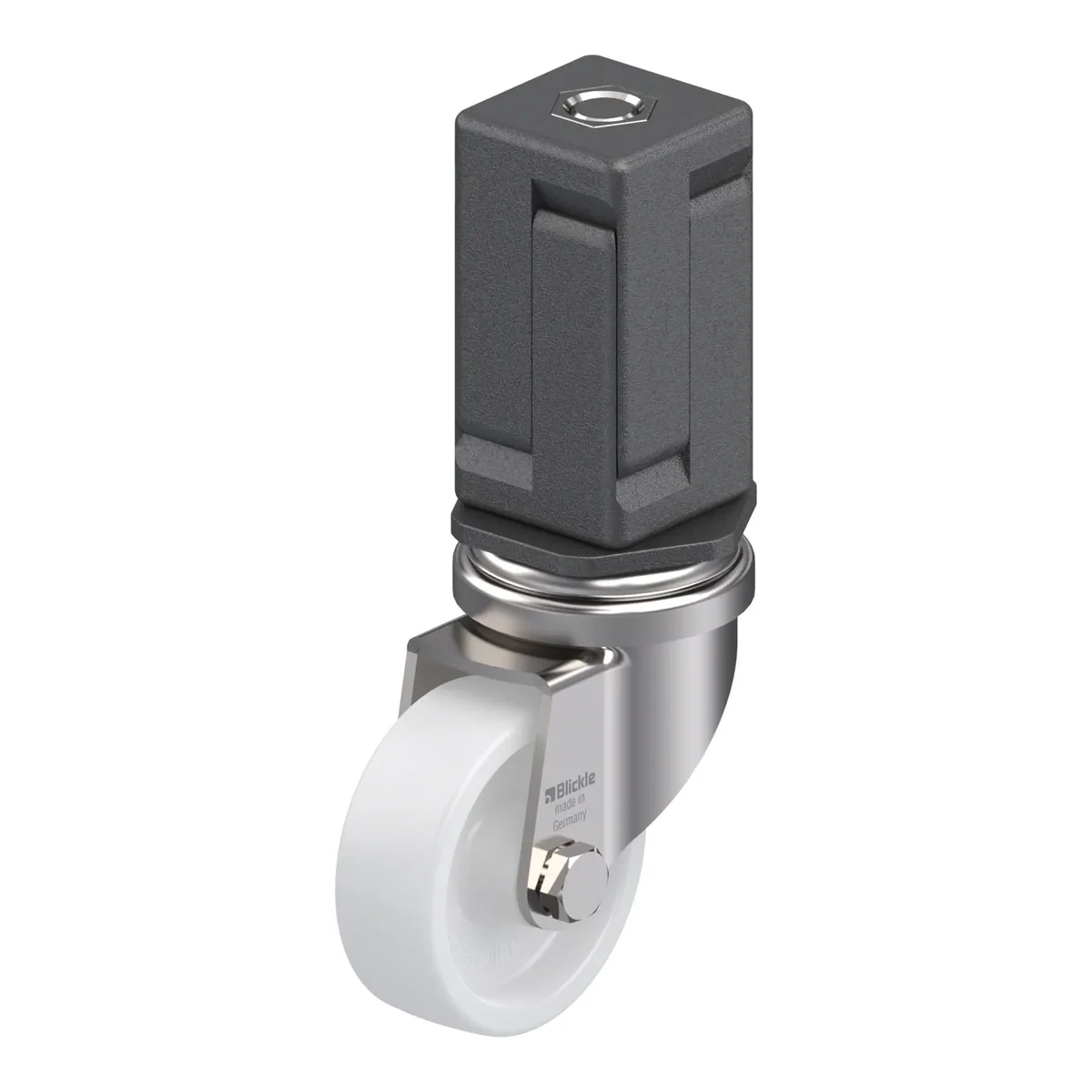

LRXA-PO 50G-EXV07
Okretni točkić, Blickle, Made in Germany
Ukratko: LRXA-PO 50G-EXV07 je okretni točkić Blickle promjera 50 mm, širine 18 mm, nosivosti 75 kg pri 4 km/h (statički 187.5 kg). Ukupna visina je 72 mm. Cijena je 69.23 KM s PDV-om.
Stainless steel light duty swivel castor, with bolt hole, with synthetic expander, nylon wheel
69.23 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 856466 |
|---|---|
| EAN | 4047526213121 |
| Promjer točka | 50 mm |
| Širina točka | 18 mm |
| Ukupna visina | 72 mm |
| Nosivost pri 4 km/h | 75 kg |
| Statička nosivost | 187.5 kg |
| Offset | 23 mm |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
Nosač
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
