Šifra 856415
LRXA-VPA 50G-FI-EXV05

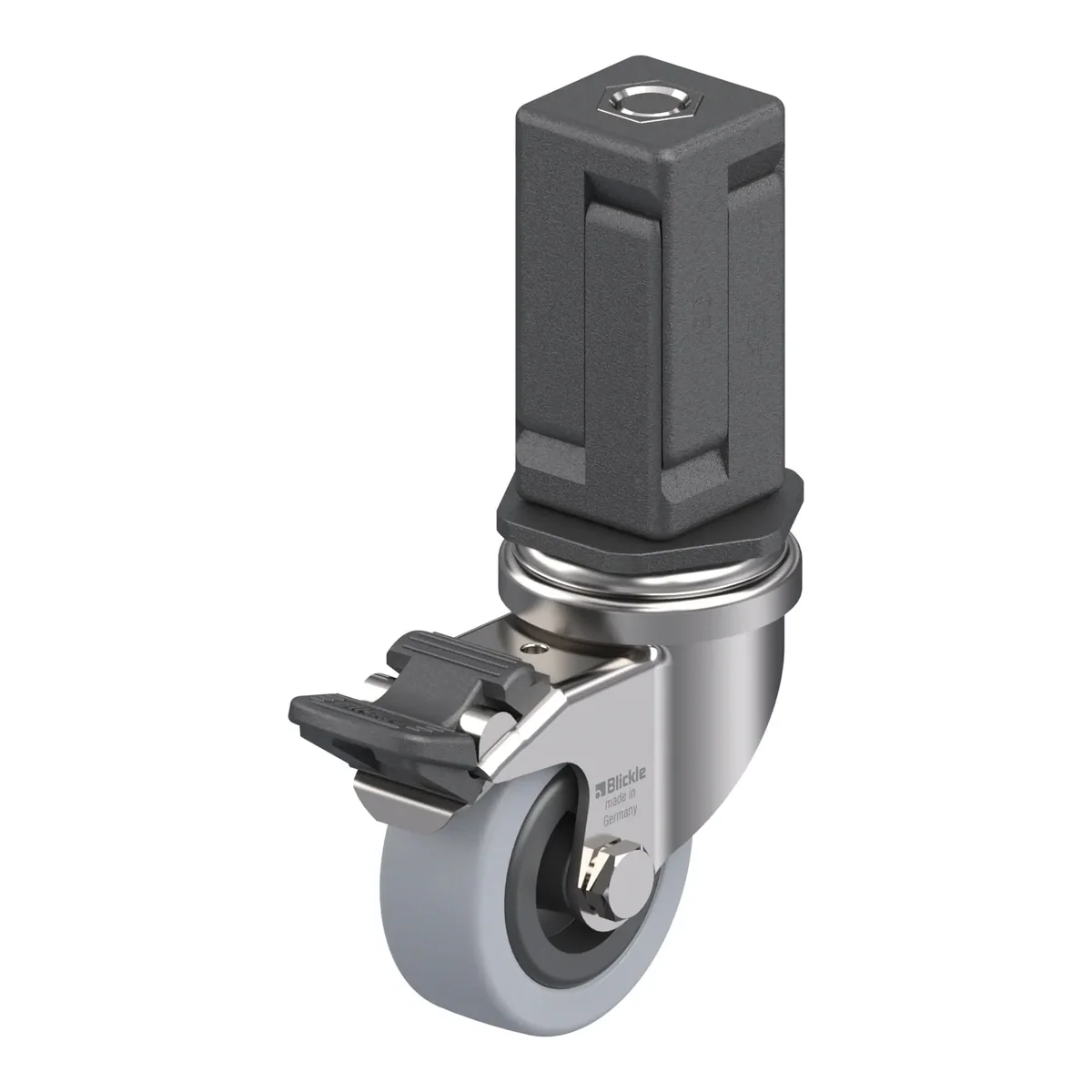

Okretni točkić, Blickle, Made in Germany
Ukratko: LRXA-VPA 50G-FI-EXV05 je okretni točkić Blickle promjera 50 mm, širine 18 mm, nosivosti 40 kg pri 4 km/h (statički 100 kg). Ukupna visina je 72 mm. Radi na temperaturi od -20 °C do 60 °C. Cijena je 89.63 KM s PDV-om.
Stainless steel light duty swivel castor, with bolt hole, with synthetic expander, with brake system 'stop-fix', wheel, with solid rubber tyres, with synthetic rim
89.63 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 856415 |
|---|---|
| EAN | 4047526212452 |
| Promjer točka | 50 mm |
| Širina točka | 18 mm |
| Ukupna visina | 72 mm |
| Nosivost pri 4 km/h | 40 kg |
| Statička nosivost | 100 kg |
| Offset | 24 mm |
| Tvrdoća gazišta | 80 Shore A |
| Radna temperatura | -20 °C do 60 °C |
| Težina | 0.3 kg |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
Nosač
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: high-quality solid rubber, hardness 80 Shore A, colour grey, non-marking, non-staining
- rim: high-quality nylon 6 or polypropylene in the electrically conductive version "-EL", impact resistant, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
