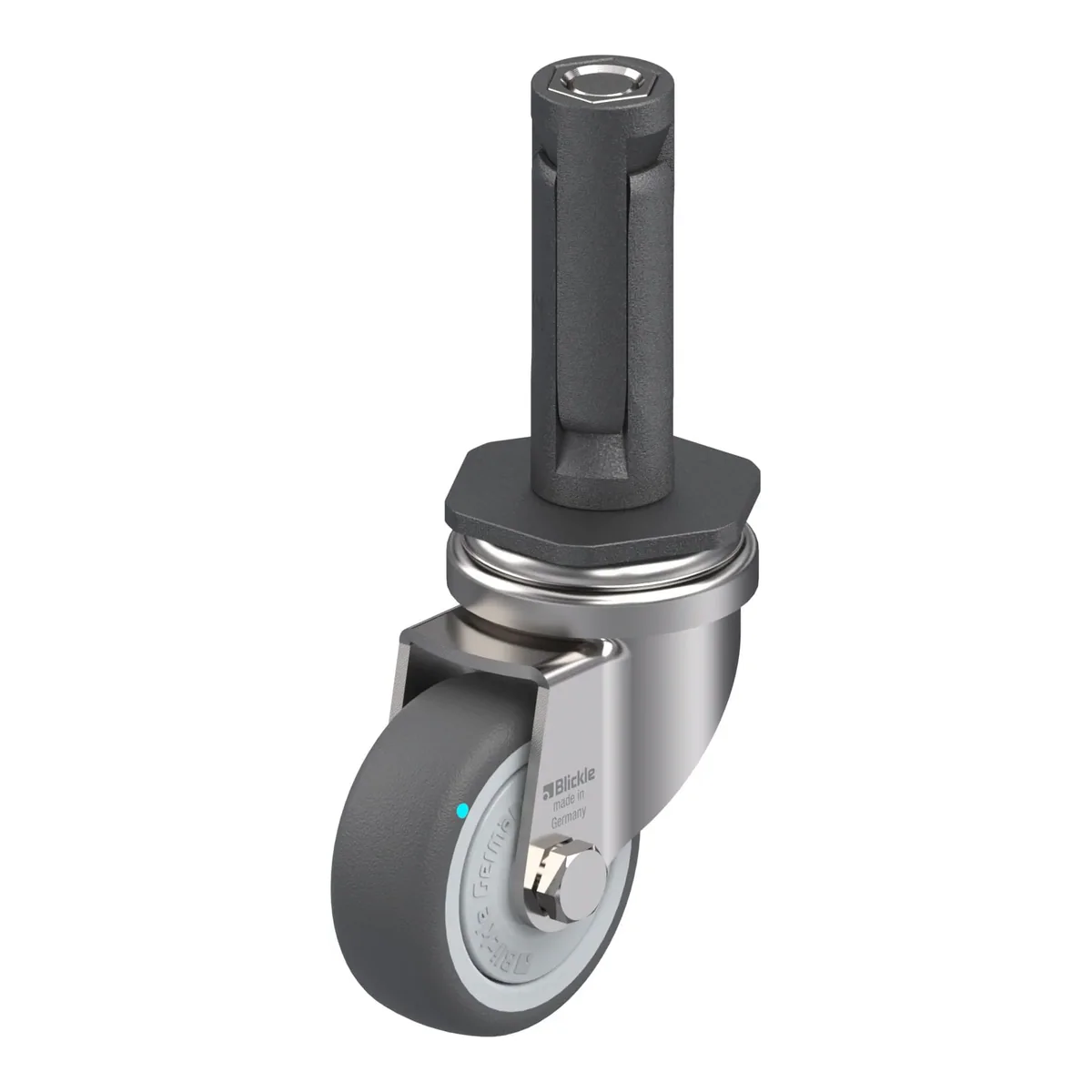

LRXA-PATH 50KFD-EXR02 – okretni točkić Blickle

Šifra 853339

LRXA-PATH 50KFD-EXR02

Okretni točkić, Blickle, Made in Germany

Ukratko: LRXA-PATH 50KFD-EXR02 je okretni točkić Blickle promjera 50 mm, širine 19 mm, nosivosti 75 kg pri 4 km/h (statički 187.5 kg). Ukupna visina je 72 mm. Cijena je 77.61 KM s PDV-om.

Stainless steel light duty swivel castor, with bolt hole, with synthetic expander, wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, large, with additionals ball bea ring seals

77.61 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla853339
EAN4047526204679
Promjer točka50 mm
Širina točka19 mm
Ukupna visina72 mm
Nosivost pri 4 km/h75 kg
Statička nosivost187.5 kg
Offset23 mm
Ne ostavlja tragoveda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • large thread guard, with additional, ball bearing seals
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
