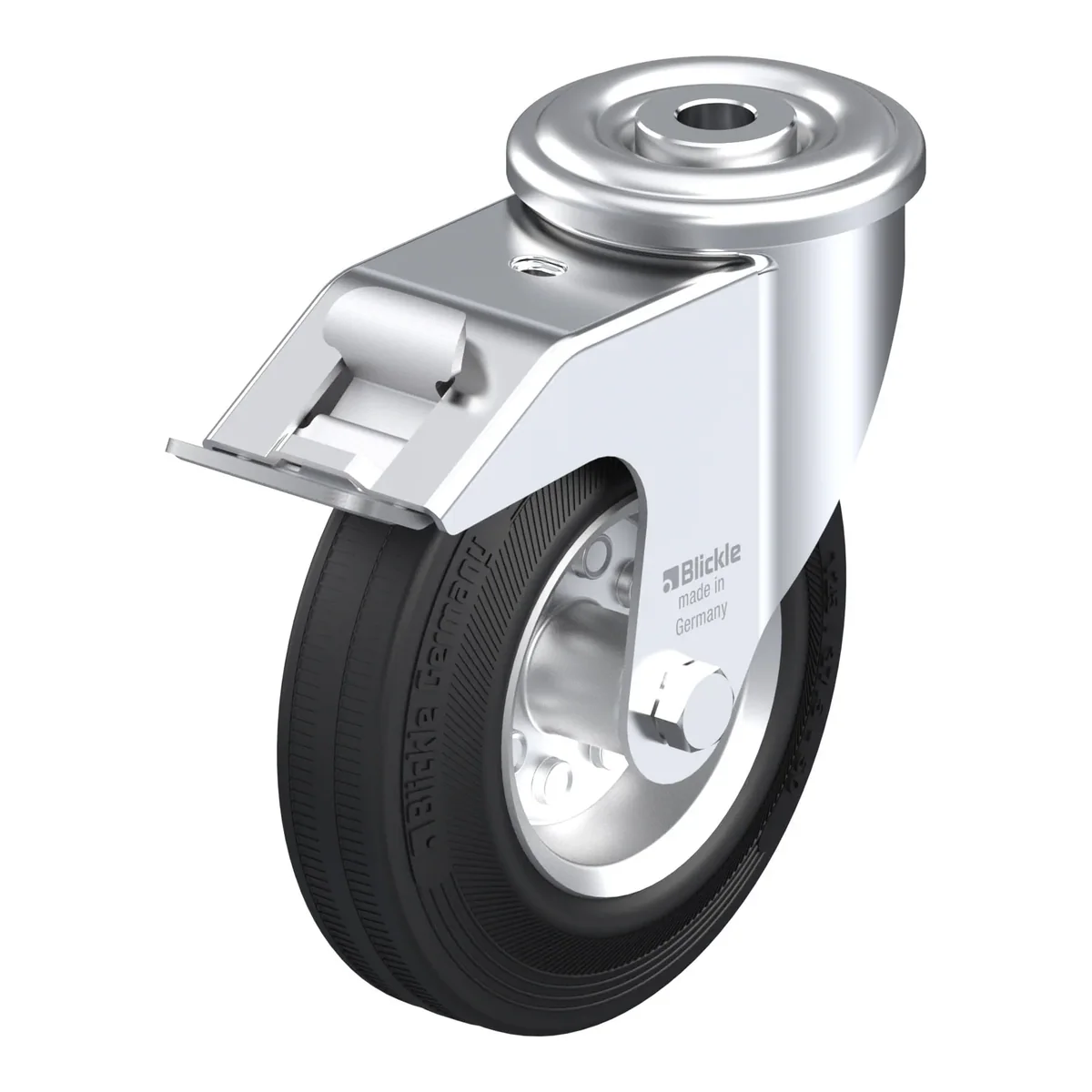

LIR-VEHI 125R-FI – okretni točkić Blickle

Šifra 763595

LIR-VEHI 125R-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: LIR-VEHI 125R-FI je okretni točkić Blickle promjera 125 mm, širine 37.5 mm, nosivosti 90 kg pri 4 km/h (statički 225 kg). Ukupna visina je 150 mm. Cijena je 100.75 KM s PDV-om.

Pressed steel swivel castor, with bolt hole, heat-resistant, with brake system 'stop-fix', Blickle TempLine® wheel Basic, with solid rubber tyres, with pressed steel rim, heat-resistant

100.75 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla763595
EAN4047526122140
Promjer točka125 mm
Širina točka37.5 mm
Ukupna visina150 mm
Nosivost pri 4 km/h90 kg
Statička nosivost225 kg
Offset40 mm

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • passivation may be altered slightly in high temperatures, corrosion protection will remain unaffected
  • double ball bearing in the swivel head
  • strong central kingpin
  • smooth rolling characteristic and low wear, increased service life
  • swivel head play is set specifically for high-temperature applications
  • highly heat-resistant grease

Točak

  • tyre: highly heat-resistant solid rubber, hardness 80 Shore A, colour black
  • rim: pressed steel, zinc-plated, blue-passivated, Cr6-free

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +200 °C
  • majority of tyre flattening recovers when in motion under load
  • passivation may be altered slightly in high temperatures, corrosion protection will remain unaffected
