Šifra 614032
LIR-PHN 81G

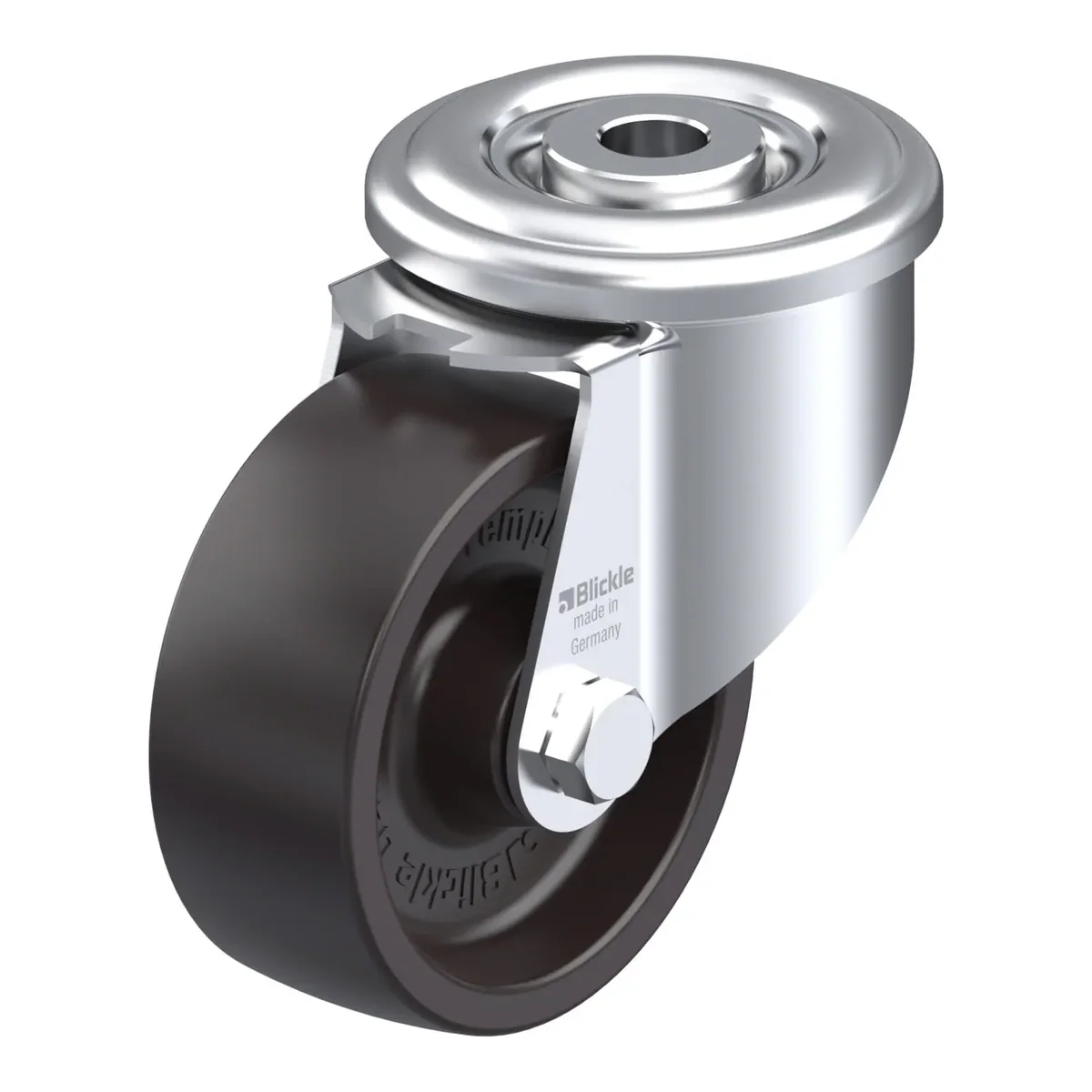

Okretni točkić, Blickle, Made in Germany
Ukratko: LIR-PHN 81G je okretni točkić Blickle promjera 80 mm, širine 32 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 102 mm. Cijena je 67.67 KM s PDV-om.
Pressed steel swivel castor, with bolt hole, heat-resistant, Blickle TempLine® Classic thermoset wheel, heat-resistant
67.67 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 614032 |
|---|---|
| EAN | 4047526614034 |
| Promjer točka | 80 mm |
| Širina točka | 32 mm |
| Ukupna visina | 102 mm |
| Nosivost pri 4 km/h | 100 kg |
| Statička nosivost | 250 kg |
| Offset | 38 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- passivation may be altered slightly in high temperatures, corrosion protection will remain unaffected
- double ball bearing in the swivel head
- strong central kingpin
- smooth rolling characteristic and low wear, increased service life
- swivel head play is set specifically for high-temperature applications
- highly heat-resistant grease
Točak
- phenolic resin, hardness 90 Shore D, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -35 °C to +260 °C
- wheels are only conditionally suitable for uneven floors and crossing thresholds
