Šifra 889519

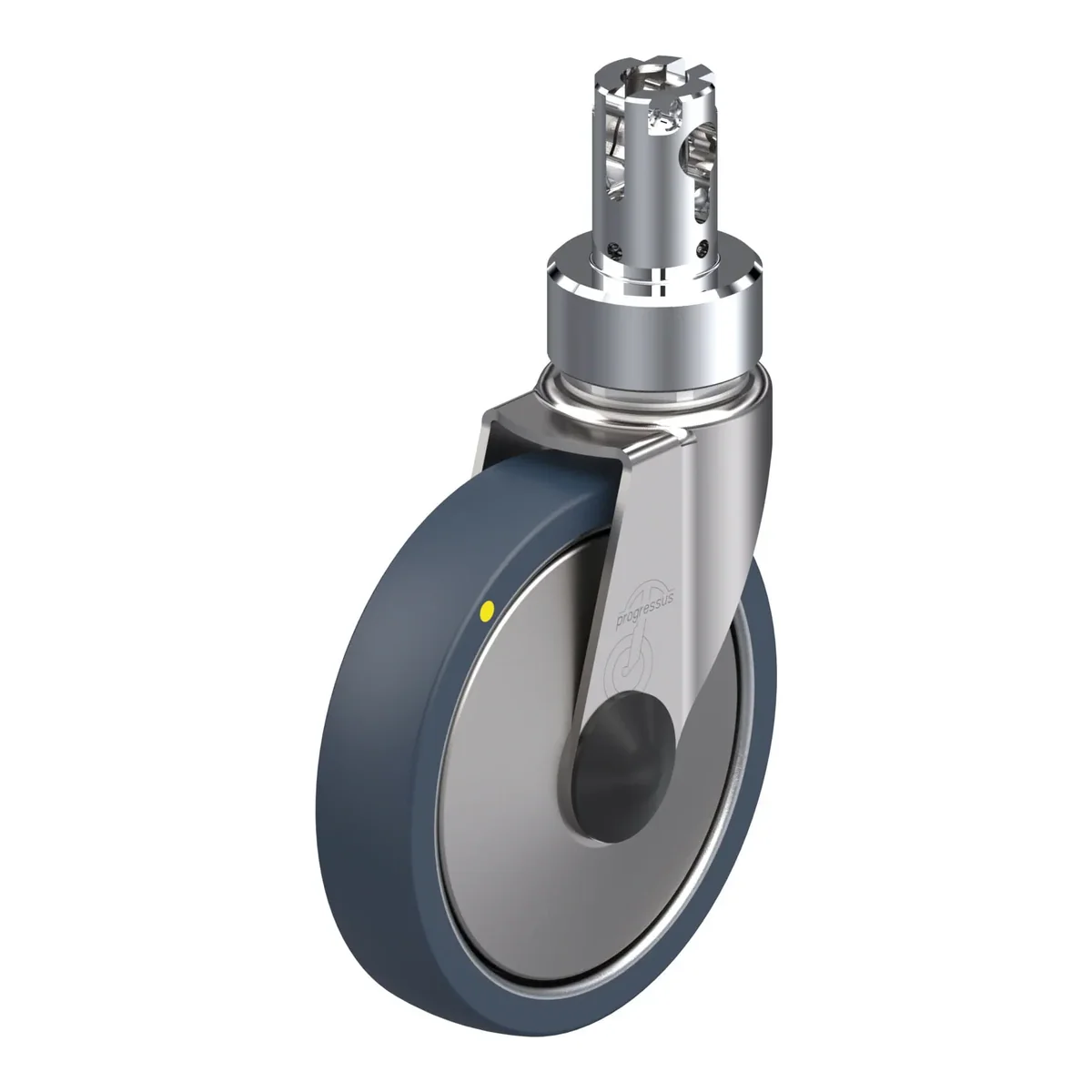

LPZ-ALEV 151XK-CS11RI2-EL-FA
Točkić, Blickle, Made in Germany
Ukratko: LPZ-ALEV 151XK-CS11RI2-EL-FA je točkić Blickle promjera 150 mm, širine 32 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 194 mm. Cijena je 909.05 KM s PDV-om.
Hospital bed castor, with stem fitting and integrated switching cam, with central and directional lock, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with aluminium wheel centre, with steel thread guard, electric ally conductive
909.05 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 889519 |
|---|---|
| EAN | 4047526302900 |
| Promjer točka | 150 mm |
| Širina točka | 32 mm |
| Ukupna visina | 194 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Offset | 43 mm |
| Otporan na koroziju | da |
| ESD zaštita | da |
Nosač
- high-quality chromium-nickel steel (1.4301 / AISI304), corrosion-resistant, vibration-ground finished
- four-point ball bearing for optimal absorption of vertical and horizontal forces
- hardened precision fork head made from corrosion-resistant steel (1.4034 / AISI420)
- excellent swivel characteristics, particularly resistant to impact and shocks
- stem fitting with hexagonal switching cams
- grease nipple
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 71 Shore A, colour black
- wheel centre: die-cast aluminium
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +134 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
