Šifra 889516
LPZ-ALEV 151XK-CS11-EL-FA
Točkić, Blickle, Made in Germany

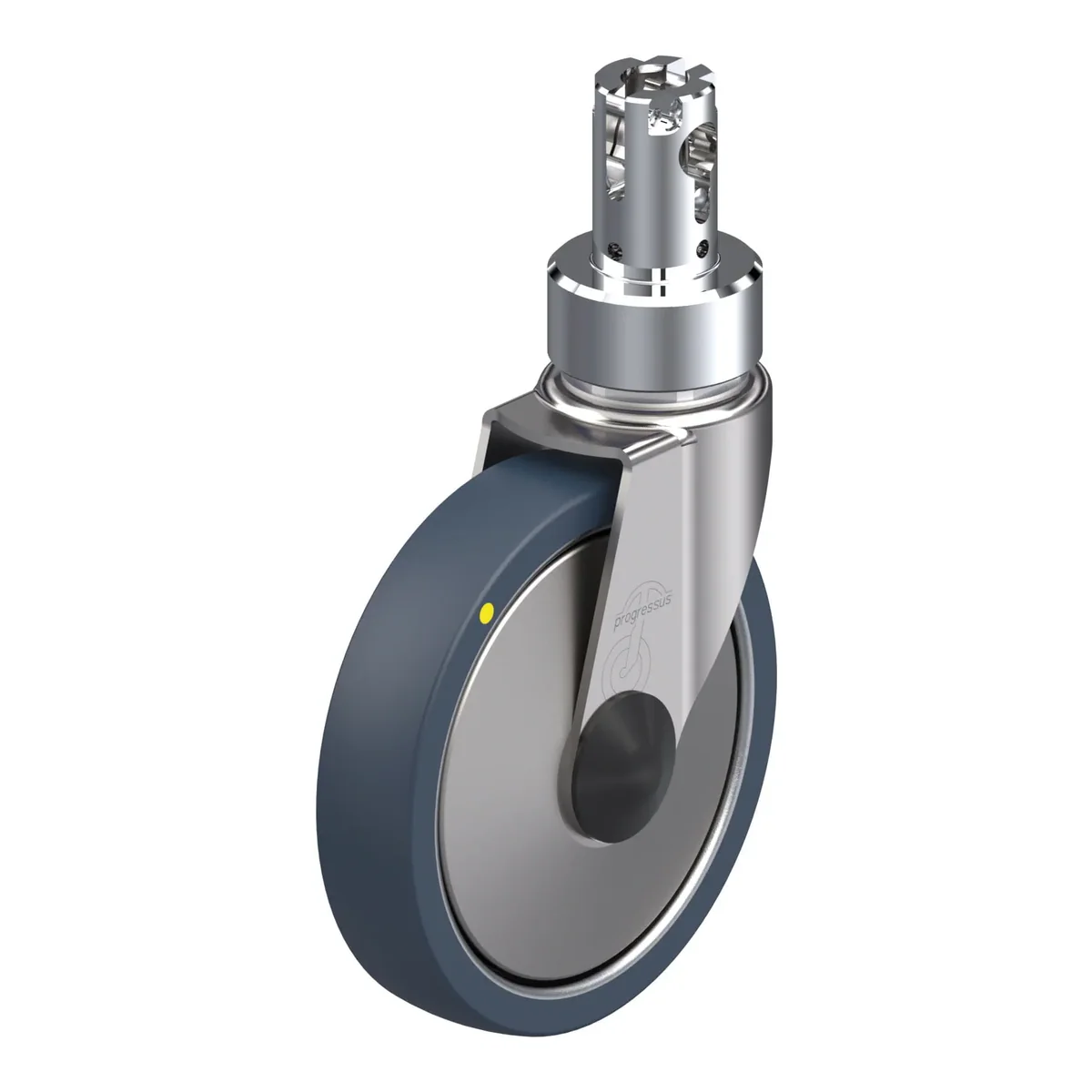

Ukratko: LPZ-ALEV 151XK-CS11-EL-FA je točkić Blickle promjera 150 mm, širine 32 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 194 mm. Cijena je 814.95 KM s PDV-om.
Hospital bed castor, with stem fitting and integrated switching cam, with central brake system 'central-stop', heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with aluminium wheel centre, with steel thread guard, electric ally conductive
814.95 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 889516 |
|---|---|
| EAN | 4047526302863 |
| Promjer točka | 150 mm |
| Širina točka | 32 mm |
| Ukupna visina | 194 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Offset | 43 mm |
| Otporan na koroziju | da |
| ESD zaštita | da |
Nosač
- high-quality chromium-nickel steel (1.4301 / AISI304), corrosion-resistant, vibration-ground finished
- four-point ball bearing for optimal absorption of vertical and horizontal forces
- hardened precision fork head made from corrosion-resistant steel (1.4034 / AISI420)
- excellent swivel characteristics, particularly resistant to impact and shocks
- stem fitting with hexagonal switching cams
- grease nipple
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 71 Shore A, colour black
- wheel centre: die-cast aluminium
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +134 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
