Šifra 754715

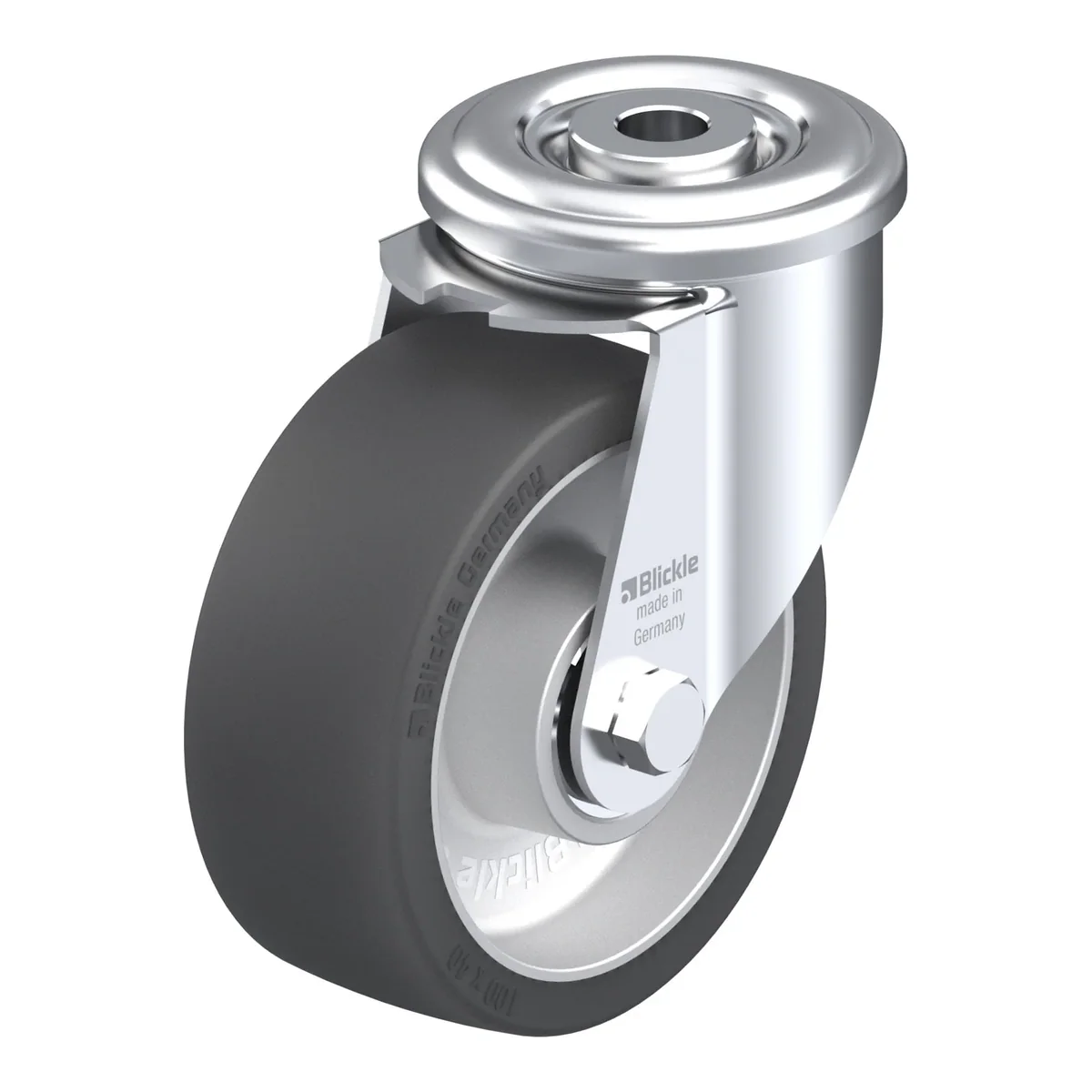

LIR-ALSI 100G
Okretni točkić, Blickle, Made in Germany
Ukratko: LIR-ALSI 100G je okretni točkić Blickle promjera 100 mm, širine 40 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 125 mm. Cijena je 98.39 KM s PDV-om.
Pressed steel swivel castor, with bolt hole, heat-resistant, Blickle TempLine® Comfort wheel, with silicone rubber tread, with aluminium wheel centre, heat-resistant
98.39 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 754715 |
|---|---|
| EAN | 4047526101466 |
| Promjer točka | 100 mm |
| Širina točka | 40 mm |
| Ukupna visina | 125 mm |
| Nosivost pri 4 km/h | 100 kg |
| Statička nosivost | 250 kg |
| Offset | 36 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- passivation may be altered slightly in high temperatures, corrosion protection will remain unaffected
- double ball bearing in the swivel head
- strong central kingpin
- smooth rolling characteristic and low wear, increased service life
- swivel head play is set specifically for high-temperature applications
- highly heat-resistant grease
Točak
- Tread: highly heat-resistant silicone rubber, hardness 75 Shore A, colour black,non-marking
- wheel centre: die-cast aluminium
Dodatne karakteristike
- chemical resistance to many aggressive substances
- operating temperature: -25 °C to +250 °C
- oven temperature temporarily up to +300 °C, wheel temperature must not exceed +250 °C
