Šifra 608224
GEVN 400/40H7

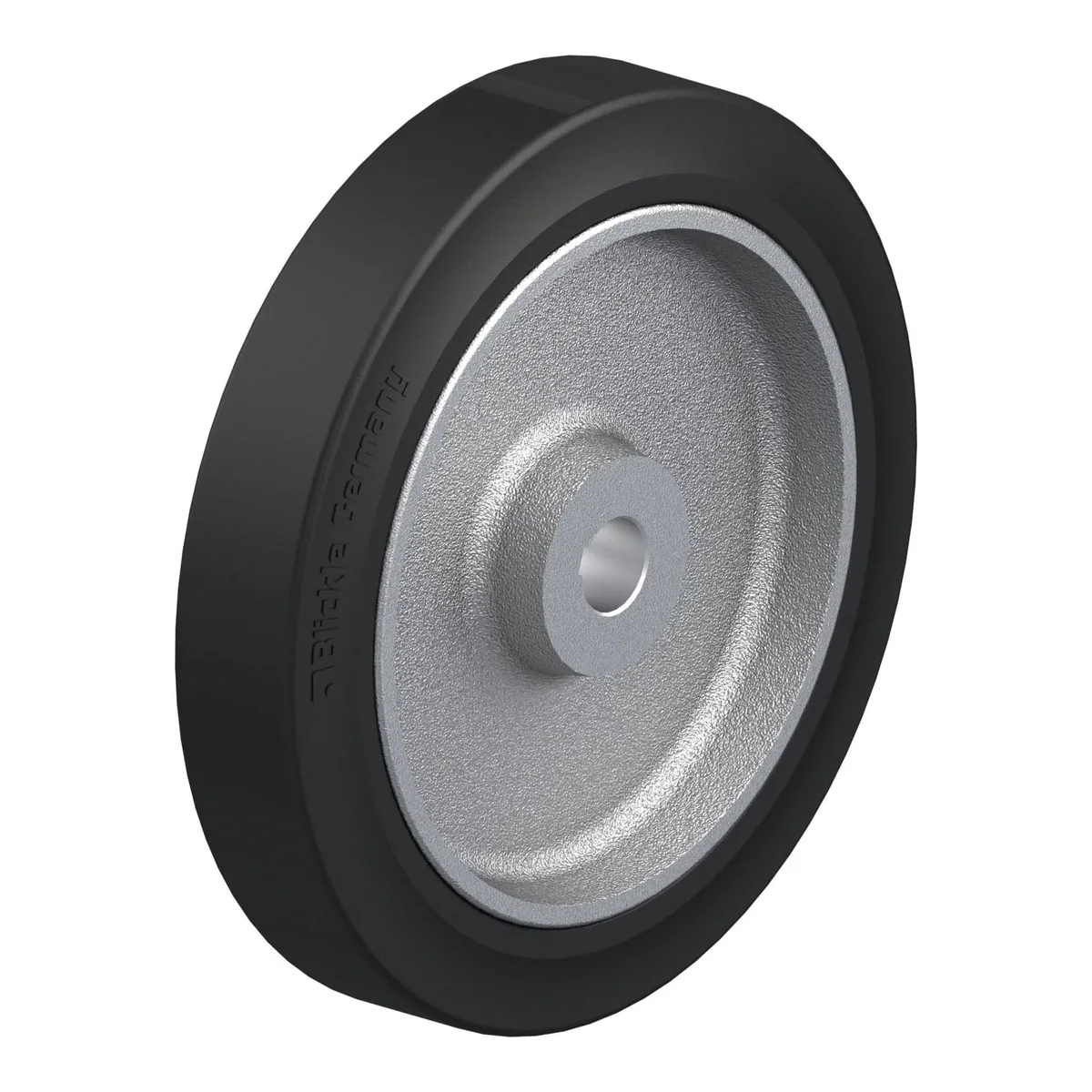

Pogonski kotač, Blickle, Made in Germany
Ukratko: GEVN 400/40H7 je pogonski kotač Blickle promjera 400 mm, širine 75 mm, nosivosti 1080 kg pri 4 km/h (statički 2700 kg). Radi na temperaturi od -30 °C do 80 °C. Cijena je 800.26 KM s PDV-om.
Heavy duty drive wheel, with hub keyway, with elastic solid rubber tyres, with cast iron wheel centre
800.26 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 608224 |
|---|---|
| EAN | 4047526608224 |
| Promjer točka | 400 mm |
| Širina točka | 75 mm |
| Nosivost pri 4 km/h | 1080 kg |
| Statička nosivost | 2700 kg |
| Promjer otvora osovine | 40 mm |
| Tvrdoća gazišta | 65 Shore A |
| Radna temperatura | -30 °C do 80 °C |
| Težina | 19.3 kg |
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -30 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
- wheel centre is approximately 4 mm wider than the specified wheel width
